Stovax Studio 22 - Manual (Page 11)

11
INSTALLATION INSTRUCTIONS

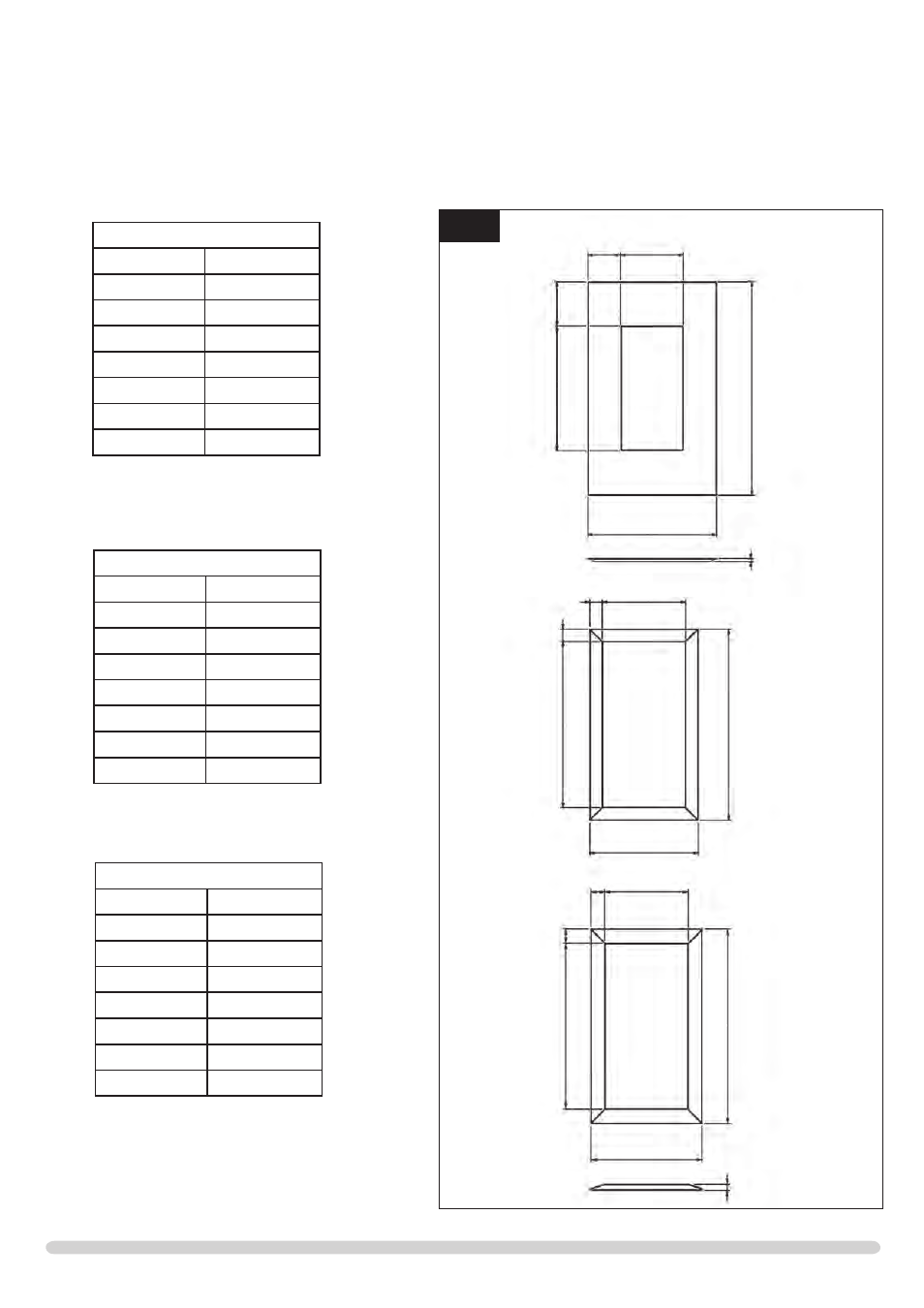

TECHNICAL SPECIFICATION
Steel Frame Dimensions
Dimension: Size (mm)
A 1350
B 675
C 846
D 320
E 177
F 237
G 25
Profil Frame Dimensions
Dimension: Size (mm)
A 1036
B 510
C 940
D 414
E 48
F 48
G 12.5
Bauhaus Frame Dimensions
Dimension: Size (mm)
A 1050
B 524
C 940
D 414
E 55
F 55
G 28
2
Steel
Profil
Bauhaus
AR1550
E D
F
C
A
B
G
E
D F
C
A
B
E
D
F
C A
B
G
