INSTALLATION INSTRUCTIONS
INSTALLATION
• Fit non-combustible board to the studwork above the
fire. This should extend a minimum of 400mm above the
appliance and a minimum of 50mm to each side
• Fit plasterboard to the remaining chimney breast front
• Connect the flue system and gas services using the
opening in the side of the chimney breast for access.
After commissioning, finish the sides of the chimney breast,

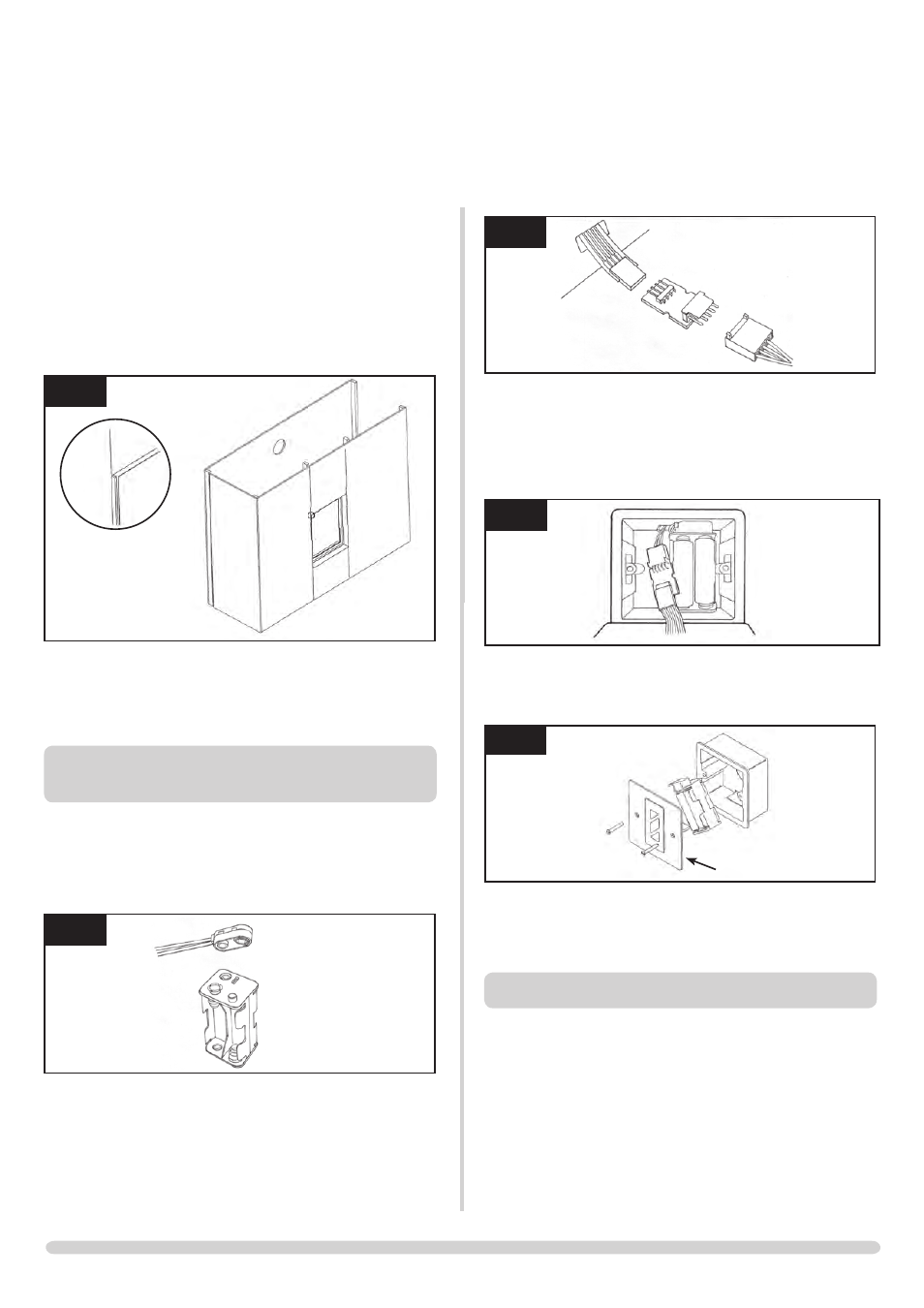

Diagram 24
24
AR1911
Detail A
A
The top of the chimney breast must have a minimum
200cm 2 vent.
• Apply a plaster finish to the chimney breast
7. ALL TyPES OF INSTALLATION INTO
STUD WORk - WALL BOX & BATTERIES
• Decide on the position for the wall box containing the
batteries and wall switch
• Connect the wire from the fire to the battery pack,
Diagram 25
25
AR1920
• Connect the wire from the fire to the touch pad/
connector, Diagram 26
26
AR1919
• Correctly position the four new AA size batteries
• Re-assemble the battery holder as shown in Diagram 27
• Ensure the touch pad cable is tucked to the left on fitting
the wall plate back onto the wall
27
AR1932
• Secure the wall plate with the touch pad attached to the
wall box, Diagram 28
28
AR1887
wall plate
PLEASE ENSURE NO WIRES ARE TRAPPED BEFORE
REPLACING THE WALL PLATE. THE TOUCH PAD LEAD
IS EASILy DAMAGED .
8. FLUE ASSEMBLy
Three types of flue terminal are available: rear flue,
horizontal and vertical.
NOTE: When switching from top to rear exit it is
important that you use the spigot supplied with the Rear
Flue kit.
