INSTALLATION INSTRUCTIONS
INSTALLATION

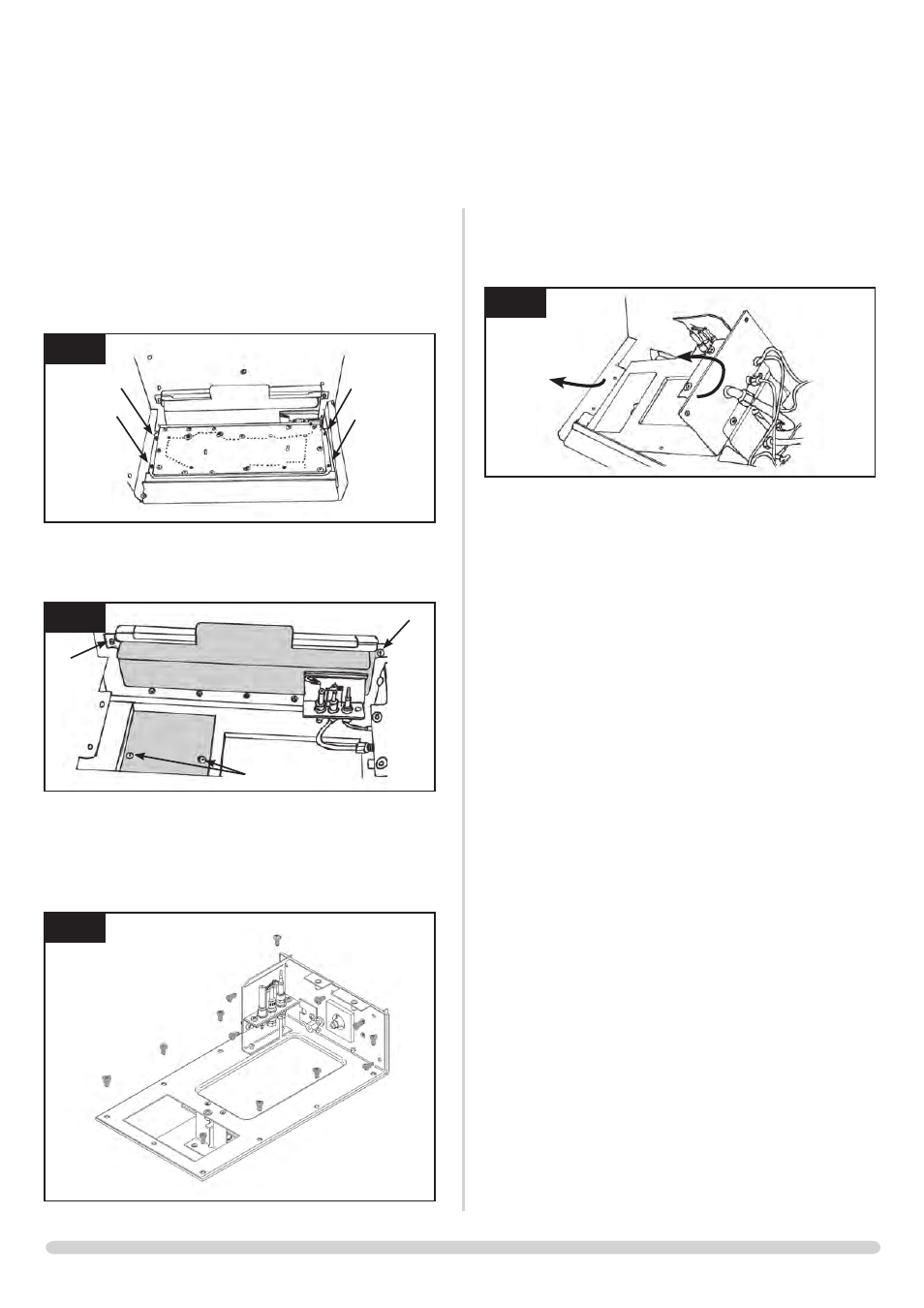

2.5 You can now remove the burner:
• Undo the four screws holding the burner tray in place
• Remove the burner
• Lift the left-hand side up and out
4
AR2117
2.6 • Undo the two screws in the rear air baffle to remove it,
Diagram 5, arrow A
5
AR2116
A
A
B
• Remove the two screws holding the access panel in
place, Diagram 5, arrow B
2.7 • Undo the 13 screws fixing the control unit in place
6
AR2135
With all screws removed:
• Slide the control unit to the left to clear the injector and
pilot pipework at the right side
• Lift the right-hand side up and out
7
AR2128
