7.3.4 VOLTAGE PHASE REVERSAL ACCURACY
The can detect voltage phase rotation and protect against phase reversal. To test the phase reversal element, perform the
following steps:
1. Alter the following setpoints:
S2 SYSTEM SETUP ÖØ VOLTAGE SENSING Ö VT CONNECTION TYPE: "Wye"
S2 SYSTEM SETUP ÖØ GEN. PARAMETERS ÖØ GENERATOR PHASE SEQUENCE: "ABC"
S3 DIGITAL INPUTS Ö BREAKER STATUS Ö BREAKER STATUS: "Breaker Auxiliary a"
S6 VOLTAGE ELEMENTS ÖØ PHASE REVERSAL Ö PHASE REVERSAL TRIP: "Unlatched"
S6 VOLTAGE ELEMENTS ÖØ PHASE REVERSAL ÖØ ASSIGN TRIP RELAYS: "1---"
2. Apply voltages as per the table below. Verify the operation on voltage phase reversal
7.3.5 INJECTION TEST SETUP #2
Setup the 489 device as follows for the GE Multilin HGF Ground Accuracy Test, Neutral Voltage (3rd Harmonic) Accuracy
Test, and the Phase Differential Trip Test.

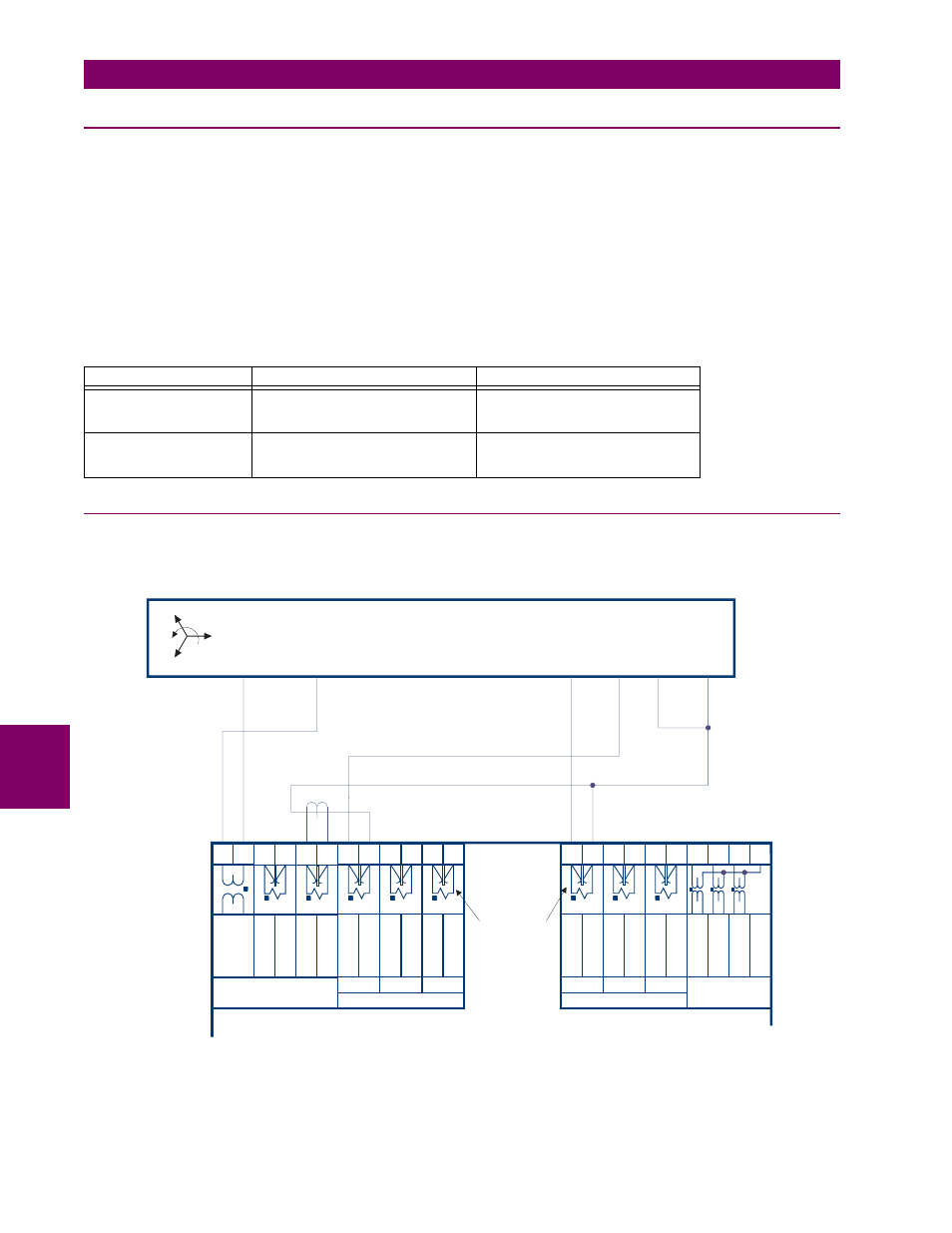

Figure 7–2: SECONDARY INJECTION SETUP #2
APPLIED VOLTAGE EXPECTED RESULT OBSERVED RESULT
Va = 120 V ∠0°
Vb = 120 V ∠120° lag
Vc = 120 V ∠240° lag
NO TRIP
Va = 120 V ∠0°
Vb = 120 V ∠240° lag
Vc = 120 V ∠120° lag
PHASE REVERSAL TRIP
