Fargo Electronics, Inc.

DTC400/DTC300/DTC300M Card Printer User Guide (Rev. 1.1)

5-59

Using the Defined Area Option (continued)

Step Procedure

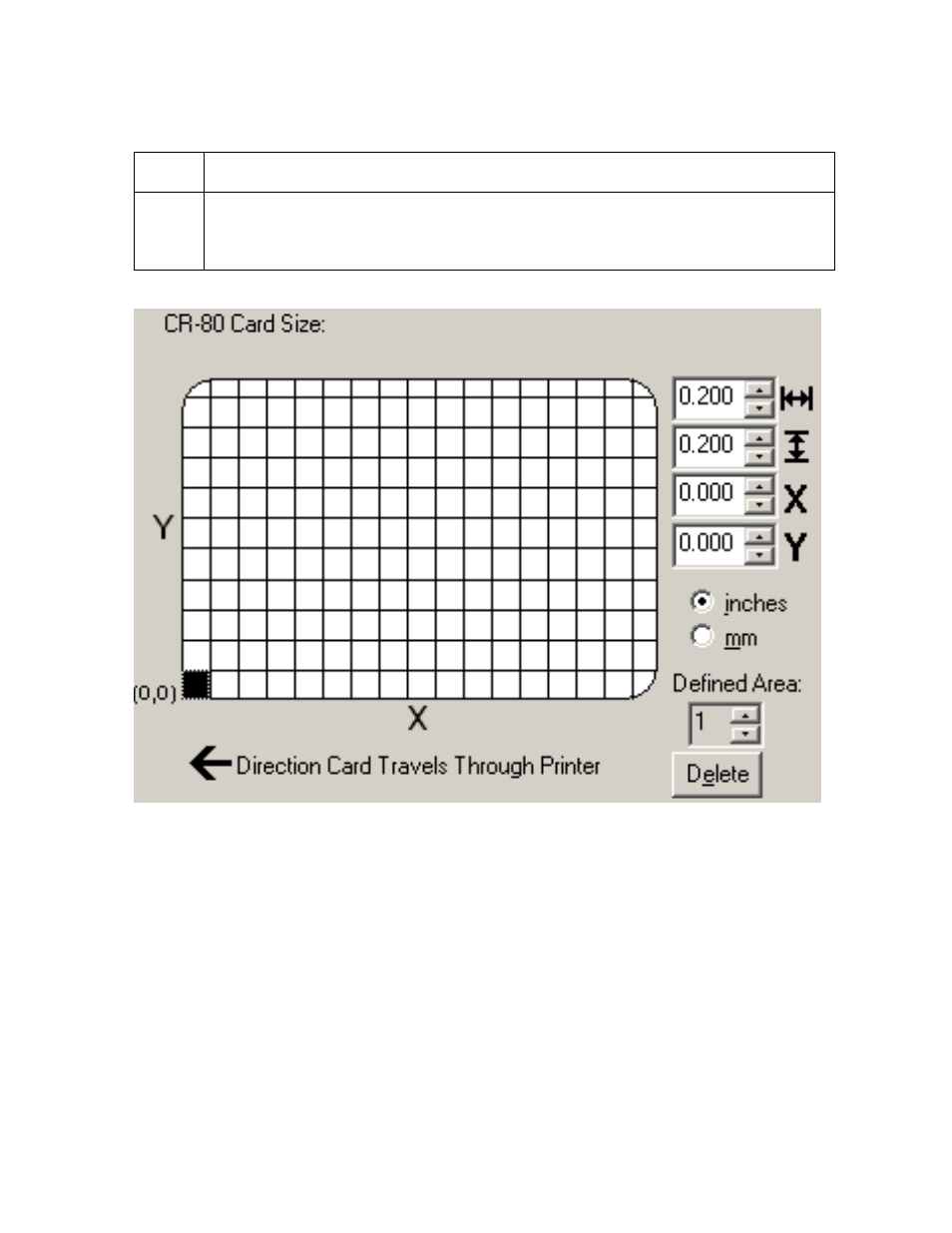

Measure from the lower left corner of the card up and over to the lower left
corner of for the defined area to begin and enter these values into the X and Y
boxes. (Note: The card grid lines are spaced at .2 inch / 5mm intervals.)

Continued on the next page
