RESTRICTED USE ONLY Fargo Electronics, Inc.
DTC400/DTC300/DTC300M Card Printer User Guide (Rev. 1.1) 1-3
DTC400/DTC300/DTC300M Card Printer Overview

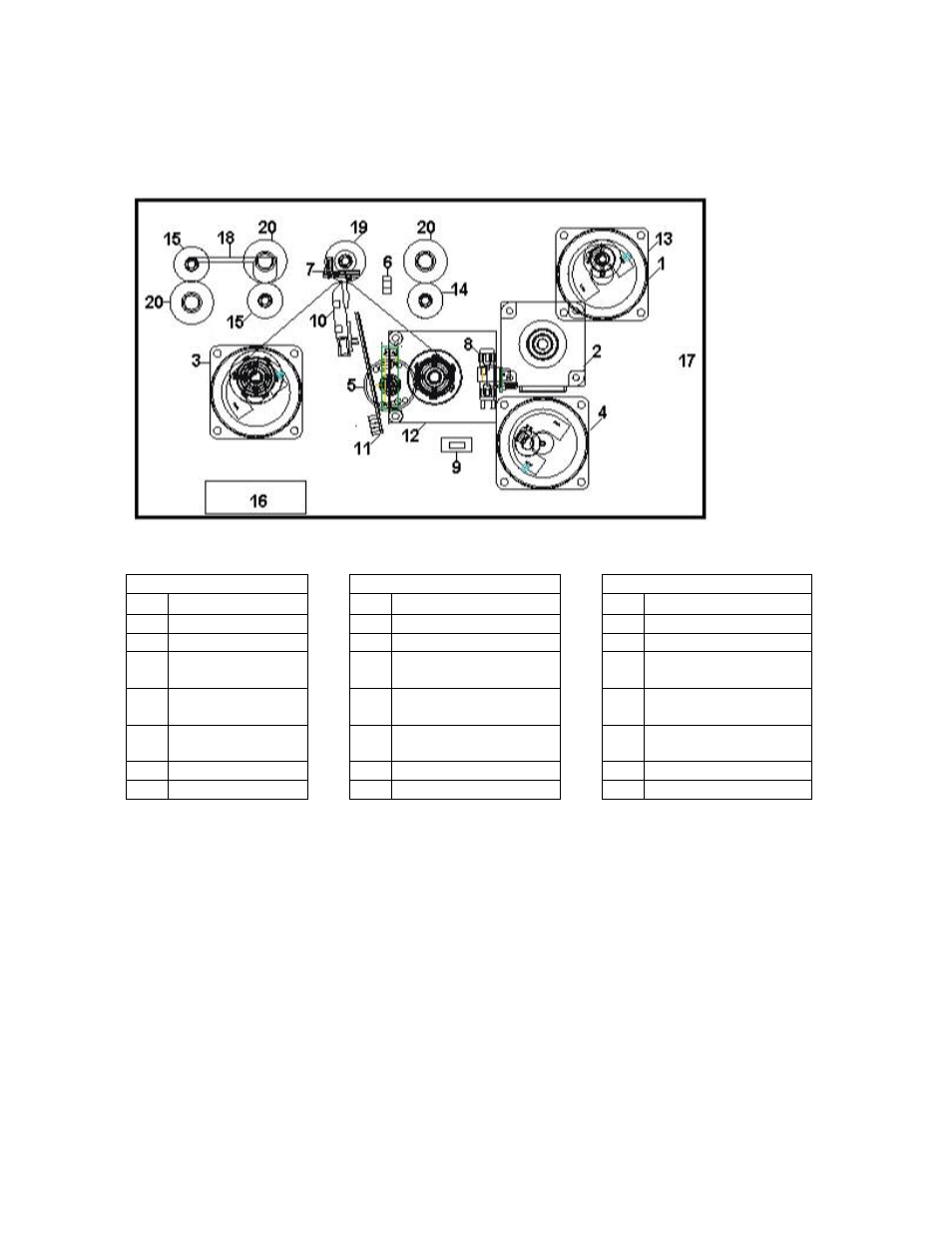

Reviewing the DTC400/DTC300/DTC300M Block Diagram
Motors Sensors Parts
1 Card Feed 6 Card Feed 13 Card Input Roller
2 Print Stepper 7 Ribbon Sensor 14 Cleaning Roller
3 Ribbon Drive 8 Ribbon Encoder 15 Card Feed Roller
4 Print Headlift 9 Headlift Sensor 16 Printhead Cooling
Fan
5 Ribbon Rewind
Motor 10 Printhead Thermistor 17 Card Input Hopper
11 Ribbon LED SNR 18 Magnetic Encoding
Head Module
12 RFID Antenna 19 Platen Roller
20 Pinch Roller
