Ethernet Connector Pinout (J32/J33)
A
Ethernet Connector Pinout (J32/J33)
The pinout and diagram for the GbE connectors are shown in Figure A-7.

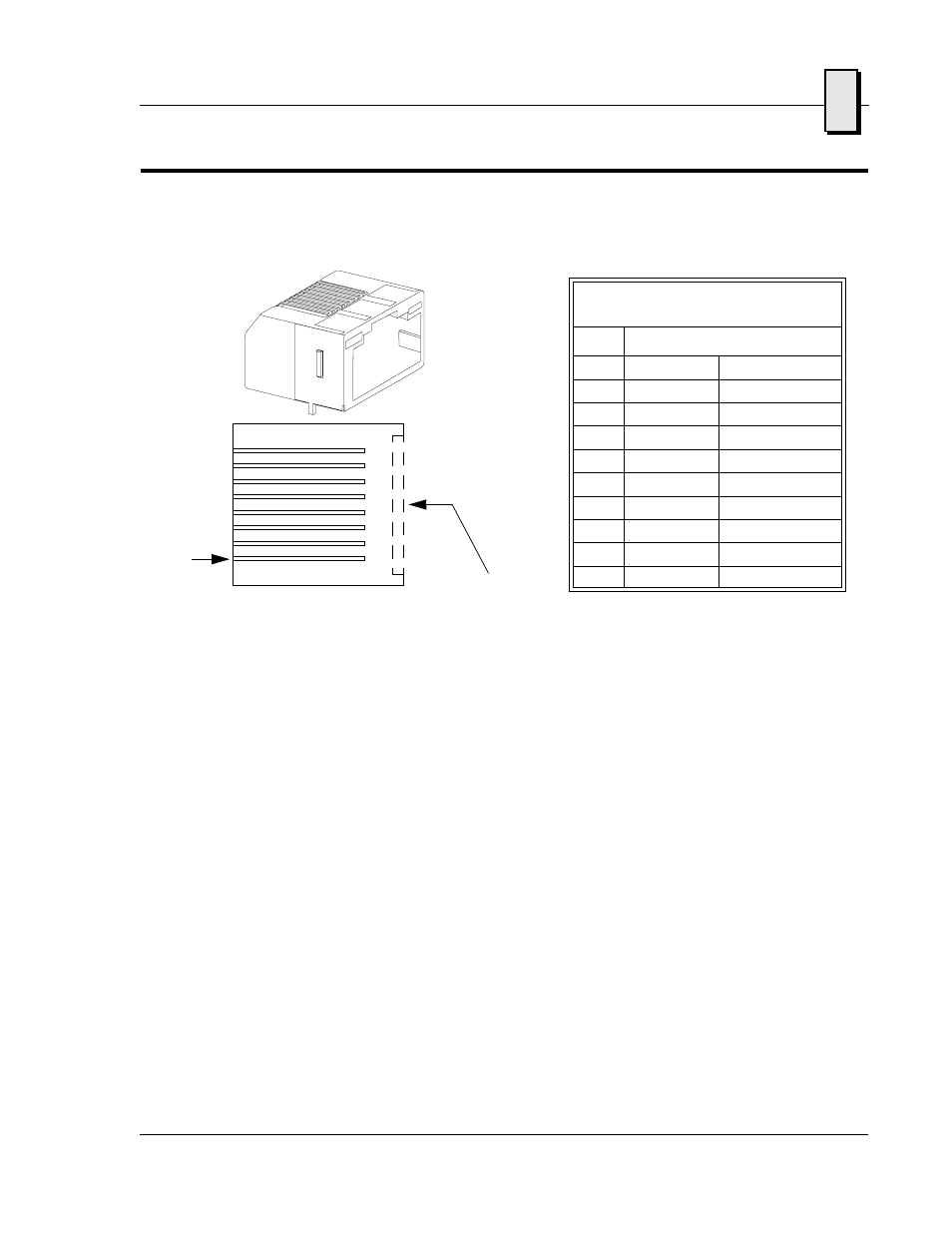

Figure A-7 GbE Connector and Pinout (J32/J33)
J32/J33 Ethernet Connectors
(10/100/1000 Mbit)
PIN
Signal Name
1
VCC
2.5VCC
2
MDI_0+
3
MDI_0-
4
MDI_1+
5
MDI_1-
6
MDI_2+
7
MDI_2-
8
MDI_3+
9
MDI_3-
10
GND
Ground
Connector Opening
Pin#1
Top View
