V7865 Product Manual
Serial Connector Pinout (J35)
A single serial port interface is provided on the front panel of the board using an RJ45
style shielded connector. See Figure on page 73
for its position on the board. This
connector meets the specifications for RS232 or RS422.

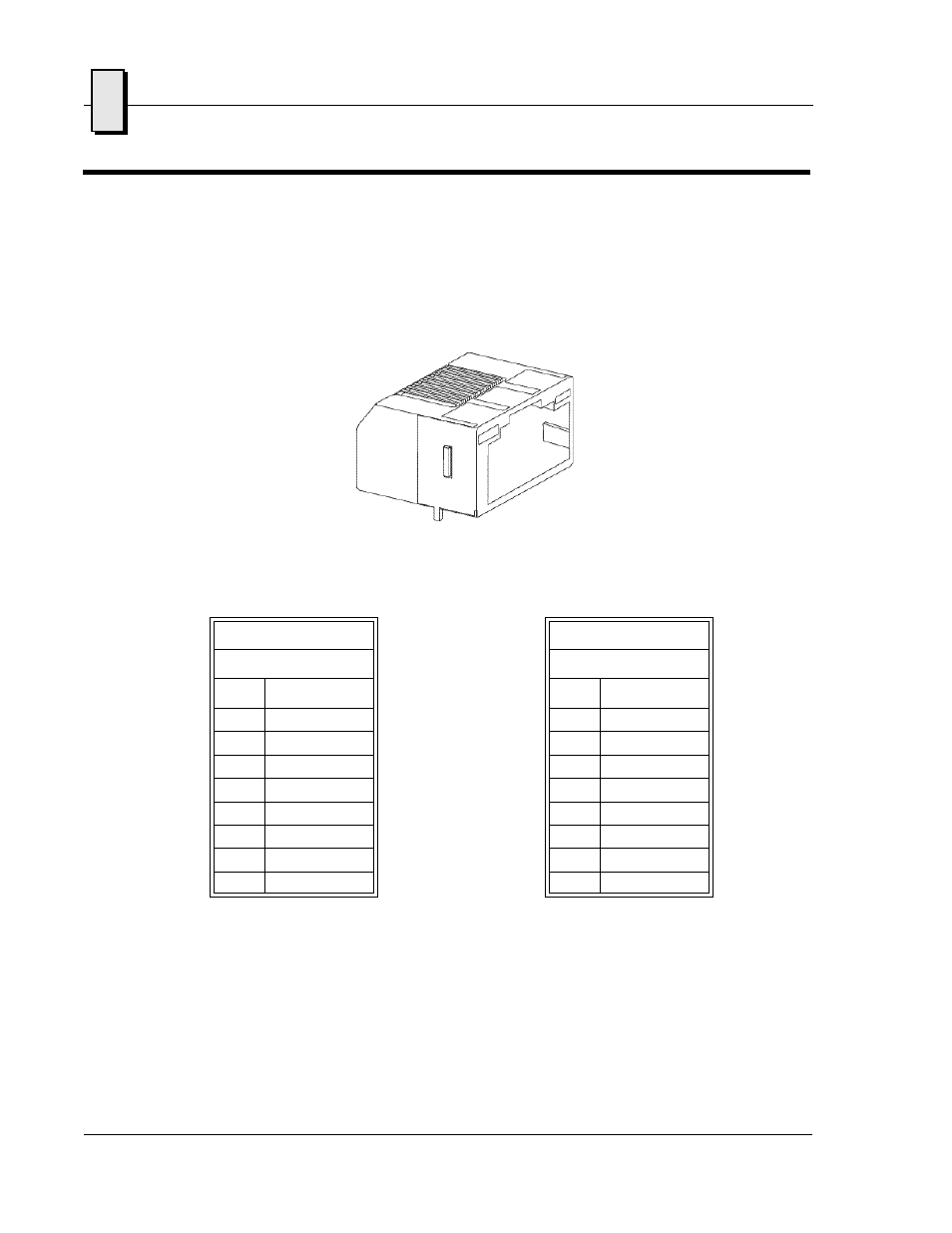

Figure A-4 Serial Connector Pinout (J35)
COM 1 Connector
RS232 (Default)
Pin
RS232 Signal
1
DCD
2
RTS
3
GND (jumper)
4
TXD
5
RXD
6
GND (jumper)
7
CTS
8
DTR
COM 1 Connector
RS422
Pin
Signal
1
RXD-
2
RTS+
3
TXD- (jumper)
4
TXD
5
RXD
6
GND (jumper)
7
CTS
8
DTR
