FUJITSU Image Scanner fi-6130 User Manual
Page 147
5.4 Replacing the Pick Roller

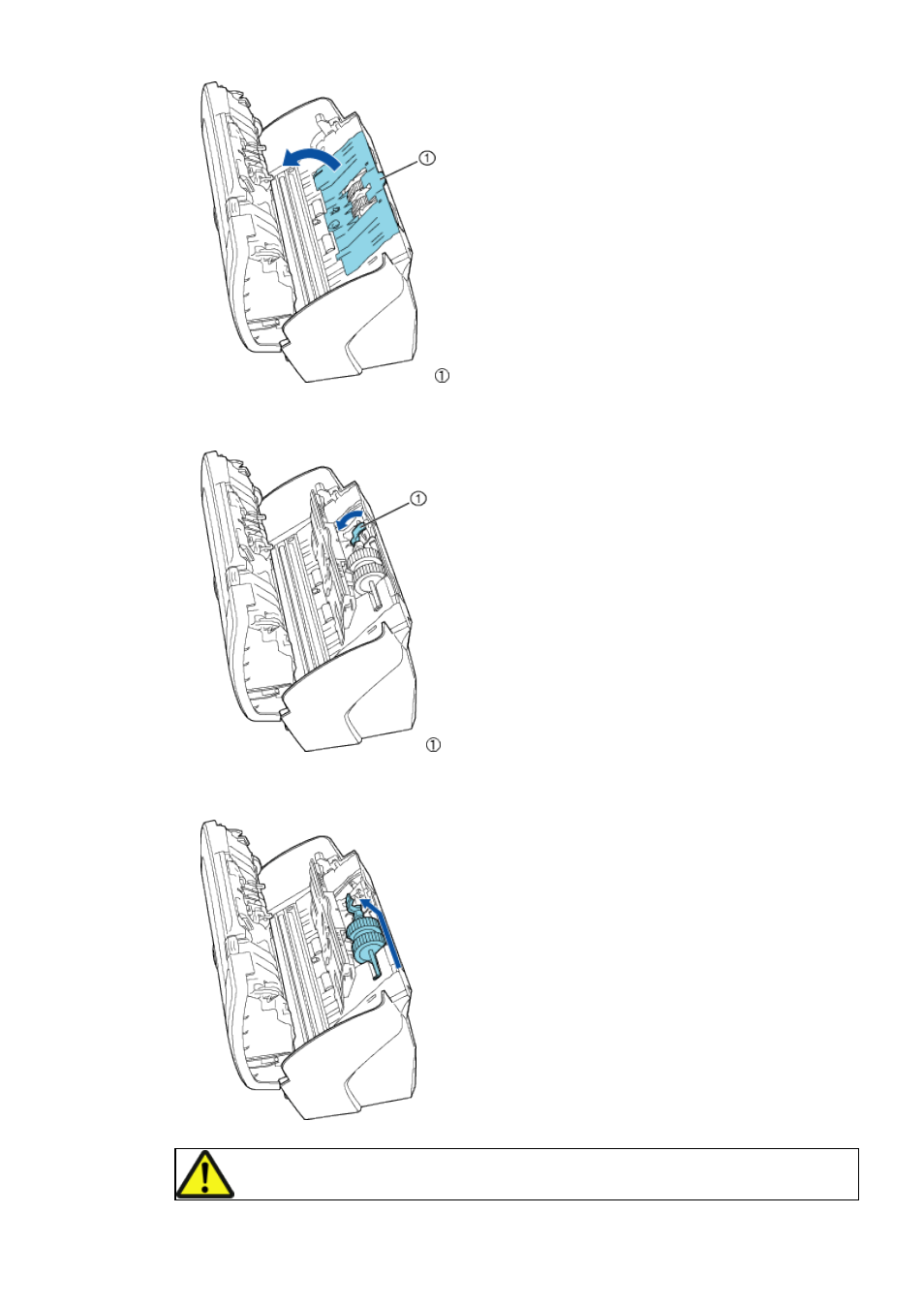

1) Use the handle in the middle of the sheet guide to open it as shown below.
Sheet guide
2) Rotate the Pick roller lever in the direction of the arrow.
Lever
3) Slide the Pick roller in the direction of teh arrow, and then lift it up to remove the shaft from the hole.
CAUTION
Be careful not to touch the gear beside the lever of the Pick Roller as grease is applied to it.
file:////10.232.227.50/Manual/fi-6130_6230_Lynx3L/OG/R02/02_081030/contents/EN/05/c05_04_01.htm (2/5) [2008/10/30 15:15:39]
