Fortress Wireless Access Bridge: Installation
18
2.4.4 Mast Mounting the Bridge
The Mast-Mounting Kit accommodates masts from 1.5" to 3" in
diameter.
To install the Mast-Mounting Kit:
1 Position the Bridge at the desired position on the mast, with
the Bridge’s underside facing toward the mast and the front
panel facing down, as shown in Figure 2.4
2 Sandwich the mast between the underside of the Bridge
and the mounting bracket, fitting the mast into the bracket’s
toothed cut-outs.
3 Place a split lock washer on each of the two hex bolts,
sliding them down to the head of the bolt.
4 Fit the bolts through the bolt holes in the mounting bracket
and then into the mounting holes in the underside of the
Bridge.
5 Tighten the bolts securely, until the split lock washers are
flattened between the bolt heads and the mounting bracket.

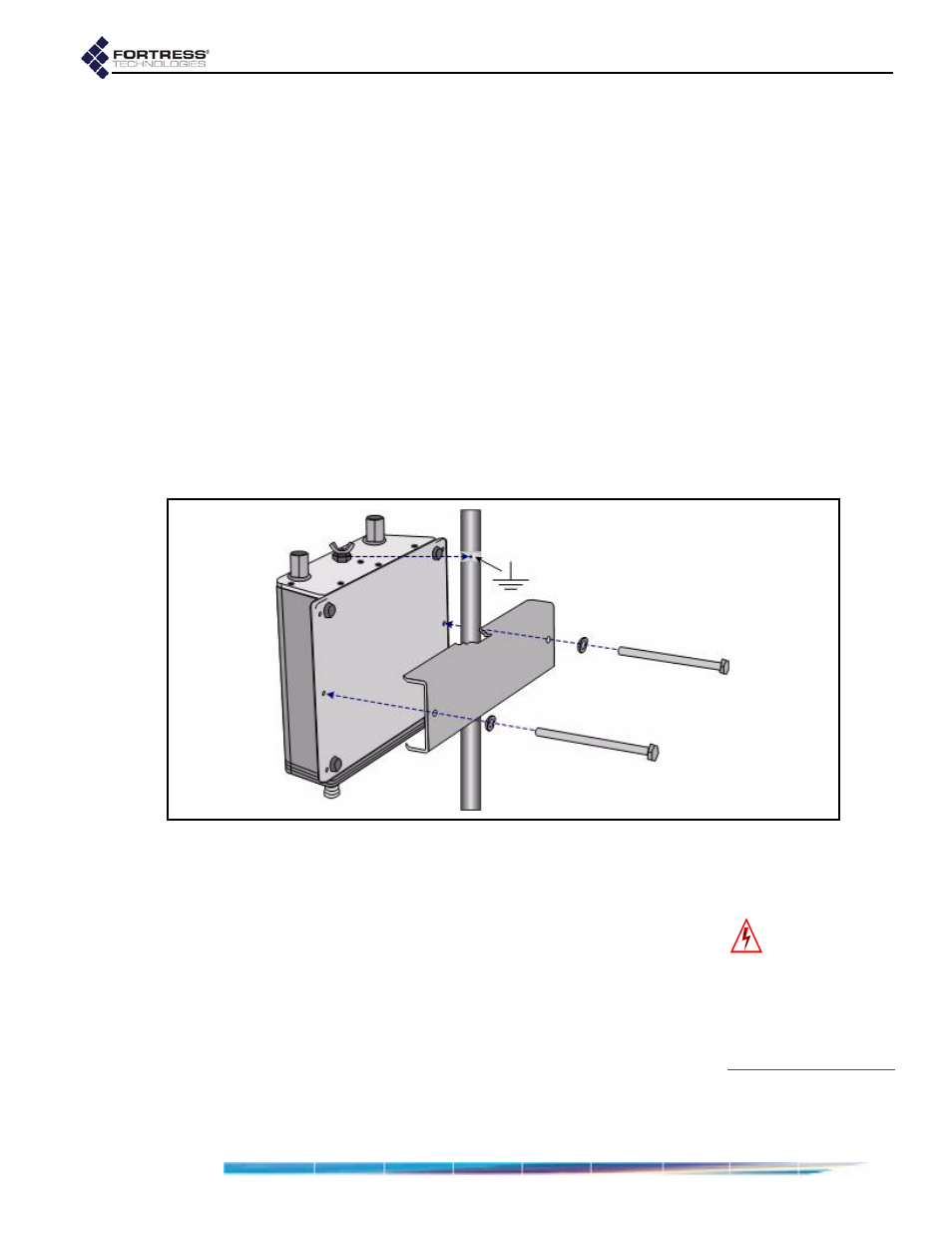

Figure 2.4 Attaching the Mast-Mounting Bracket and Grounding Stud
2.4.5 Reconnecting the Bridge
for Outdoor Operation
WARNING: To
comply with FCC
rules, antennas must be
professionally installed.
Improperly grounded
outdoor antennas pose a
particularly serious
safety hazard.
Review the Radio Frequency Safety Requirements (Section
2.2.4) before installing or operating Bridge radios.
1 Connect the rear-panel grounding stud (shown in Figure
2.4) to protective earth ground with a 20 gauge (minimum)
cable.
2 Connect a waterproof, standard 802.11a/b/g-capable
antenna with an N-type male connector to antenna port 1
(
ANT1 ).
3 Connect an antenna cable with a N-type male connector
between antenna port 2 (
ANT2 ) and a high-gain
