Fortress Bridge: Fortress Security System Overview
116
the wide side up, pins are numbered from right to left, top to
bottom.

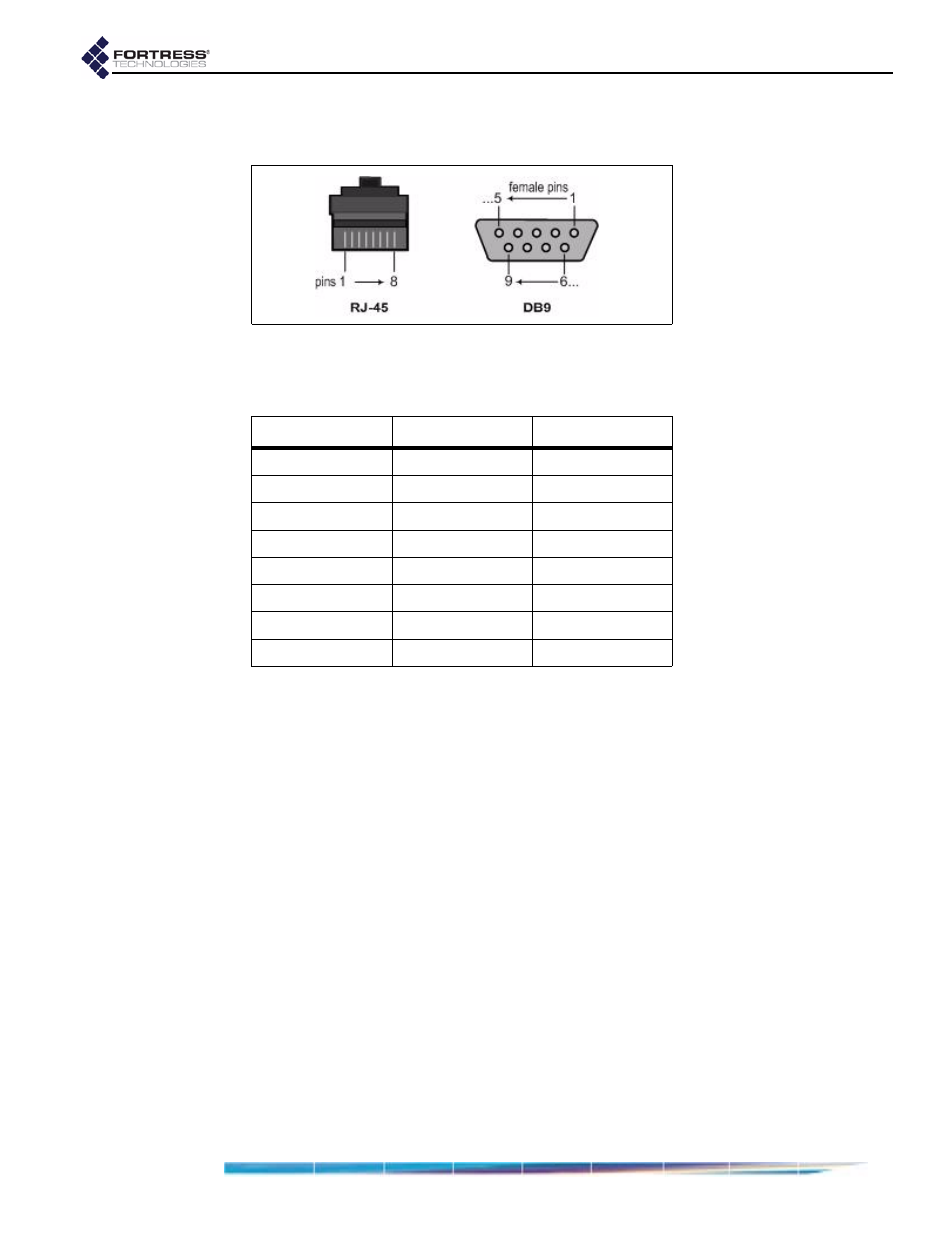

Figure 7.1 RJ-45 and DB9 Pin Numbering
Table 7.1 shows the adapter pin-outs.
Table 7.1. RJ-45-to-DBP Adapter Pin-Outs
RJ-45 pin DB9 pin standard color
1 - grey
2 4 brown
3 3 yellow
4 - green
5 5 red
6 2 black
7 6 orange
8 8 blue
