4-2

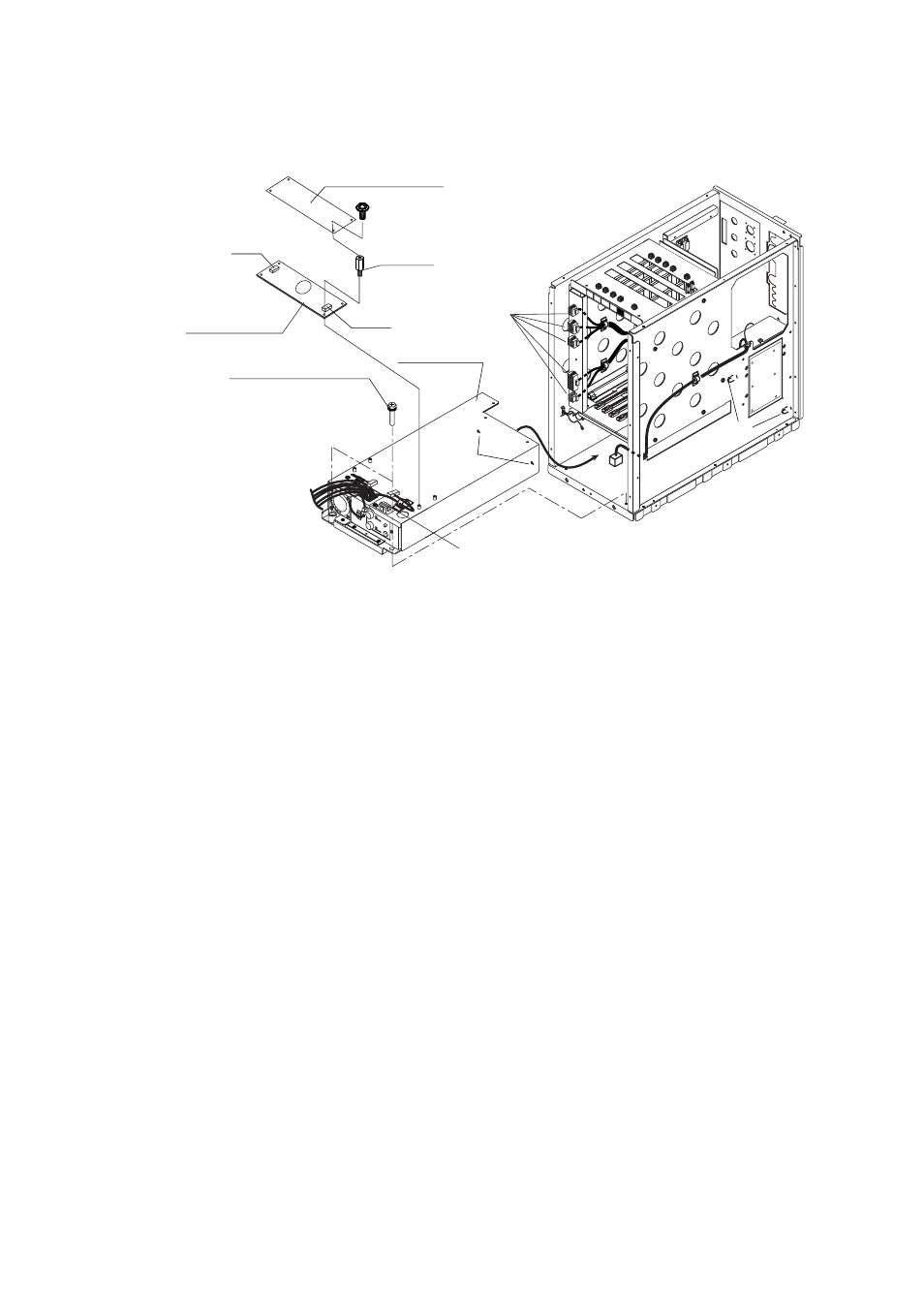

2. Remove two upset screws, detach the plugs J503, J502, J501, J504, J506
and J507, thus pull out the power block.
IFES
SCAN
SCAN2
DU AL
DCON
Power Block
VH4P
VH5P
Upset screws
M5x25 SUS 2 pcs.
Protection sheet
Power supply
pcb
Spacer
Detach J503, J502,
J501, J504 and
J506.
Detach J507.
Hole
Pin
3. Fix the power supply pcb (supplied) to the power block with spacers
(supplied).
4. Connect two VH connectors (provided on the power block) to the power
supply pcb.
5. Put protection sheet (supplied) on the power supply pcb and fasten it with
four screws.
6. Reattach the power block.
