5. Select ! or " and then press the [MENU] key several times to set the ship’s
length (15 to 150 m).
6. Select QUIT to finish the setting.
7. Set the SHIP’S WIDTH (5 to 30 m), TD POSITION 1 (5 to 50 m) or TD
POSITION 2 (-10.0 to 10.0 m) similarly.
TD POSITION 1: Set the transducer’s distance from the bow.
TD POSITION 2: Set the transducer’s distance from the keel. Select the [+] for
starboard, [-] for port.
8. Select QUIT at the top of the menu screen and press the [MENU] key to
close all menus.

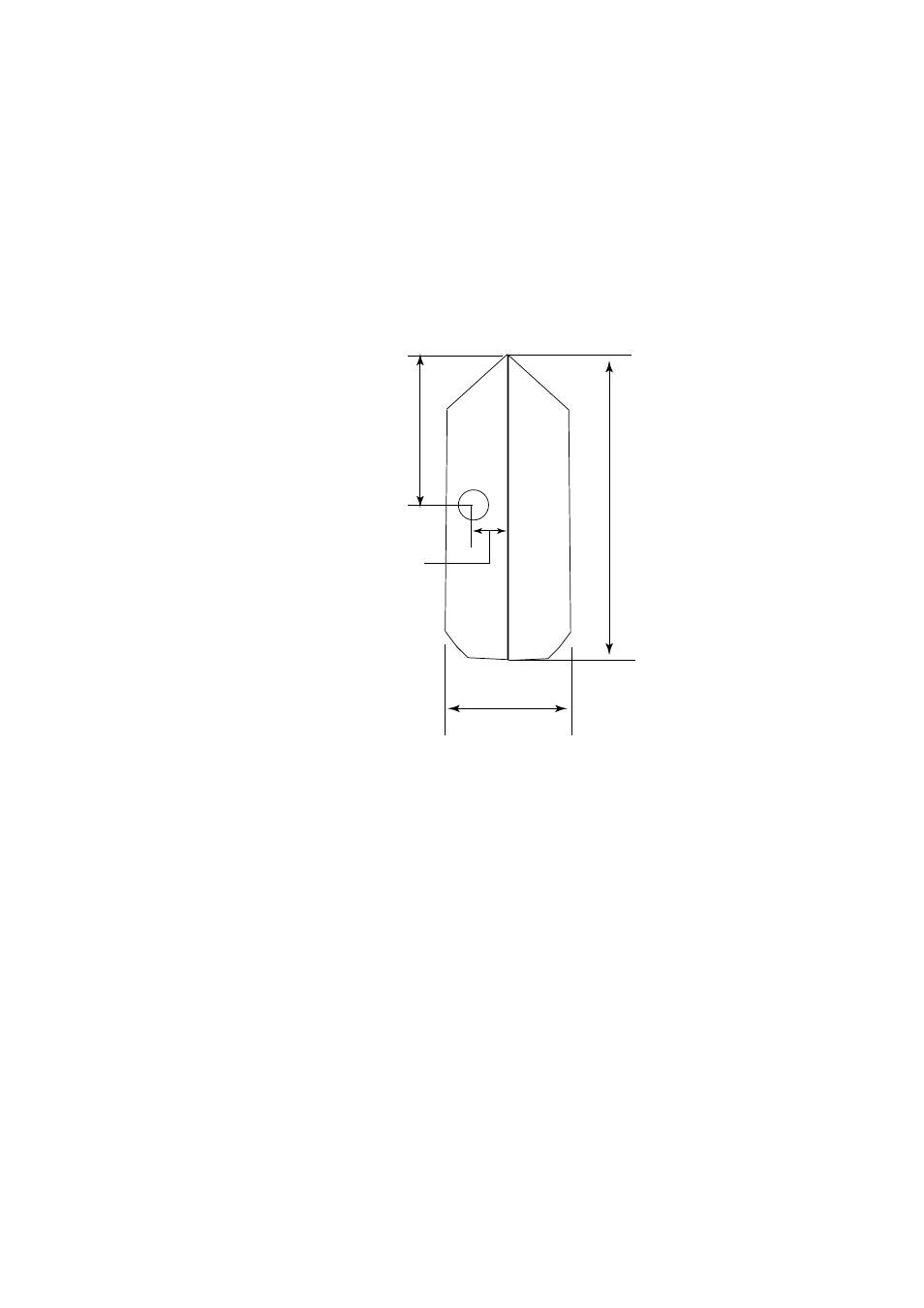

SHIP'S LENGTH
SHIP'S WIDTH
TD POSITION 1
TD POSITION 2
(Nagative for port)
Ship shape description
