1-13

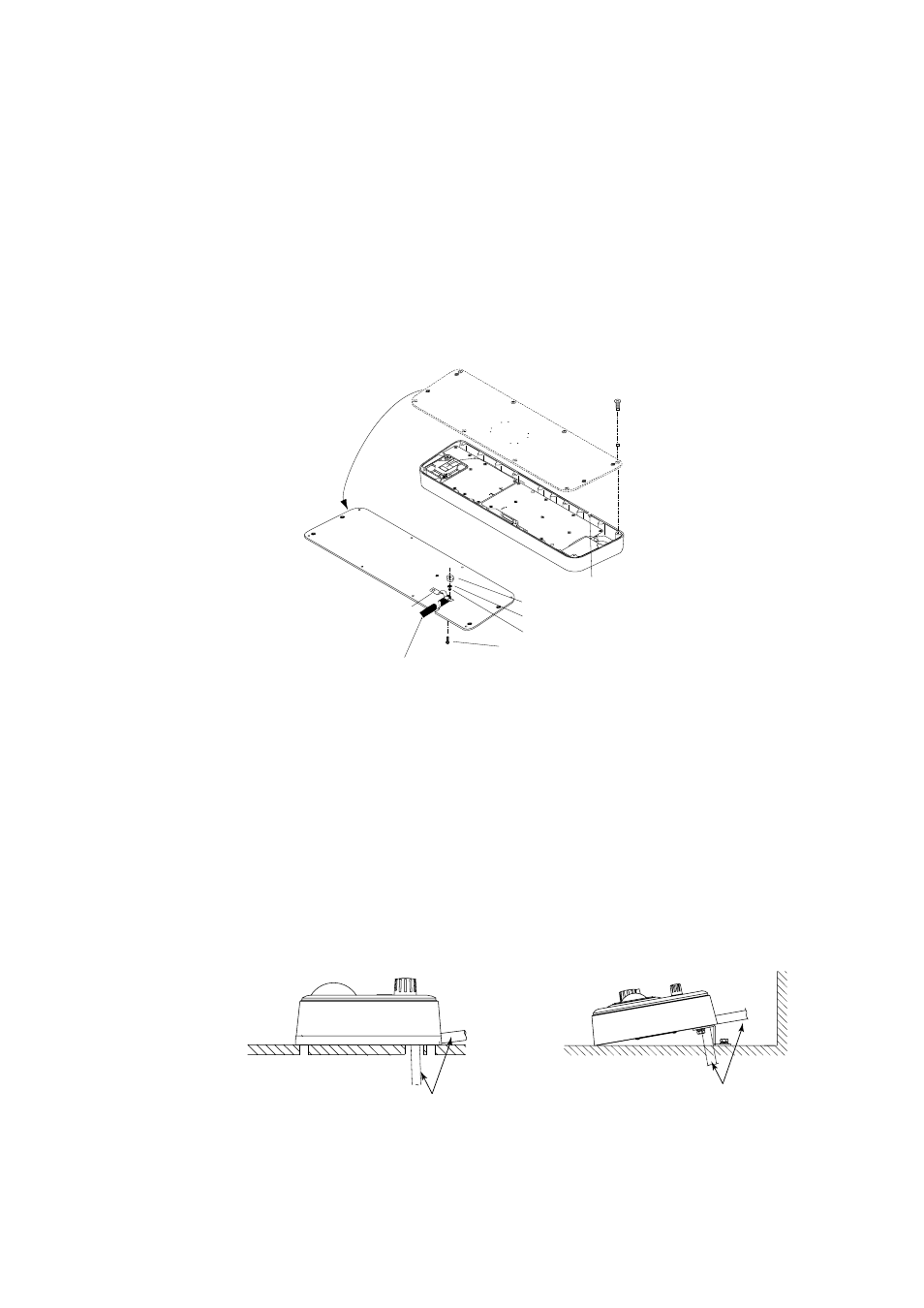

Passing the cable through the bottom of the control unit
For permanent mounting ((2) and (3) above), the control cable can be passed
through the bottom of the control unit. Do the steps in below.
1. Unfasten eight screws (M4) to remove the cover from the bottom of the
control unit.
2. Unscrew two screws (M4x10) to remove the cable clamp.
3. Disconnect two connectors J1 and J2 from the circuit board.
4. Attach the cable to the control unit cover with the cable clamp (removed at
step 2), two flat head screws (M4), flat washers, spring washers and nuts
(hardware: supplied).
Control unit cover
Previous cable hole
Screw
M4X8 (8 pcs.)
Clamp
Flat head screw
Fasten the cable with the clamp here.
Nut
Spring washer
Flar washer
Control unit, cover removed
5. Re-connect two connectors (disconnected at step 3) to the previous
locations.
6. Fasten eight screws to attach the control unit cover.
7. Attach the connector seal (supplied) to the hole at the rear of the control unit.
8. Drill a hole to pass the cable from the bottom of the control unit through the
tabletop. The diameter of the hole should be 30 mm.
9. Attach the connector seal (supplied) to the hole at the bottom of the control
unit when the above modification is not done.
10. Fix the control unit referring to (2) or (3) on the previous page.
Cable
Cable
w/o KB fixing plate w/ KB fixing plate
Control unit, side view
