2-18

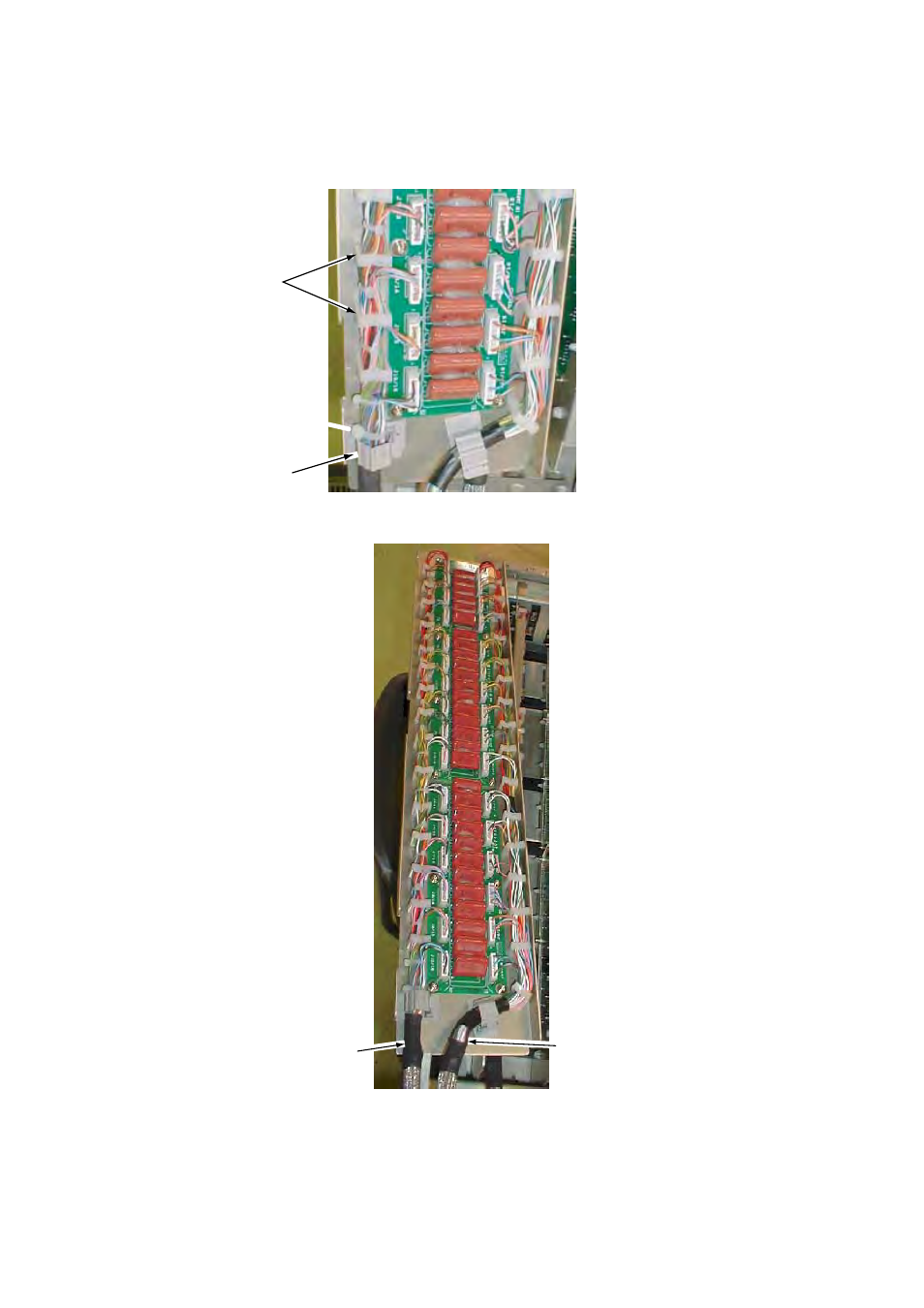

3. Starting from the right side of the junction box, fix the cables by CSK clamp,
pass them through cable clamps and connect XH connectors to the MTC
board.
CKS clamp
Cable clamp
Note: Capacitors not present
on latest version of
MTC board.
Junction box, cover removed, front view
Transducer cable
(10S2140/10S2141) Signal cables from
transceiver unit
(10S2138/10S2139)
Note: Capacitors not present
on latest version of
MTC board.
Junction box, cover removed, front view
4. Fasten the shield part of the cable with metal clamp.
5. Fasten the fixing plates.
