Furuno FSV-24 - Manual (Page 34)

2-6
Assembling D-SUB connector (CN-A302)
1. Remove vinyl sheath of cores by 3 mm.
2. Pass the cores through shrink tubes (local supply).
3. Solder cores to connector pins referring to the schematic diagram at the back
of this manual.
4. Assemble the connector.
Shrink tube
Cable clamp

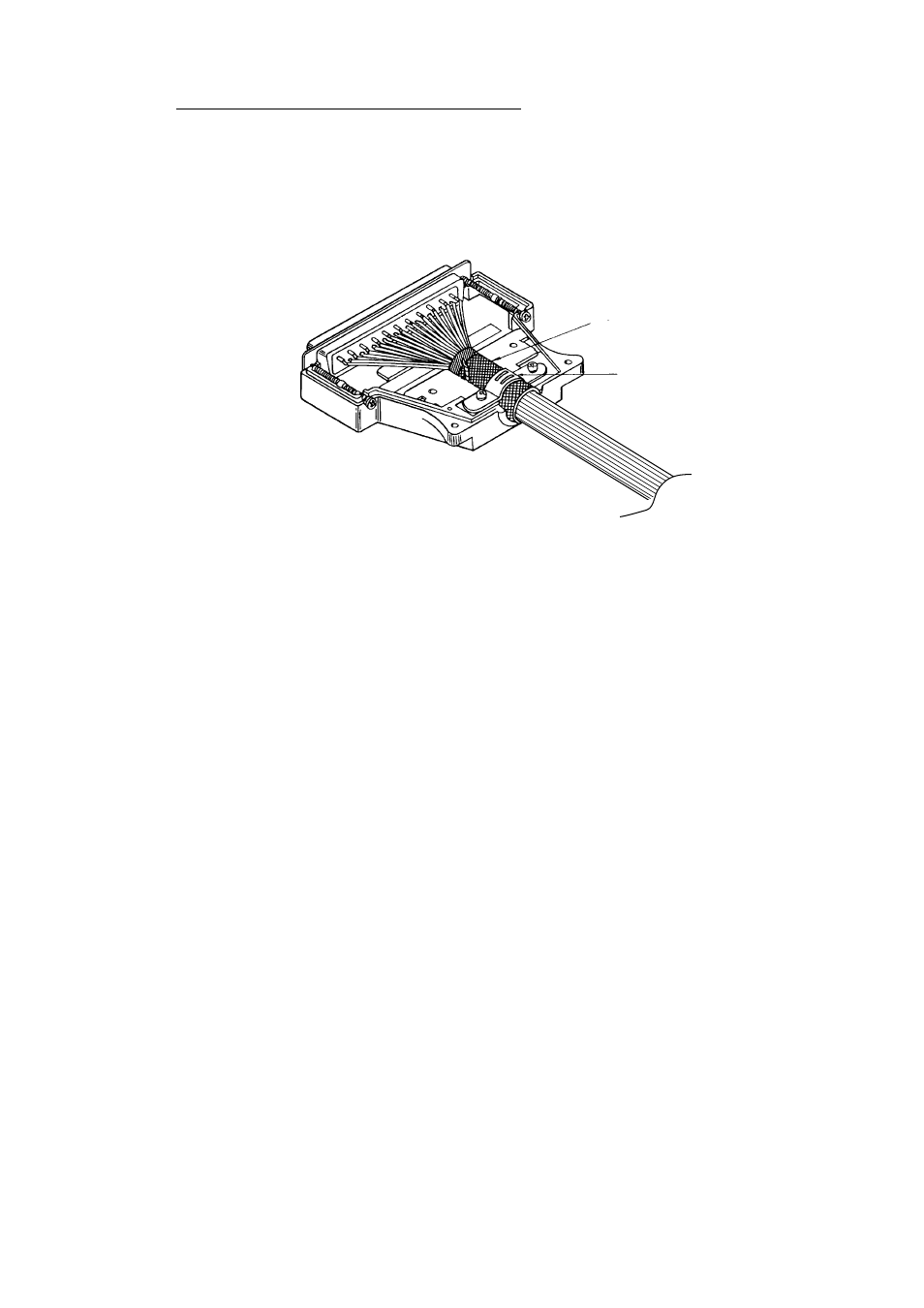

Assembling D-sub connector
2.3.2 Control cable
For FURUNO-supplied monitor, attach the cable from the control unit to the
CN-A301 connector on the monitor unit as shown in the next section. For
blackbox type, this cable should be connected to the CN-A103 connector in the
processor unit.
