4-1
4. CONNECTING
THE
EXTERNAL
INTERFACE CS-120A
When upgrading from the CSH-20 series sonar, the External Interface CS-120A
can be used. Connect between the processor unit and the CS-120A as shown
below. However, we recommend to connect external device to processor unit,
instead of using the CS-120A, to avoid signal delay.
The following power supply kit (option) is required to install on the processor
unit.
Name: Power Supply Kit Type: FSV-2403 Code No.: 000-067-013
Name Type
Code
No.
Q’ty
Remarks
Power supply pcb
LEA50F-24-XFND 000-143-913
1
Spacer SQ-22 000-159-305-10
4
Protection sheet
10-071-3508 100-290-712 1
Screw M3x8
C2700W
000-163-190-10
4
Connector (NJC)
NJC-203-PM
000-160-184-10
1

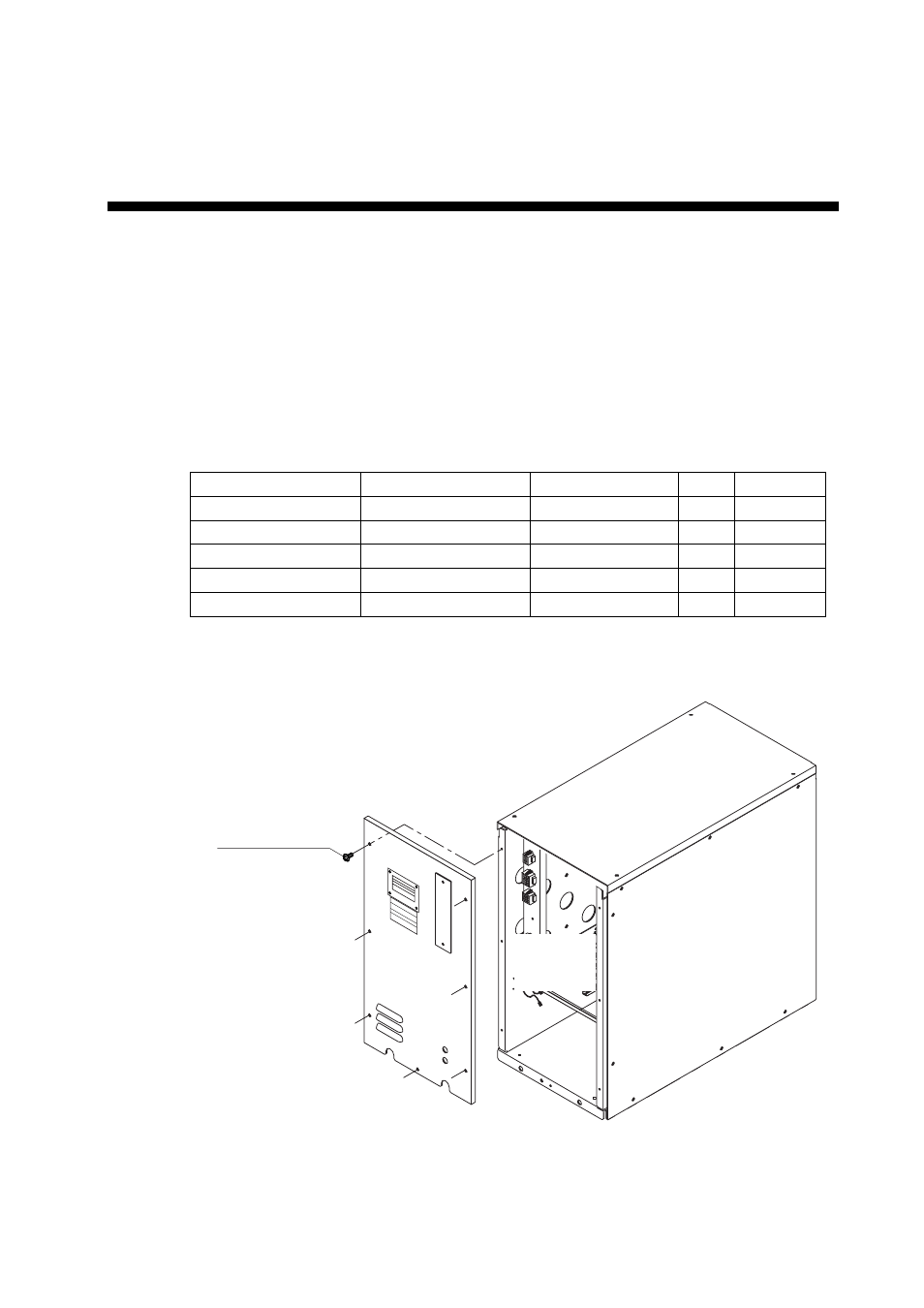

1. Remover the front cover of the processor unit.
Screw
M4x8 7 pcs.
DC
ON
FURUNO
WAR
NIN
G
Details
omitted
