2.4 Processor Unit
Cables (10S2074, 10S1258-1 and control cable) from the various units are
connected to the CONE Board (10P6905) via the cable clamp (See page 2-2).
CAUTION
Divide cables attached to the back of the
processor unit between right and left side.
And then tie each group with a cable tie at
the position 150 mm from connectors.
This is necessary to prevent cable stress.
Cable tie
15cm
2.4.1 10S1258-1 cable
This cable runs between the processor unit and transceiver unit.
8 9
10
11
12
13
14 15
16
17
18
19
7
2
3
4
5
6
ARMOR
SHIELD
1. BLK
2. BLK/BRN
3. BLK/RED
4. BLK/ORG
5. BLK/YEL
6. BLK/GRN
7. BLK/BLU
8. BLK/PPL
1: Coaxial cable
2 to 19: Twisted pair cable
9. BLK/GRY
10. BLK/WHT
11. BRN/RED
12. BRN/ORG
13. BRN/YEL
14. BRN/GRN
15. BRN/BLU
16. BRN/PPL 17. BRN/GRY
18. BRN/WHT
19. RED/ORG
1
ANTICORROSIVE SHEATH

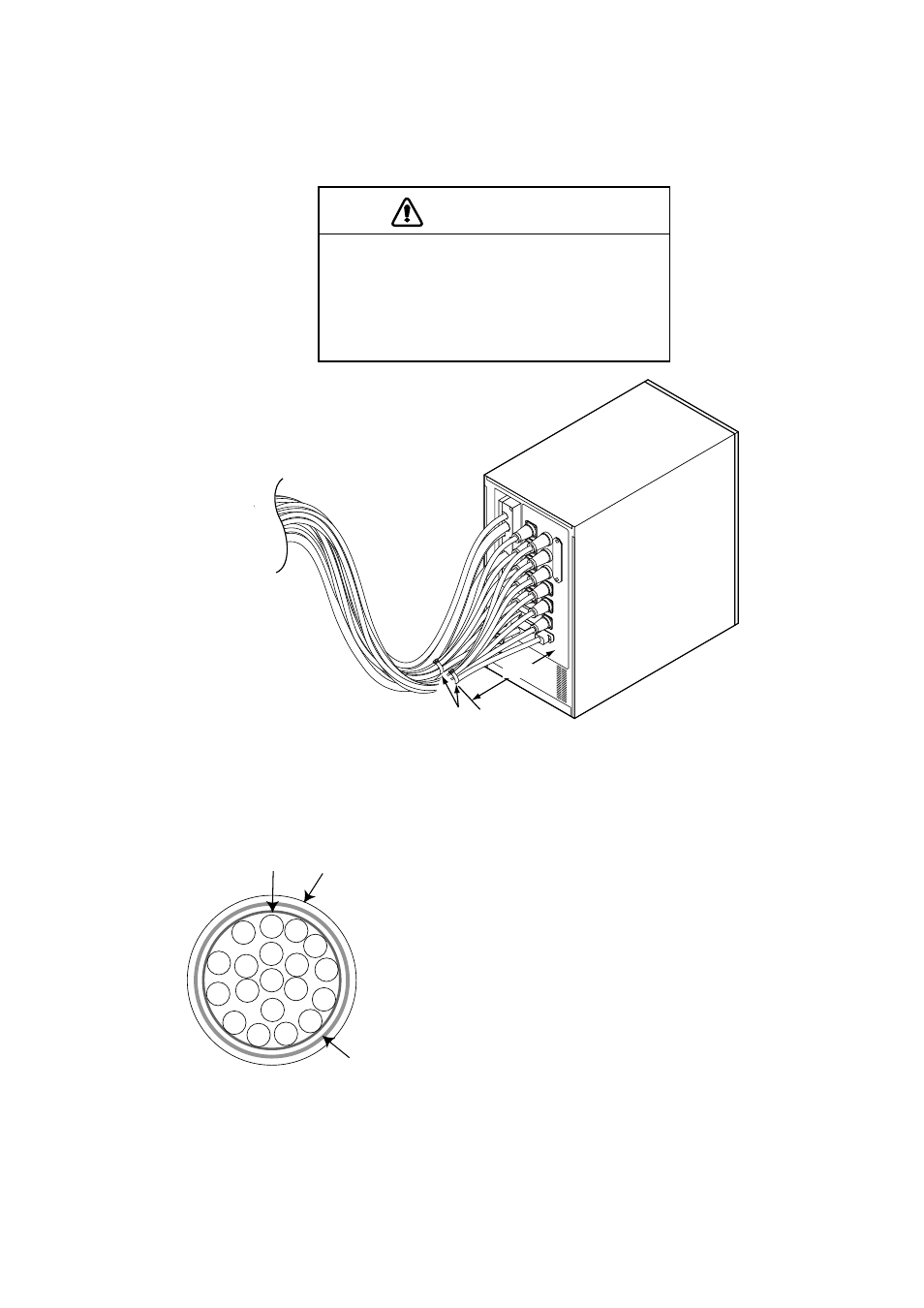

Cable type 10S1258-1, sectional view
