2-10
Armor Vinyl sheath
Taping

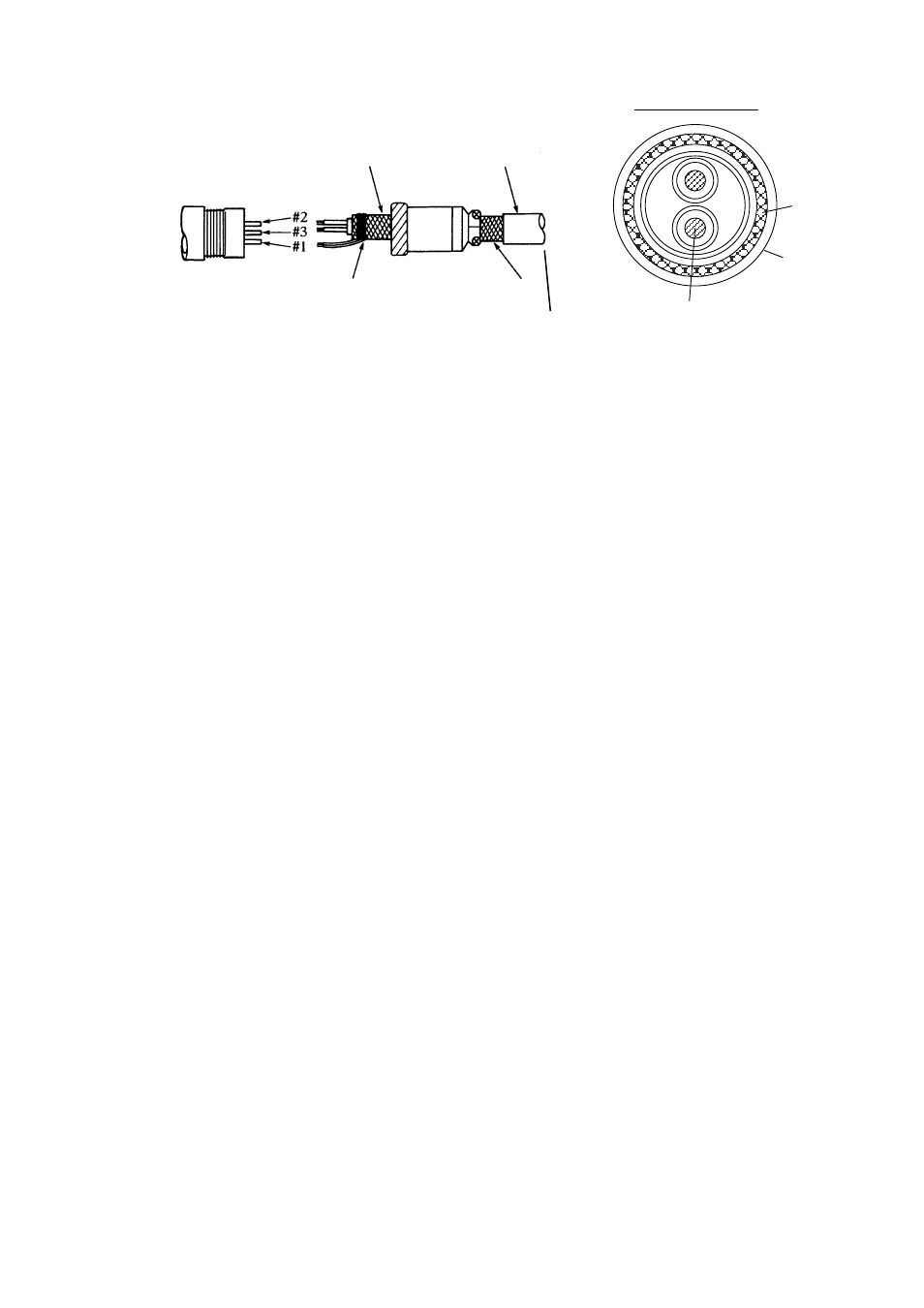

Solder lead wire to armor and
connect it to #1 pin of connector.
Conductor
S = 1.5 mm
∅ = 1.56 mm
2
Vinyl
sheath
Armor
Cable DPYCY-1.5
Use cable DPYCY-1.5
(Japan standard cable)
or equivalent cable.
Assembling connector NCS-253-P
2.4.3 Monitor cable (10S2074 or 10S2075)
Connect the monitor cable 10S2074 or 10S2075 (from the monitor unit) to the
connectors in the processor unit shown below.
38P connector:
CN-A103 (For the optional sub-display, CN-A108)
D-sub 25 pin: CN-A102 (For the optional sub-display, CN-A107)
D-sub 15 pin: CN-A104 (For the optional sub-display, CN-A109)
2.4.4 Control cable
For blackbox type, attach the control cable (10S2076) to the CN-A103 connector
in the processor unit. The control unit for the sub-display unit should be
connected to the CN-A108 connector.
