2-5
Housing Clamp Washer Nut
Center Pin Gasket
7.5
Shield
3
Guide Pin A
Guide Pin B
Guide Pin B
(Small) Guide Pin A
(Large)
Position No.

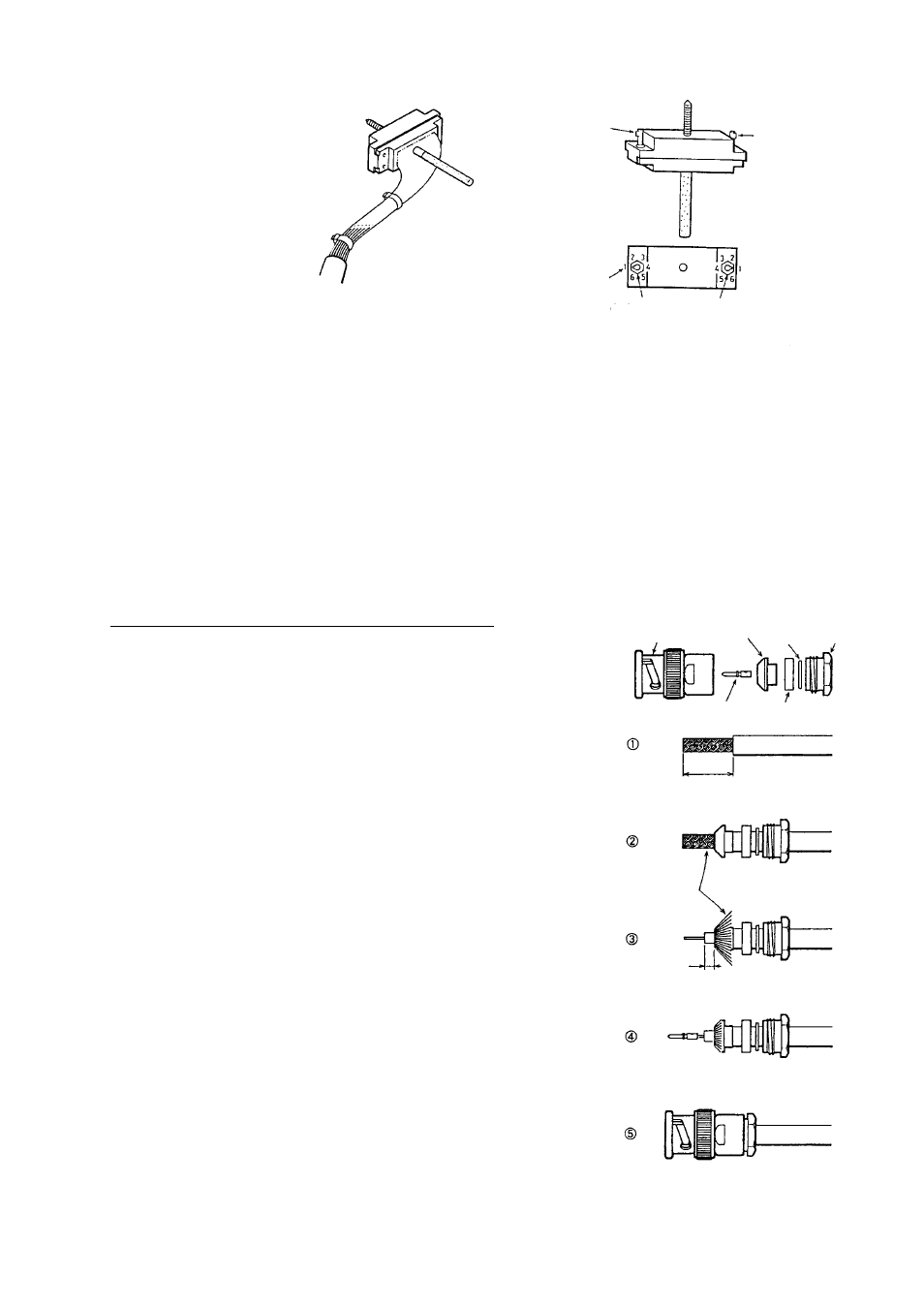

Assembling 38P connector
Positioning guide pins
Guide pins of the connector identify the mating receptacle.
They are;
•
Guide pin A (Large): 4
•
Guide pin B (Small): 1
Assembling BNC connector (CN-A304 to 308)
1. Remove vinyl sheath of the cable by 7.5 mm.
2. Pass the cable through the nut, washer, gasket
and clamp.
3. Unravel the shield and fold it back onto the
clamp.
4. Remove the insulator, leaving 3 mm.
5. Trim the shield as shown in the drawing. Solder
the center chip to the conductor of the cable.
6. Pass the cable through the housing and tighten
the nut.
