Mounting procedure
1. Drill four holes of 12 mm in diameter in the mounting location, referring to the
outline drawing for mounting dimensions.
2. Unfasten two M4X10 screws to dismount the front cover.
3. Unfasten two sets of M10 bolts, plain washers and spring washers to
separate the monitor from the mounting base.
4. Pull the monitor forward about four centimeters and then lift it to separate it
from the mounting base.
5. Fasten the mounting base to the mounting location with M10 bolts, nuts and
washers (local supply).
6. Lay the monitor on the top of the mounting base, making sure the rear pin on
the monitor is mated to the slit in the mounting base. Fix the monitor to the
mounting base with the two sets of bolts, nuts and washers unfastened at
step 3.
7. Close the front cover.

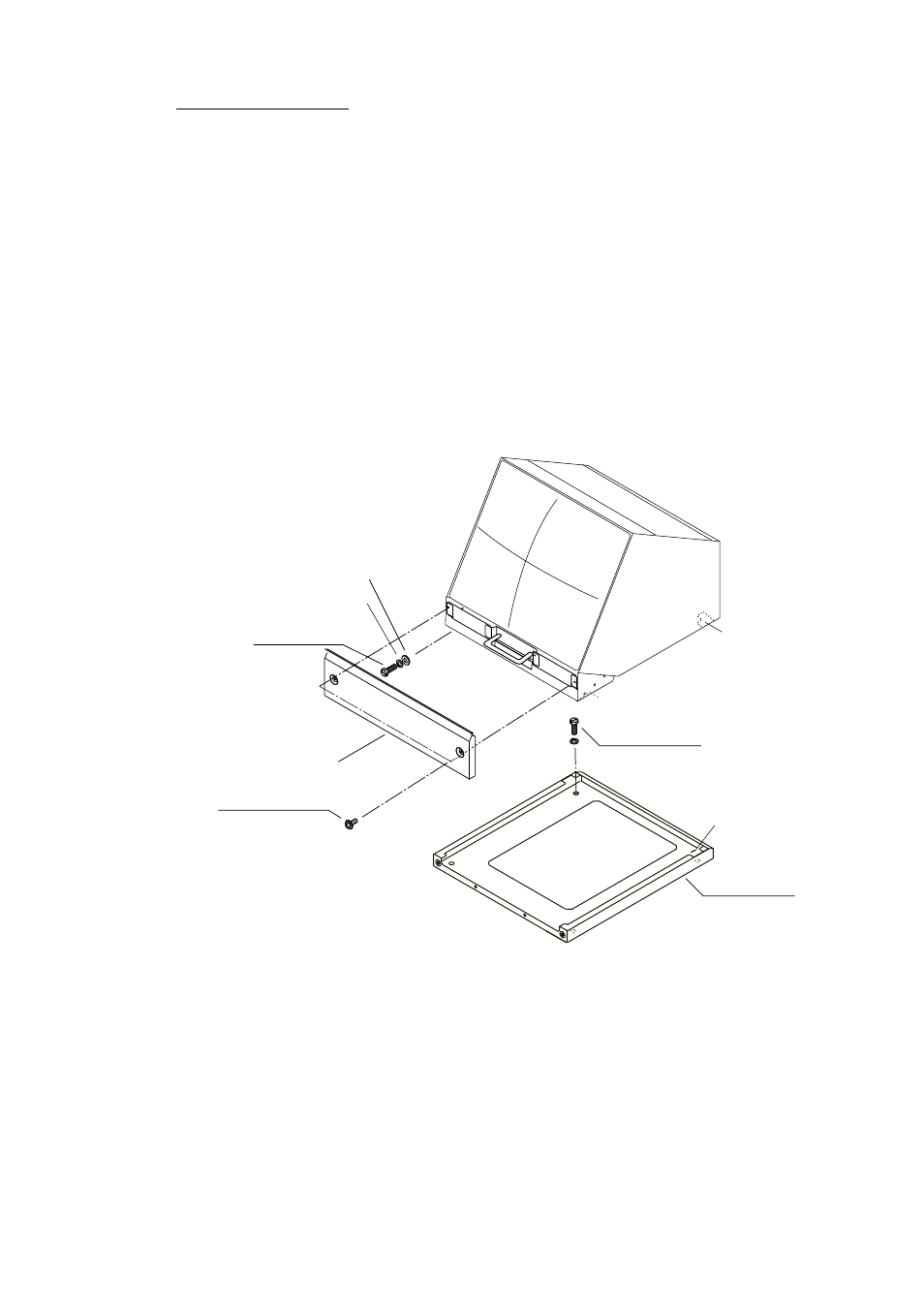

Front Cover
Pan-Head Screw
M4X10, 2 pcs.
Hex Bolt
M10X30,
2 pcs.
Spring Washer, M10, 2 pcs.
Plain Washer, M10, 2 pcs.
Mounting Base
Hex Bolt
M10X30, 4 pcs.
Washer
Pin
Slit
Monitor unit
