2.5.2 Fabrication of power cable type DPYCY-4 (TB-B101)
Fabricate the cable DPYCY-4 as below for connection to the power unit.
Conductor
S = 4 mm
∅ = 2.55 mm
2
Vinyl
sheath
Armor
Cable DPYCY-4
140
(Power unit side: 200)
35
30
FV5.5-4
M4 (YEL) x2
Vinyl sheath
Armor
Anticorrosive
sheath

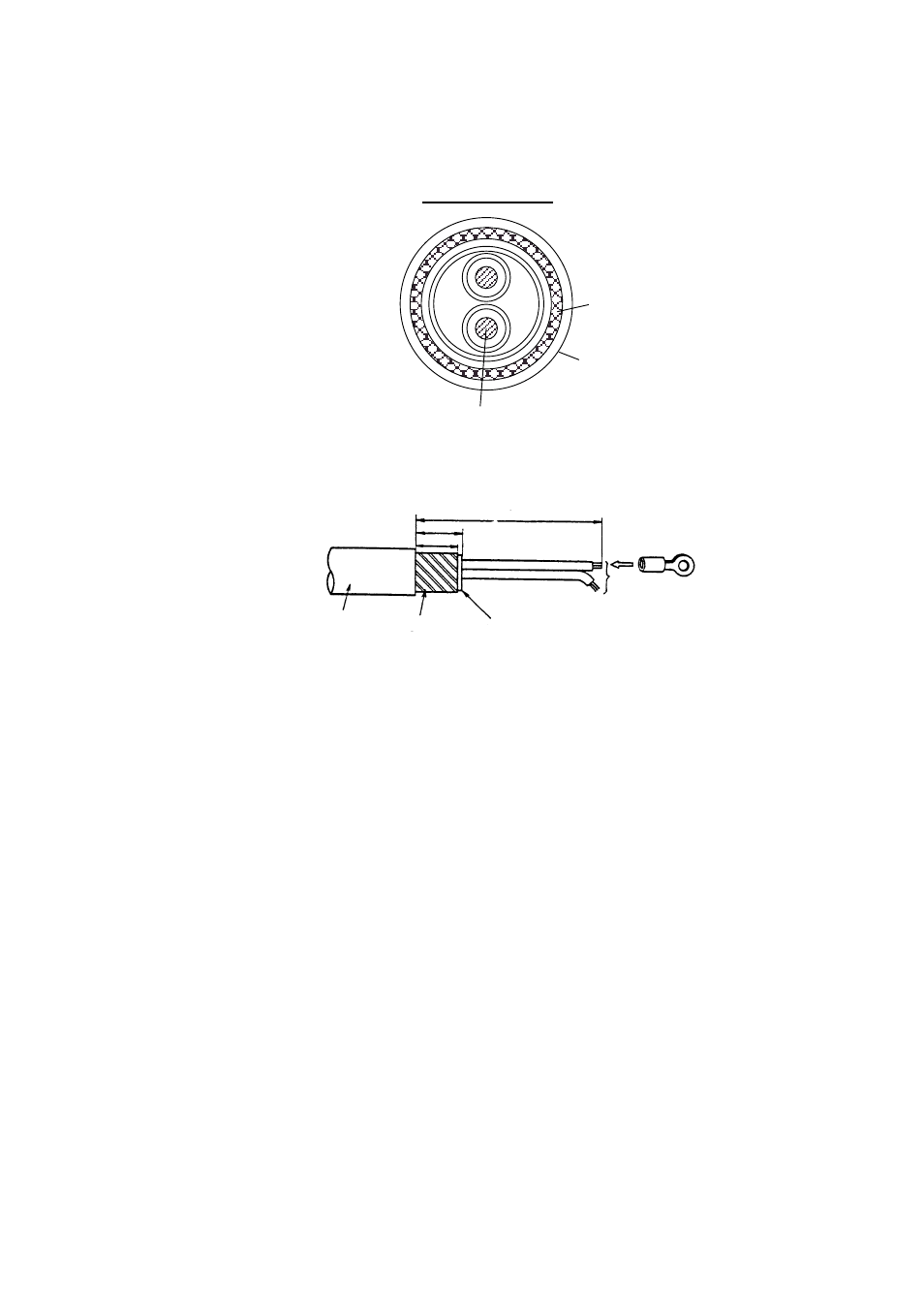

Fabrication of cable type DPYCY-4
2.5.3 Hull control cable (10S2078)
Connect the hull control cable (10S2078) to the CN-B102.
Note: The same type of connector is fitted at each end, however the connector
where the amount of sheath removed is greater should be connected to
the transceiver unit.
