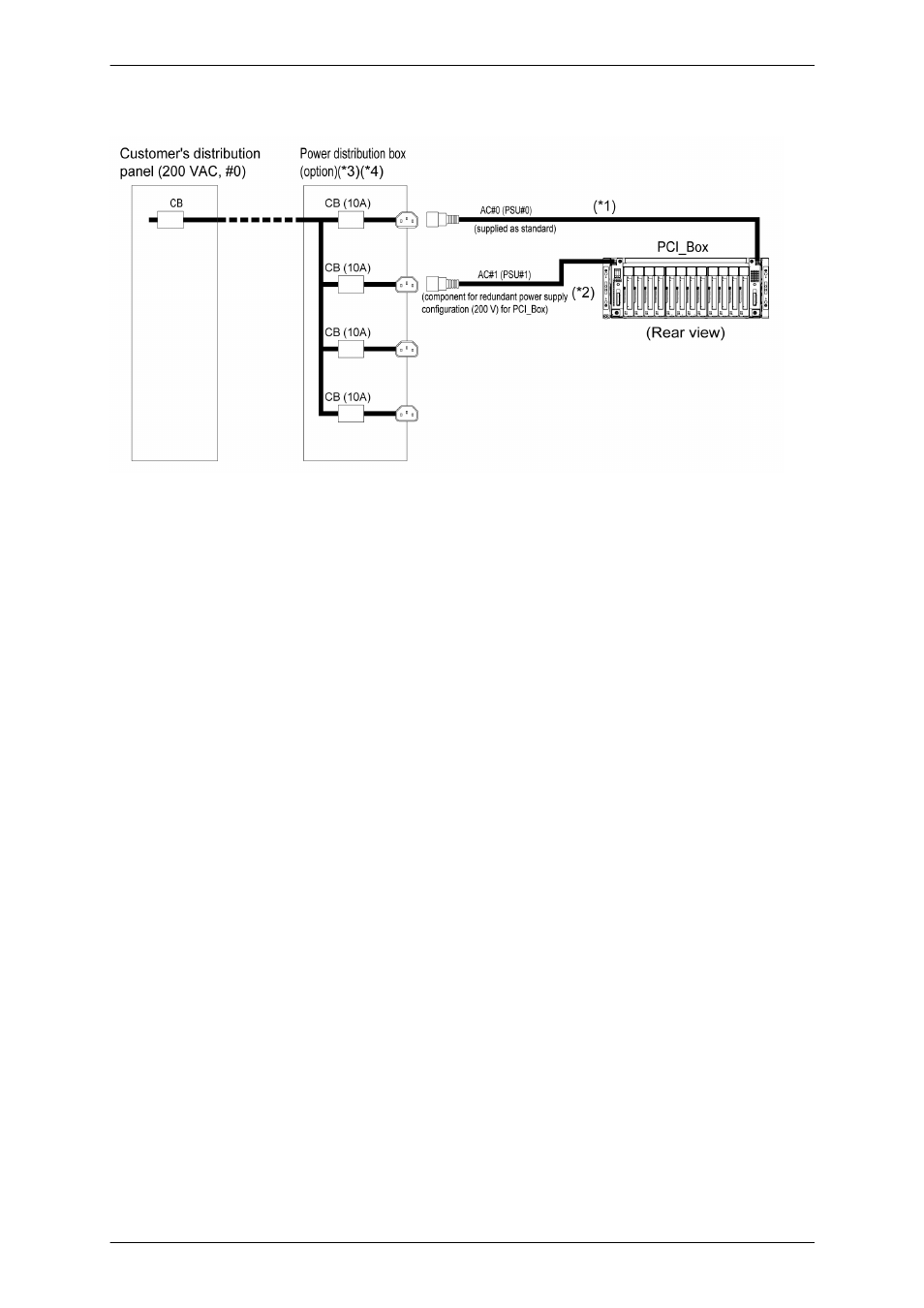

FIGURE 2.15 200 to 240 V redundant power supply configuration (primary power feed, redundant power
supply)
*1 Power cables (AC#0 to AC#1) are connected to PSUs (PSU#0 to PSU#1) on a one-to-one basis.
*2 This change to the power supply configuration requires a redundant power supply (200 V) for the PCI_Box, and
the power supply must be prepared separately.
*3 The power distribution box must be prepared separately.
*4 To use a power distribution box, it must meet the breaker characteristics for the customer's distribution panel.
(See 2.6 Shutoff Characteristic of the Customer's Distribution Panel (Only When Connected to the Power
Distribution Box) .)
200 to 240 V dual power feed configuration
