2.3.2 Power cable connections of the PCI_Box
This section shows diagrams of the input power distribution for the PCI_Box.
Remarks
Use the same power configuration for the PCI_Box as that for the main unit, which is either a redundant
configuration or dual power feed configuration.
200 to 240 V standard configuration (primary power feed, no redundant power supply)
200 to 240 V redundant power supply configuration (primary power feed, redundant power supply)
200 to 240 V dual power feed configuration
100 to 120 V configuration (primary power feed, no redundant power supply)
100 to 120 V redundant power supply configuration (primary power feed, redundant power supply)
200 to 240 V standard configuration (primary power feed, no redundant power supply)

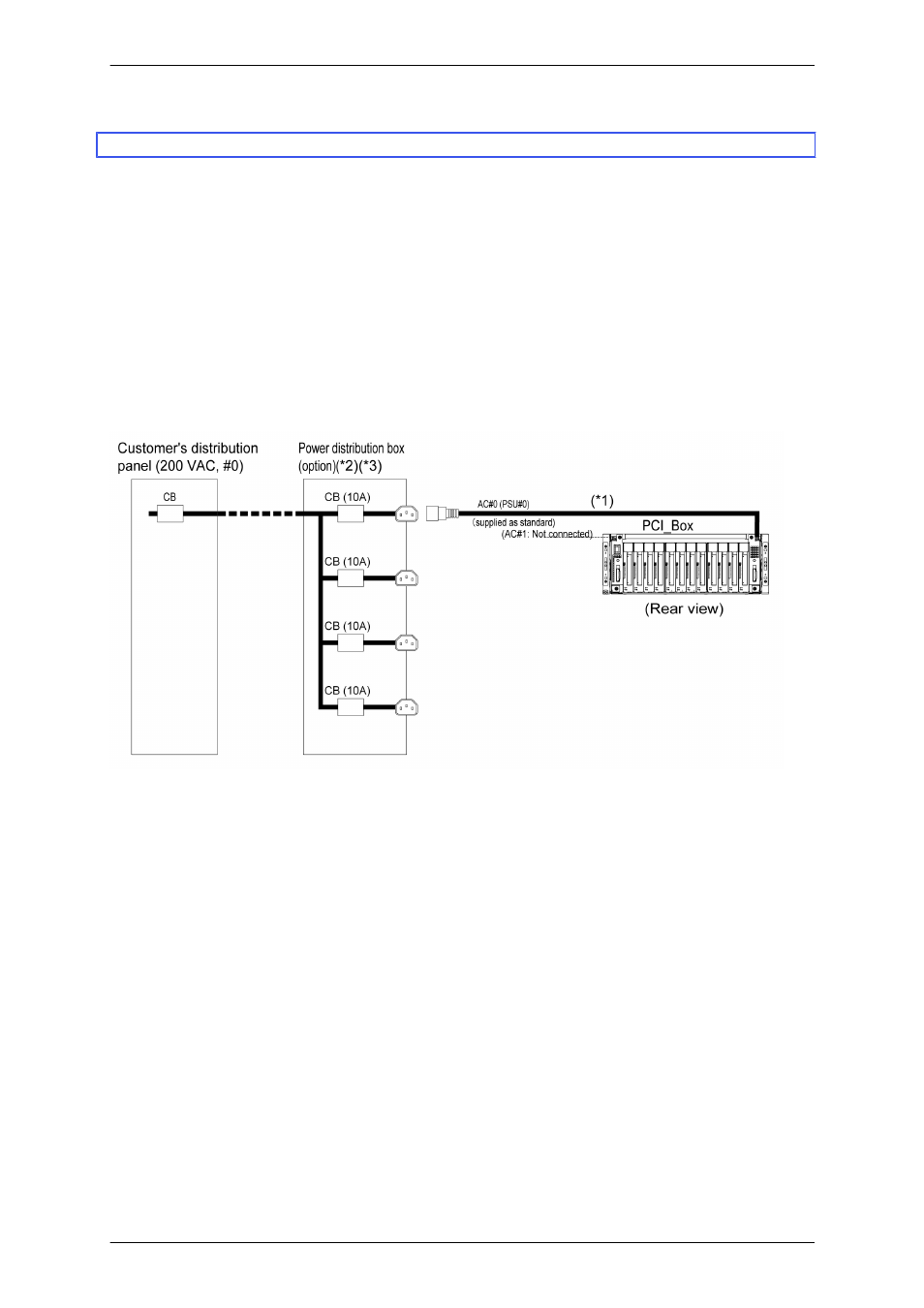

FIGURE 2.14 200 to 240 V standard configuration (primary power feed, no redundant power supply)
*1 The power cable (AC#0) is connected to the PSU (PSU#0) on a one-to-one basis.
*2 The power distribution box must be prepared separately.
*3 To use a power distribution box, it must meet the breaker characteristics for the customer's distribution panel.
(See 2.6 Shutoff Characteristic of the Customer's Distribution Panel (Only When Connected to the Power
Distribution Box) .)
200 to 240 V redundant power supply configuration (primary power feed, redundant power
supply)
