2 pci_box outline drawings, Figure 1.3 primequest 1800e2/1800e (top view) – FUJITSU PRIMEQUEST 1000 Series C122-E119EN User Manual

Page 24

background image


PRIMEQUEST 1800E2/1800E (top view)

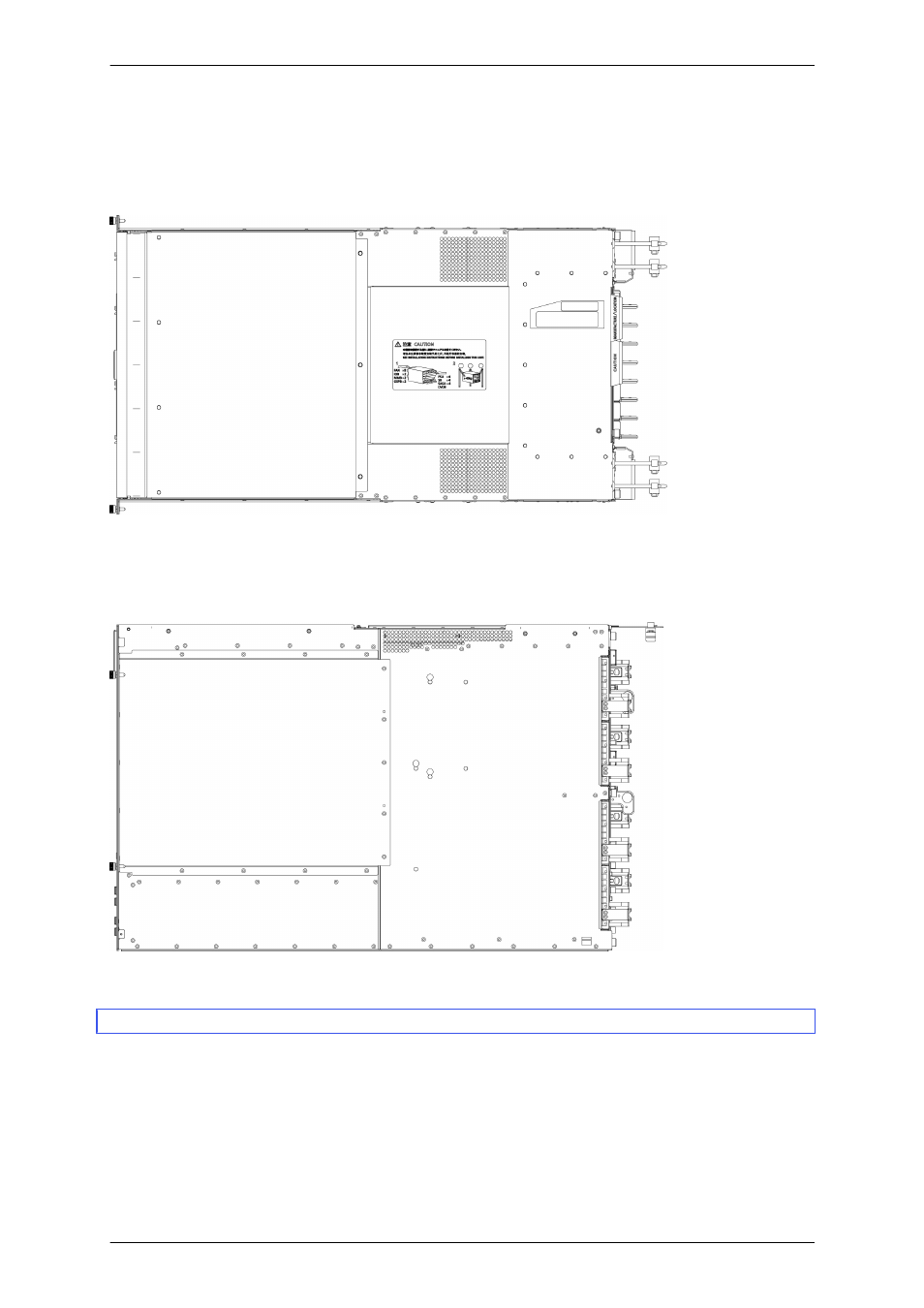

FIGURE 1.3 PRIMEQUEST 1800E2/1800E (top view)

PRIMEQUEST 1800E2/1800E (right side view)

FIGURE 1.4 PRIMEQUEST 1800E2/1800E (right side view)

1.2.2

PCI_Box outline drawings

This section includes outline drawings of the PCI_Box (front, rear, top, and right side views).

PCI_Box front view

PRIMEQUEST 1000 Series Hardware Installation Manual
CHAPTER 1 Installation Information

4

C122-H004-07EN
