B.4

Cable Connector

This section describes the connector type and the correspondence between the UPC interface and the signal cable

pins.

Connector type

D-SUB9 male connector (receptacle: female)

Pin assignment

The figure below shows the UPC interface and pin assignment of the signal cable.

Unused pins (pins 1, 2, 3, 4, and 8 in the

FIGURE B.2 Connection of the main unit and CVCF

) must not be used.

The pin assignment on the cable side is as shown below.

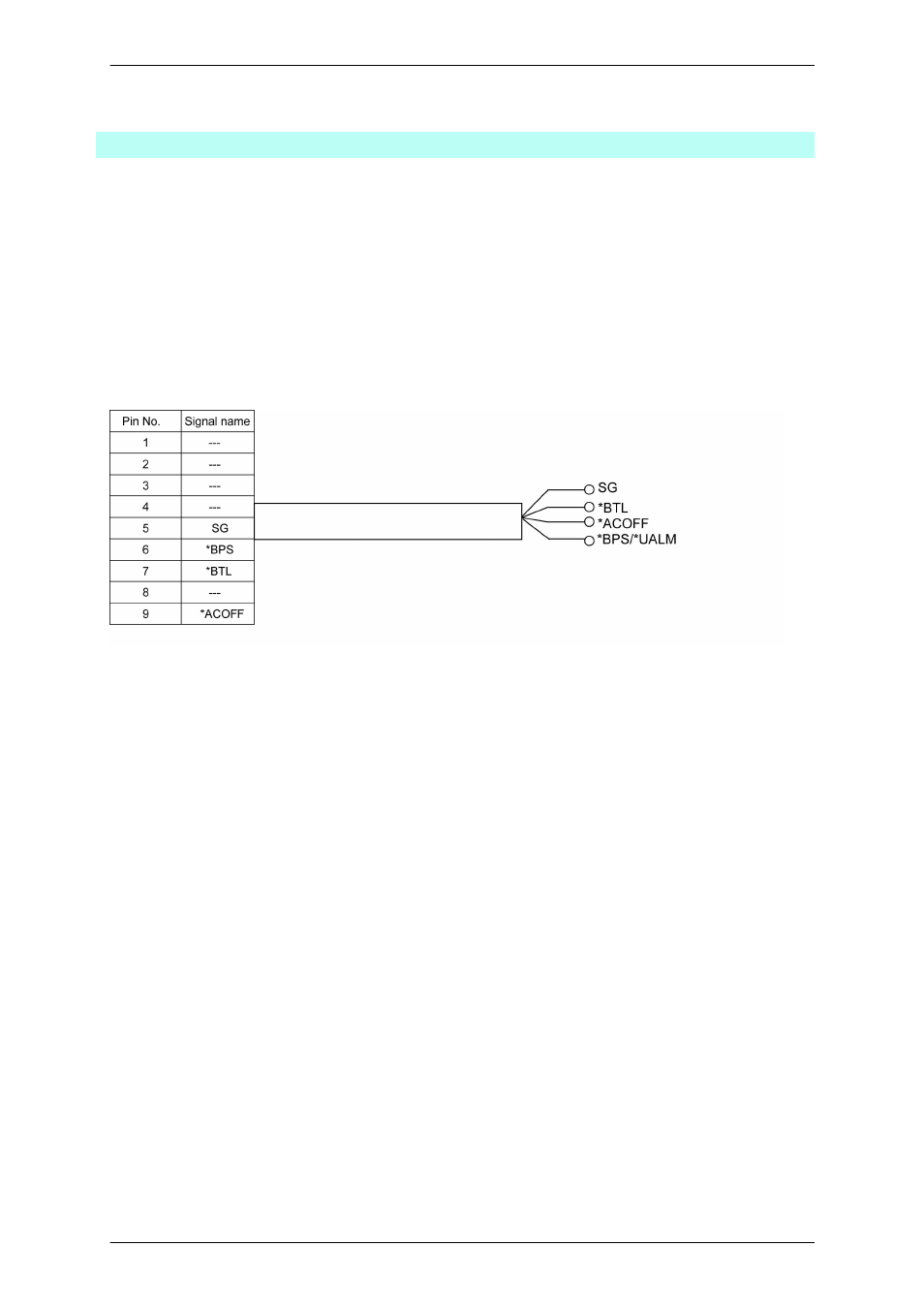

FIGURE B.3 Correspondence between UPC interface and signal cable pins

PRIMEQUEST 1000 Series Hardware Installation Manual
APPENDIX B UPC Interface

86

C122-H004-07EN
