2.1 Overview of Connections
This section describes an overview of connections for the PRIMEQUEST 1000 series.
2.1.1 Overview of Connections (PRIMEQUEST 1800E2)
FIGURE 2.1 Overview of device connections (PRIMEQUEST 1800E2) shows an overview of device connections
for the PRIMEQUEST 1800E2.

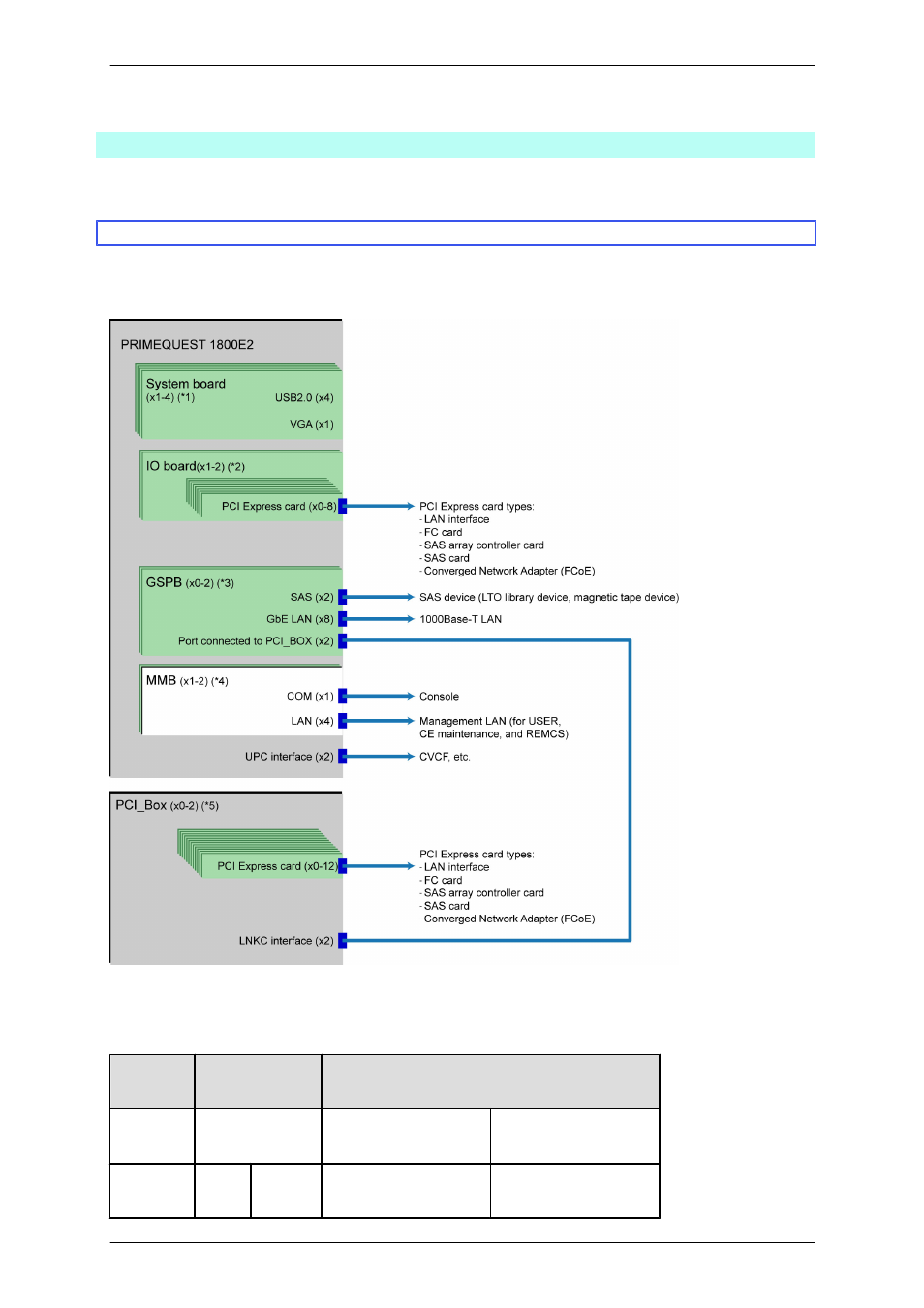

FIGURE 2.1 Overview of device connections (PRIMEQUEST 1800E2)
TABLE 2.1 Notes on device connections (PRIMEQUEST 1800E2)
Number in
Figure 2.1
Component Description
*1 System board PRIMEQUEST 1800E2 Up to 4 units can be
mounted.
*2
IO unit
IO board PRIMEQUEST 1800E2 Up to 2 units can be
mounted.
PRIMEQUEST 1000 Series Hardware Installation Manual
CHAPTER 2 Connection Information
20 C122-H004-07EN
