6.3.4.3 GPIO
Click the GPIO button
to bring up the GPIO control window (Figure

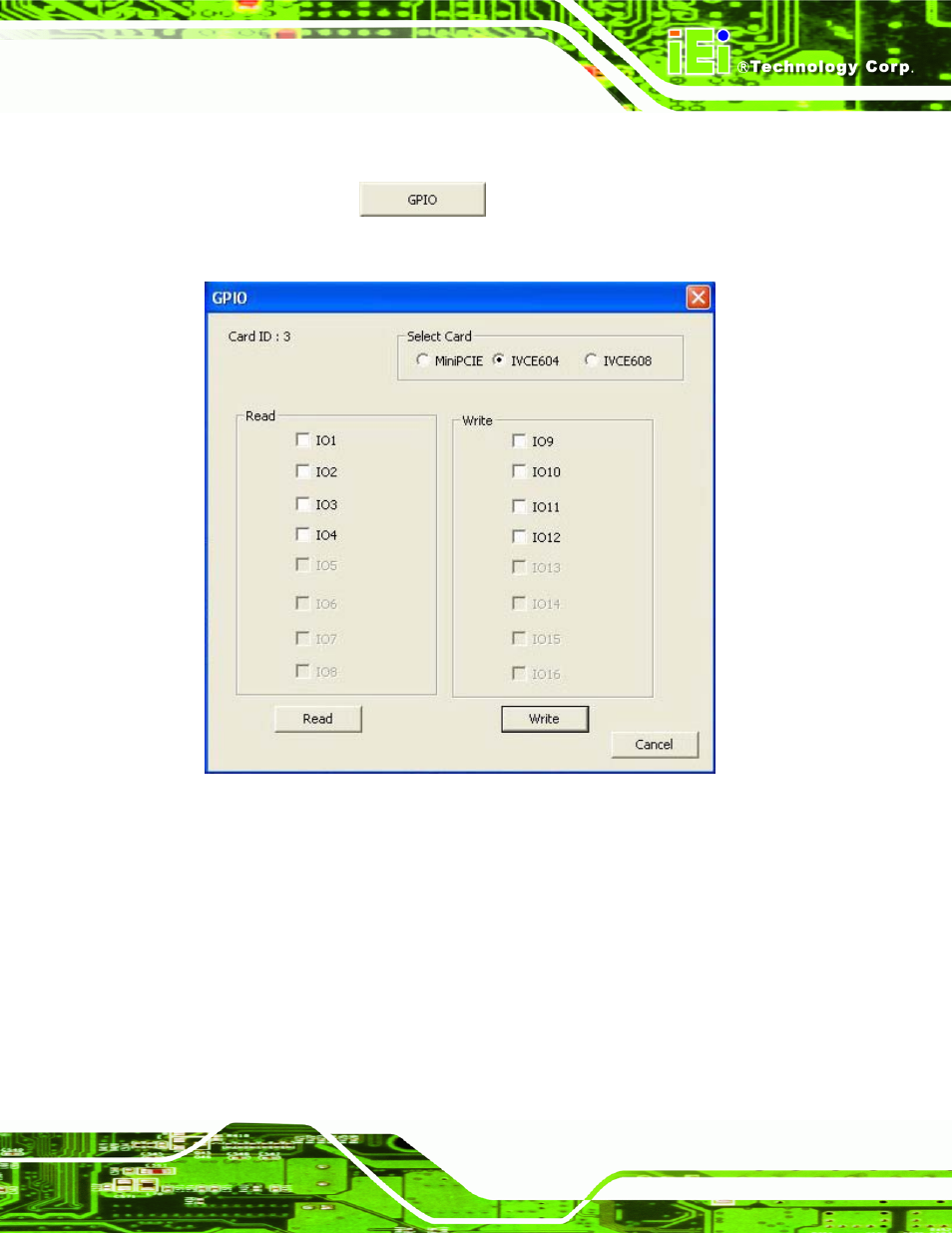

Figure 6-26: GPIO Control
The GPIO function allows users to configure GPIO output signals and read GPIO input
signal if the GPIO connector(s) of the IVCE-C608/IVCE-C604/IVCME-C604 is connected
to an optional GPIO card.
