IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 20
5.4.6 Video and Audio Input Connection
Both IVCE-C608 and IVCE-C604 are shipped with a video and audio input cable. To
install the video and audio input cable, please follow the instructions below.
NOTE:
The IVCE-C608 is shipped with an 8-channel video and 8-channel
audio input cable whereas the IVCE-C604 is shipped with a 4-channel
video and 4-channel audio input cable.

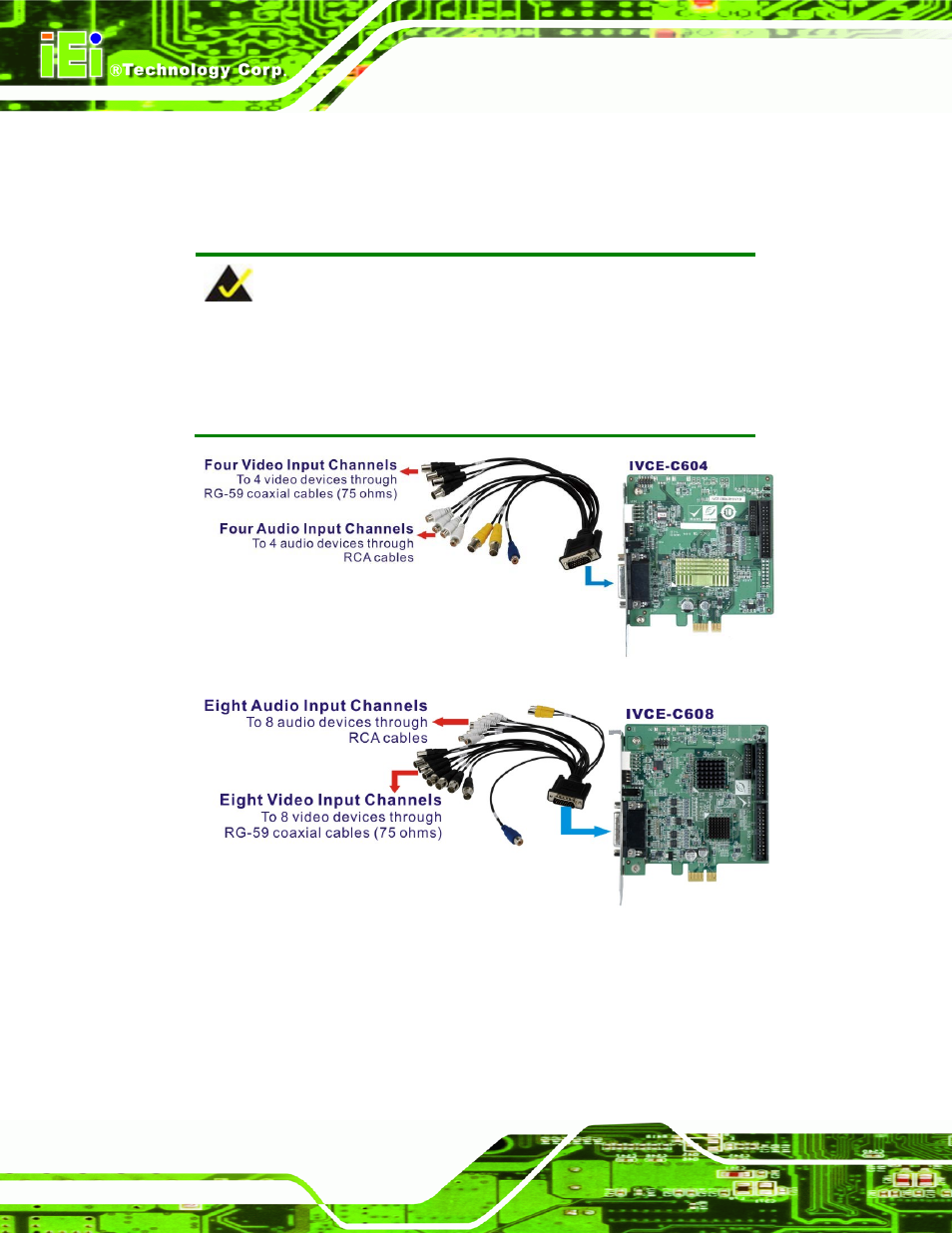

Figure 5-6: Video and Audio Input Connection
Step 1:
Align and insert the DB-26 male connector from the cable to the DB-26 female
connector on the board.
Step 2:
Make sure the connection is secure.
