IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 10
4.1.3 IVCME-C604 Pinouts
WARNING:
The other connectors, jumpers and interfaces on the board not
specified below are for R&D diagnostic purposes and should not be
used by the end user.
The IVCME-C604 has the following connectors and interfaces on board:
Quantity
Connector Name
Connector Type
Labels
1
GPIO connectors
9-pin wafer
CN2
1 Video/Audio
input/output
connector
10-pin wafer
CN1
Table 4-11: IVCME-C604 Connectors

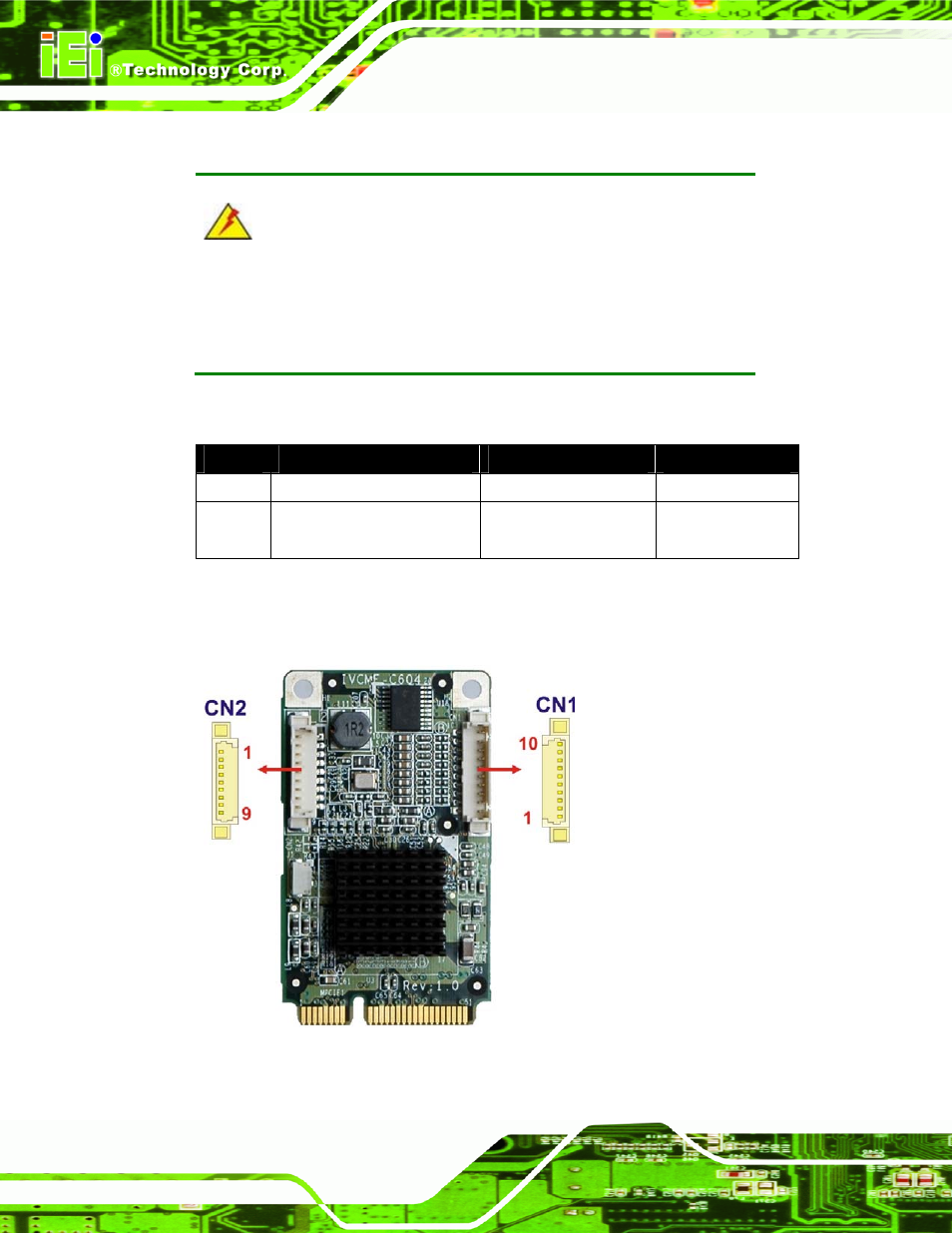

Figure 4-2 shows the connectors and interfaces on the IVCME-C604.
Figure 4-3: IVCME-C604 Connectors and Pinouts (pin numbers in red)
