IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 23
5.5.2 Video Capture Card Installation
To install the IVCME-C604, please refer to the diagram and instructions below.

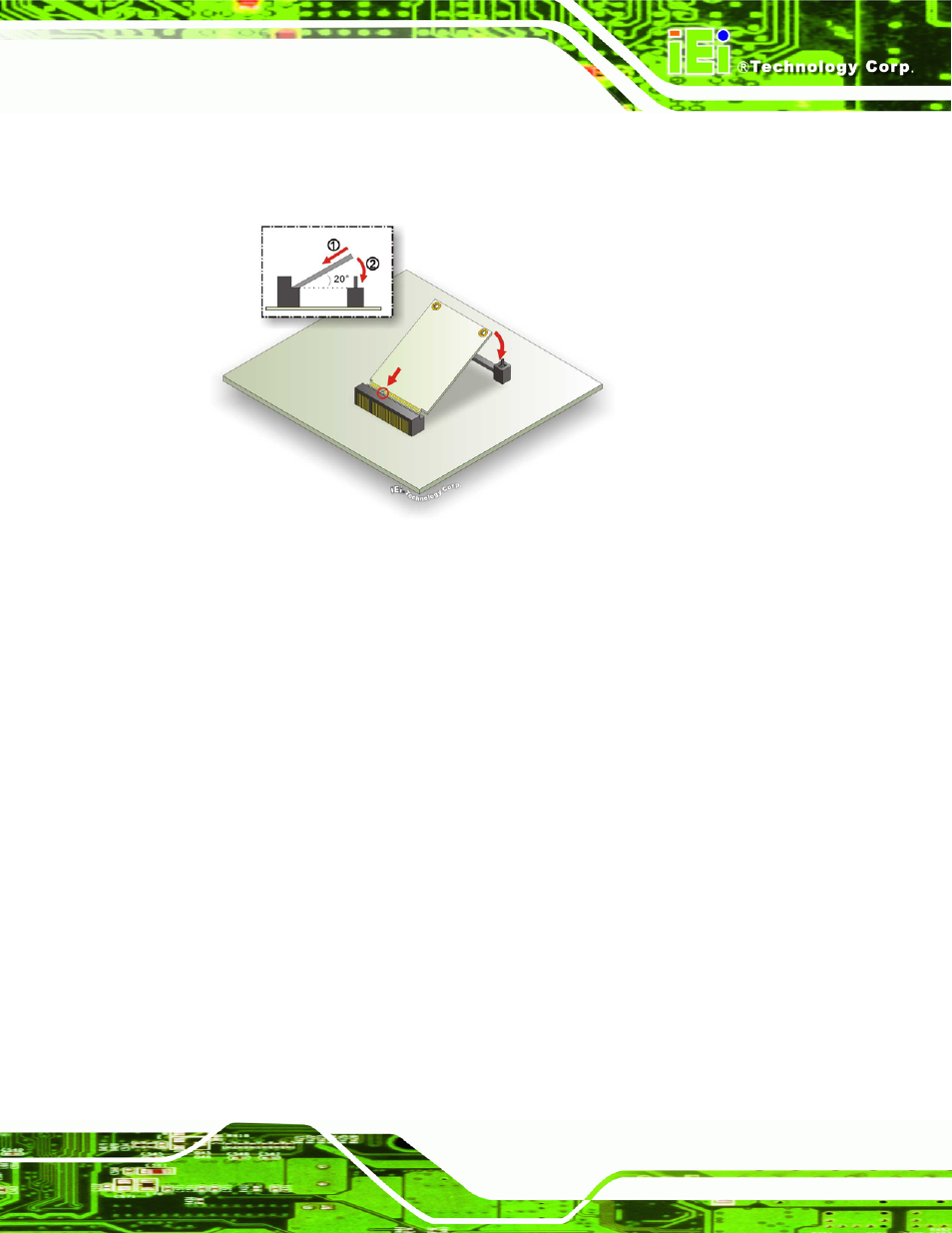

Figure 5-8: IVCME-C604 Installation
Step 1:
Insert into the socket at an angle. Line up the notch on the card with the notch
on the connector. Slide the IVCME-C604 into the socket at an angle of about
20º.
Step 2:
Push down until the card clips into place. Push the other end of the card
down until it clips into place on the plastic connector.
Step 0:
5.5.3 Video and Audio Input Connection
The IVCME-C604 is shipped with a video/audio input cable, a 4-channel video input cable
and a 4-channel audio input cable. To install the video and audio input cable, please follow
the instructions below.
