1.2.2 IVCE-C604 Overview
The IVCE-C604 comes with one Conexant CX25850 video capture controller, one GPIO
connector, one rotary switch, LED indicators and one DB-26 video/audio connector. A
PCIe edge connector on the bottom of the capture card enables the IVCE-C604 to
interface with a motherboard or CPU card. An overview can be seen in Figure 1-3:

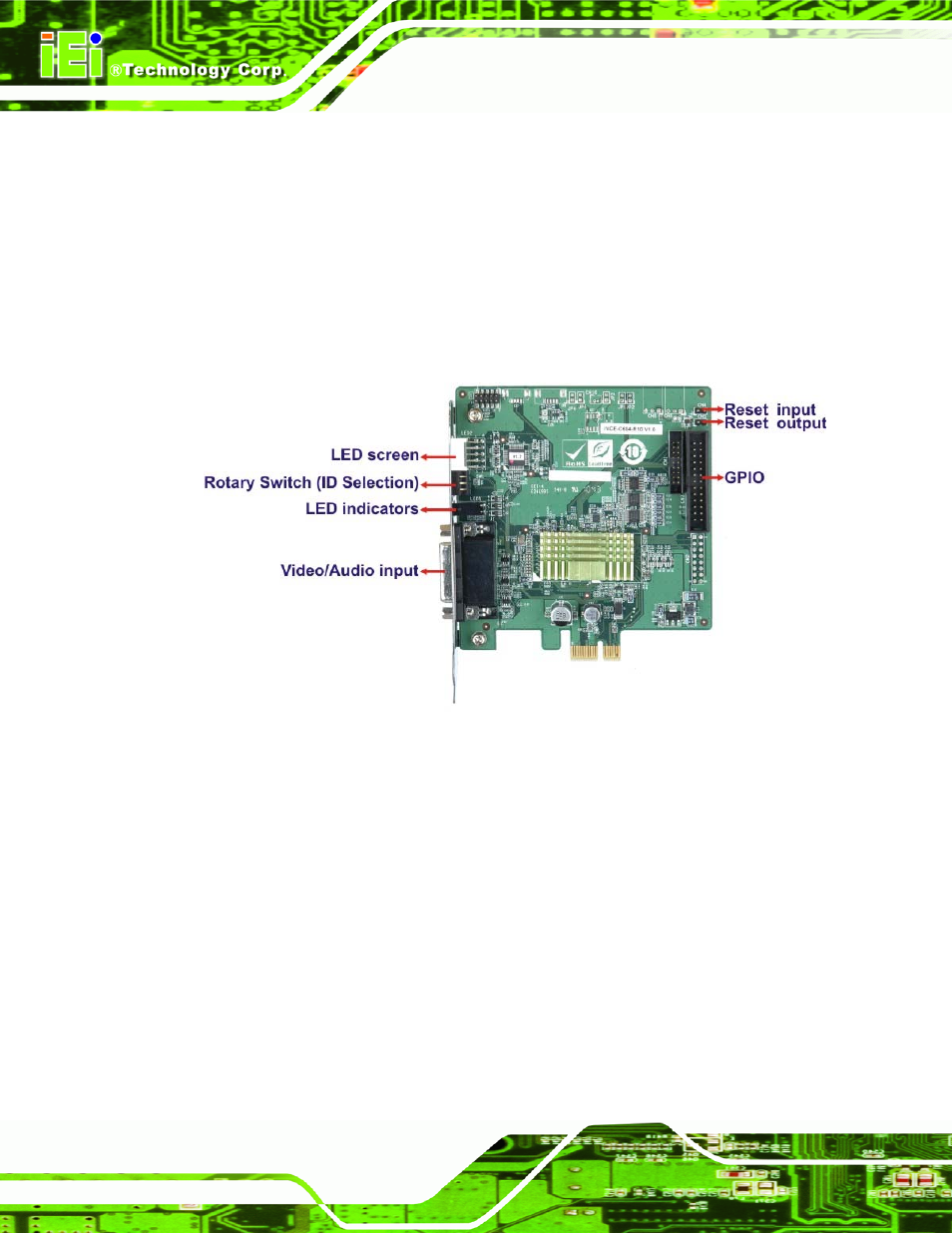

Figure 1-3: IVCE-C604 Overview
