IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 23
2.2.3 IVCME-C604 Dimension Drawing
The dimensions for the IVCME-C604 are listed below:
Length:
50.92
mm
Width:
30.00
mm
The dimensions are shown in Figure 2-3: IVCME-C604 Dimension Drawing.

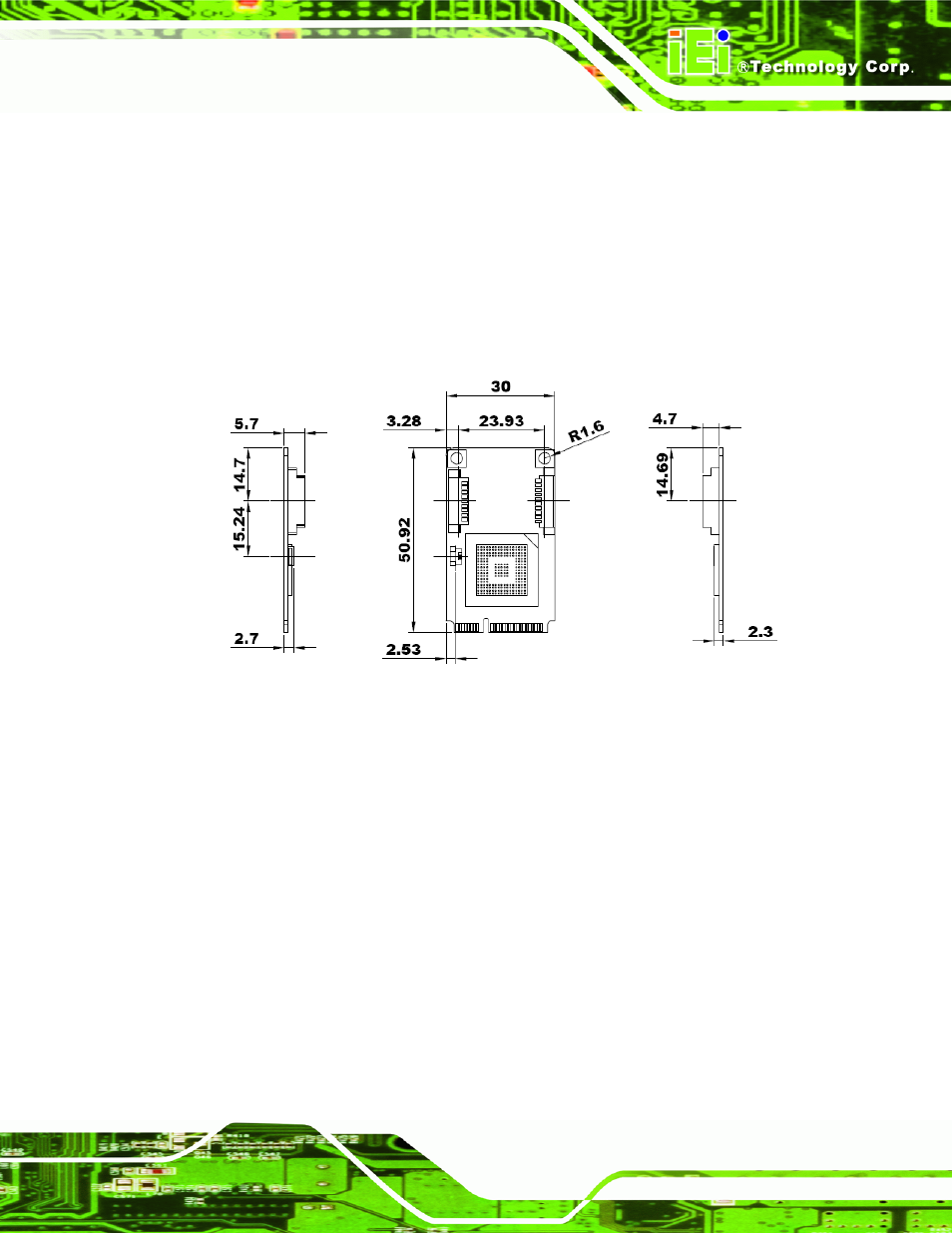

Figure 2-3: IVCME-C604 Dimension Drawing
