2.2 Dimensions
The dimensions for each model are listed in Table 2-5: Mechanical and Environmental
Specifications above. Detailed dimension drawings for each model are shown in the
sections below.
2.2.1 IVCE-C608 Dimension Drawing
The dimensions for the IVCE-C608 are listed below:
Length:
111.0
mm
Width:
102.4
mm

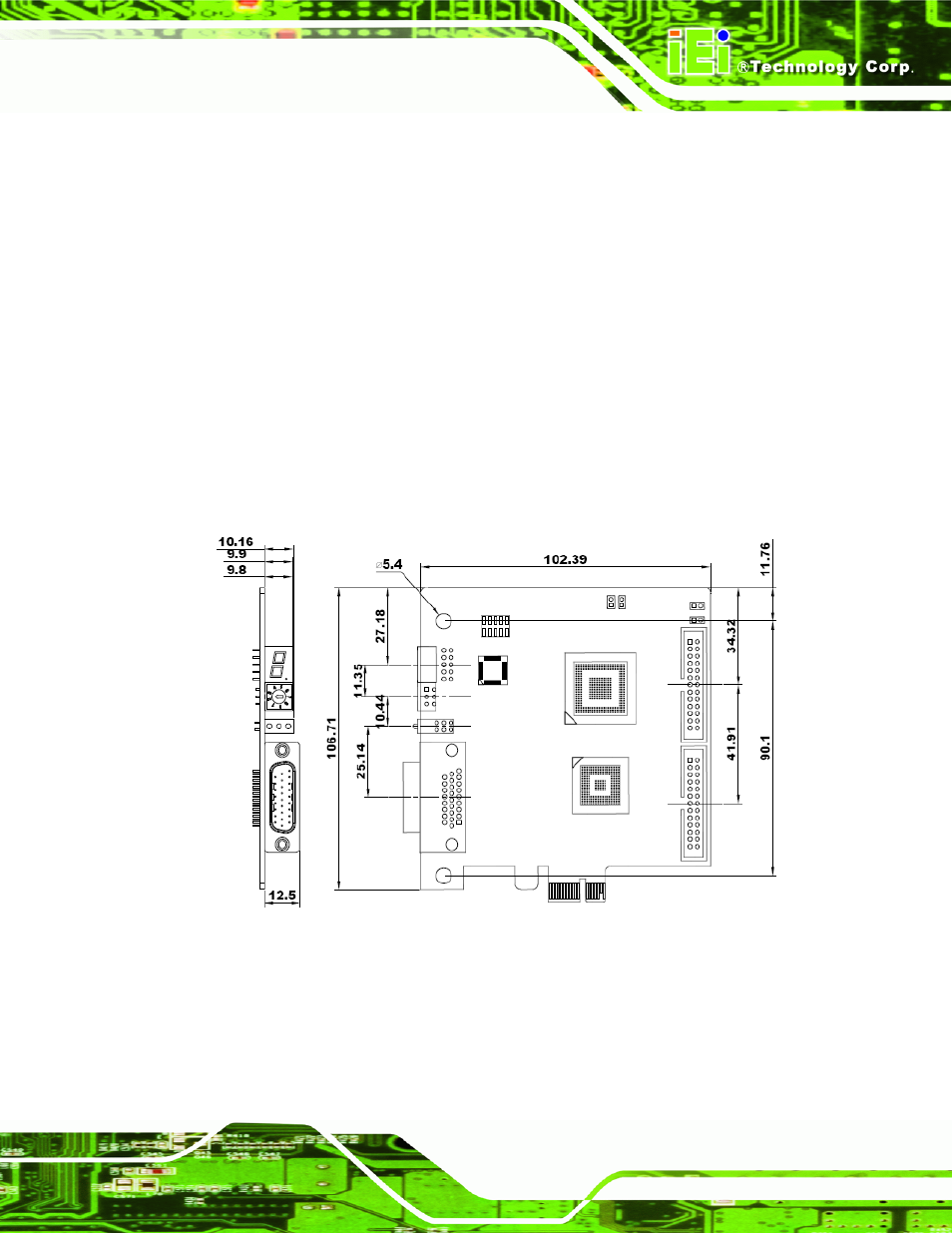

The dimensions are shown in Figure 2-1: IVCE-C608 Dimension Drawing.
Figure 2-1: IVCE-C608 Dimension Drawing
