IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 25
5.5.4 Install the GPIO Card (Optional)
The IVCME-C604 supports 8-bit GPIO (4-bit input and 4-bit output) via an optional GPIO
card. To install the GPIO card, please follow the instructions below.
Step 1:
Locate the GPIO connector on the IVCME-C604 video capture card (see
Step 2:
Align the cable connector from the GPIO cable with the GPIO connector on the
video capture card.

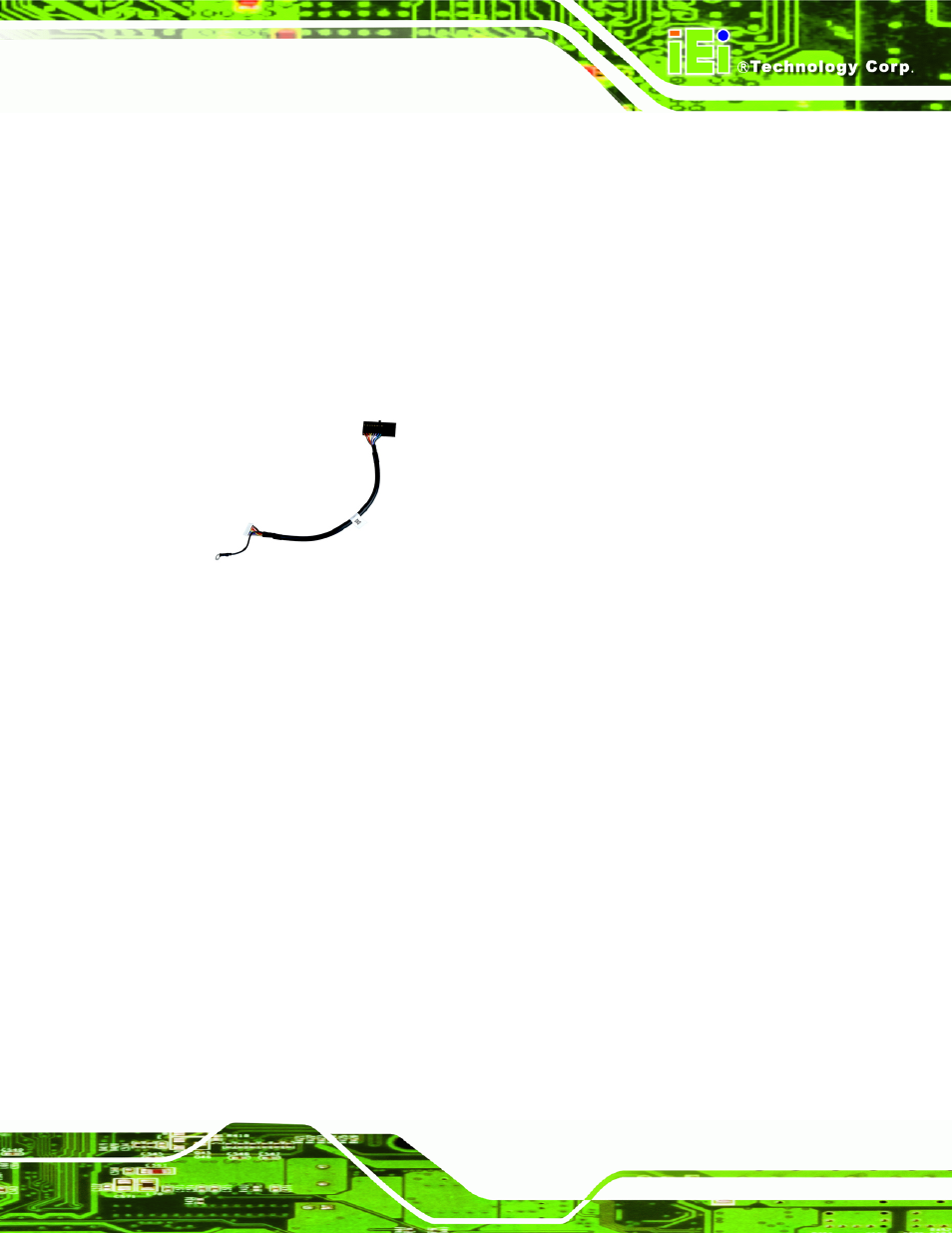

Figure 5-10: GPIO Cable for IVCME-C604
Step 3:
Push the cable connector onto the video capture card GPIO connector making
sure the pins are correctly aligned.
Step 4:
Next, connect the GPIO cable connector to GPIO connector on the GPIO card
(CN6). Please refer to Section 5.4.4.1 for the GPIO card pinouts.
Step 0:
