IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 13
1.2 Overview Photo
The IVCE-C608/IVCE-C604/IVCME-C604 video capture cards have a wide variety of
peripheral interface connectors. The following sections give an overview of each model.
1.2.1 IVCE-C608 Overview
The IVCE-C608 comes with one Conexant CX25853 video capture controller, two GPIO
connectors, one rotary switch, LED indicators and one DB-26 video/audio connector. A
PCIe edge connector on the bottom of the capture card enables the IVCE-C608 to
interface with a motherboard or CPU card. An overview can be seen in Figure 1-2:

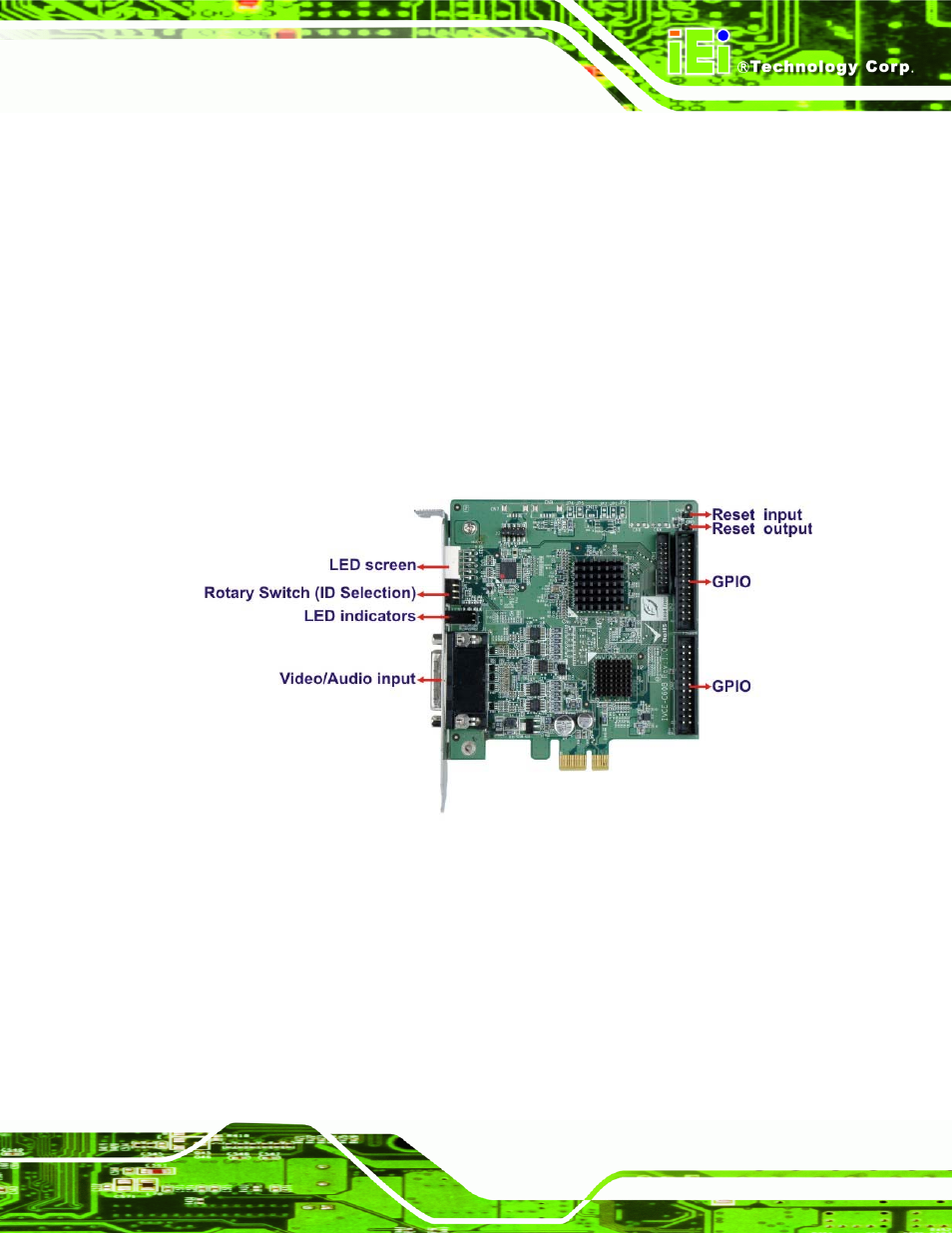

Figure 1-2: IVCE-C608 Overview
