4 install the gpio card (optional), Figure 5-2: cascade reset connection – IEI Integration IVCME-C604 User Manual
Page 45
IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 17
Step 4:
Repeat
Step 3
to connect multiple video capture cards in a system. Up to 16
cards can be added in a system.
Step 5:
Use a reset cable to connect the reset output connector on the last video card to
the reset connector on the system motherboard.
Step 0:

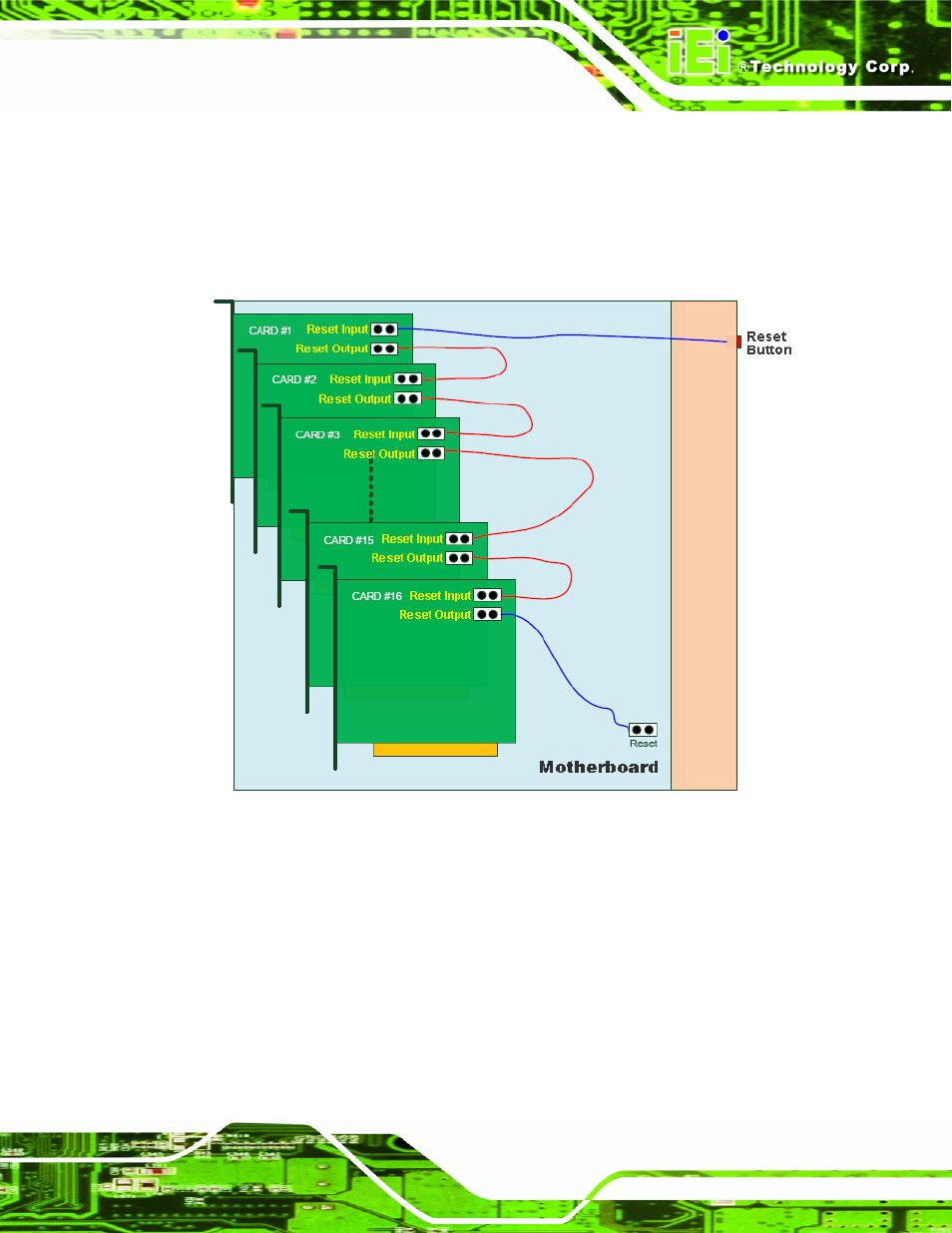

Figure 5-2: Cascade Reset Connection
5.4.4 Install the GPIO Card (Optional)
The IVCE-C608 and IVCE-C604 support 8-bit GPIO (4-bit input and 4-bit output) via an
optional GPIO card. To install the GPIO card, please follow the instructions below.
Step 1:
Locate the GPIO connector on the video capture card (see Section 1.2).
Step 2:
Align the cable connector from the GPIO cable with the GPIO connector on the
video capture card.
