IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 15
1.2.3 IVCME-C604 Overview
The IVCME-C604 comes with one Conexant CX25854 video capture controller, one GPIO
connector and one video/audio connector. The PCIe Mini interface of the capture card
enables the IVCME-C604 to interface with a motherboard. An overview can be seen in
Figure 1-4: IVCME-C604 Overview.

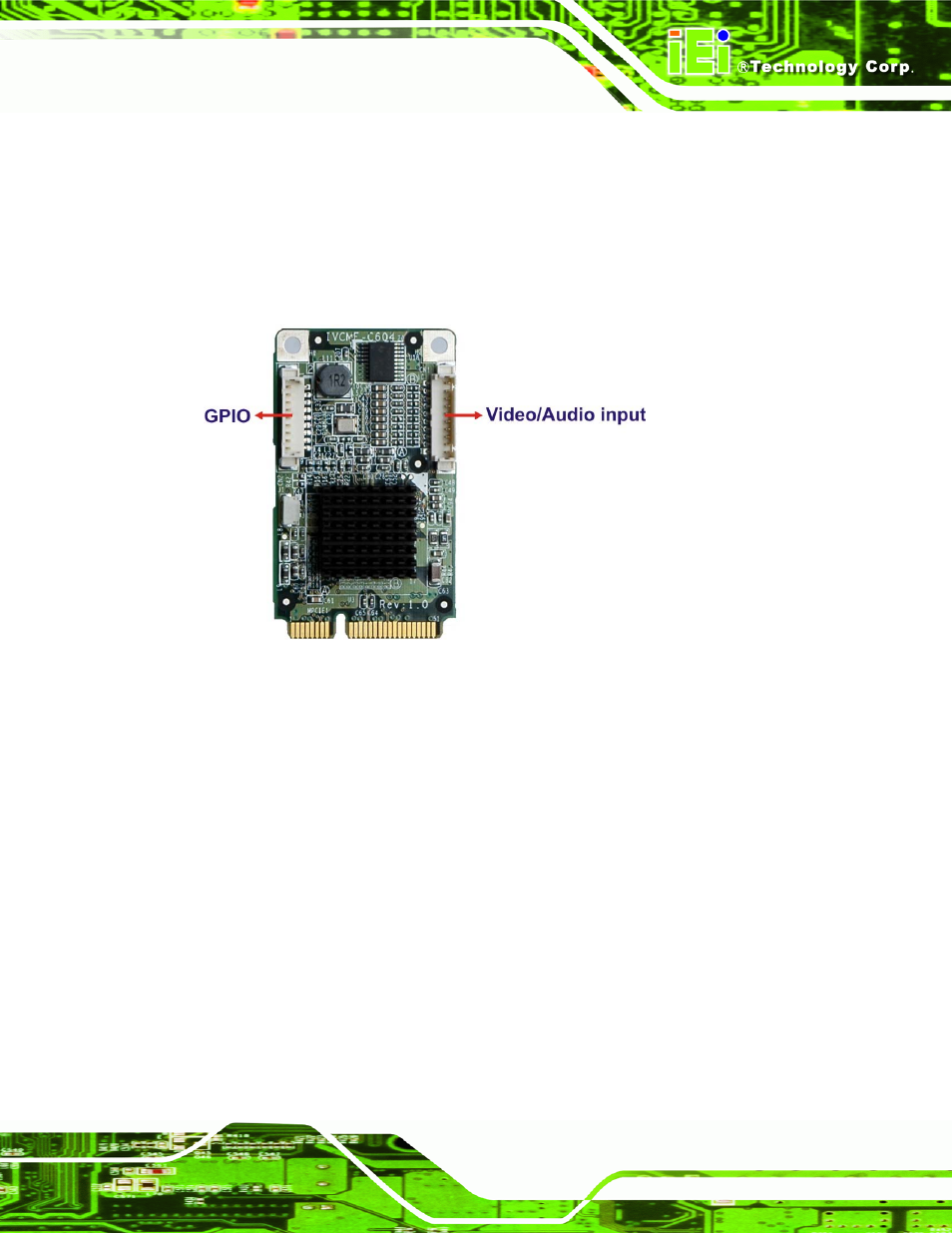

Figure 1-4: IVCME-C604 Overview
