IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 16
Step 2:
Gently insert the video capture card into the PCIe slot.
Step 3:
Push down gently on the video card to make sure it is firmly inserted into the
PCIe slot.

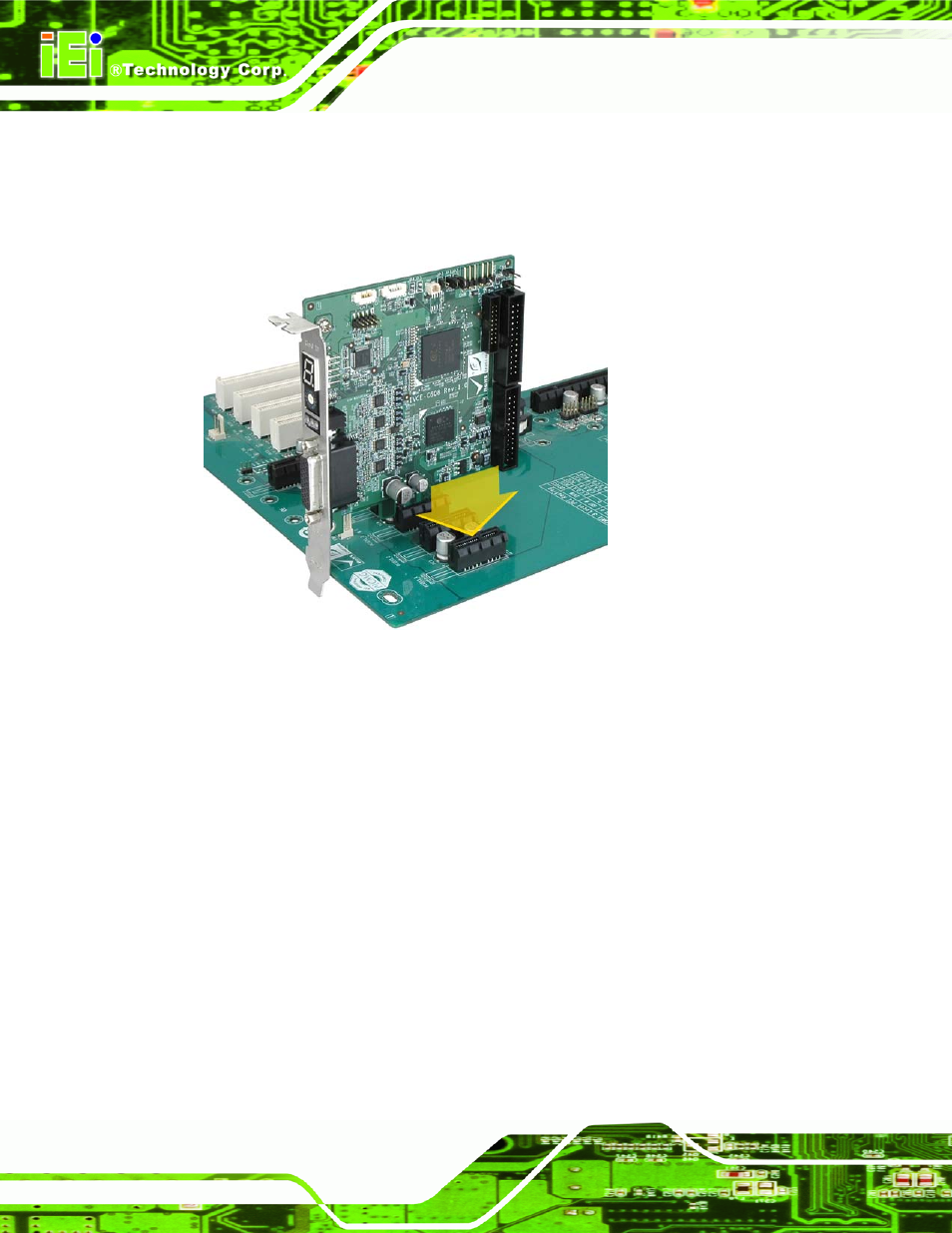

Figure 5-1: IVCE-C608 and IVCE-C604 Installation
Step 4:
Insert a retention screw through the top of the video capture card external
bracket into the chassis to secure the card to the chassis.
Step 0:
5.4.3 Install the Reset Cables (Optional)
The IVCE-C608 and IVCE-C604 are shipped with two reset cables to support cascade
reset. To install the reset cables, please follow the instructions below.
Step 1:
Locate the reset input connector on the first video capture card.
Step 2:
Connect the reset button from the chassis to the reset input connector on the
first video card.
Step 3:
Use a reset cable to connect the reset output connector on the first video card to
the reset input connector on the second video card.
