IVCE-C608/IVCE-C604/IVCME-C604 Capture Card
Page 40

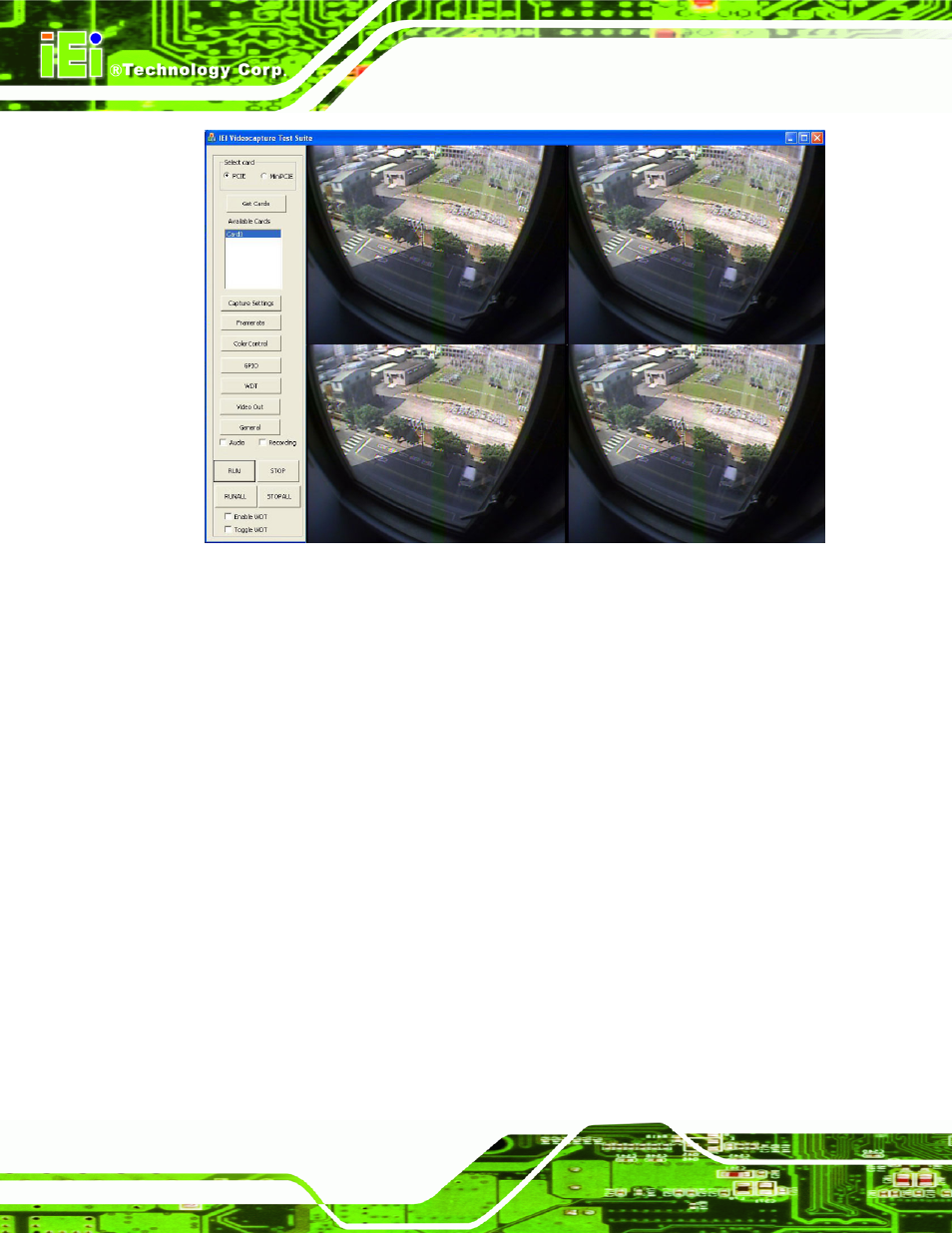

Figure 6-19: Capturing Video
6.3.2 Video Bypass (IVCE-C608 and IVCE-C604 Only)
To view the video input source on another display device in real time, please follow the
steps below.
Step 1:
Connect the video input source to the video input port of the IVCE-C608 or the
IVCE-C604.
Step 2:
Connect the BNC cable from the display device to the BNC output port of the
IVCE-C608 or the IVCE-C60.
Step 3:
Launch the IEI Video Capture Test Suite.
Step 4:
Select the capture card type: PCIE or MiniPCIE. Click the Get Cards button.
The capture cards connected to the system shows. Select one capture card
from the list.
