Nonsupported cabling example
Connecting an HP FC-AL hub to more than one other HP FC-AL hub is NOT a supported configuration.

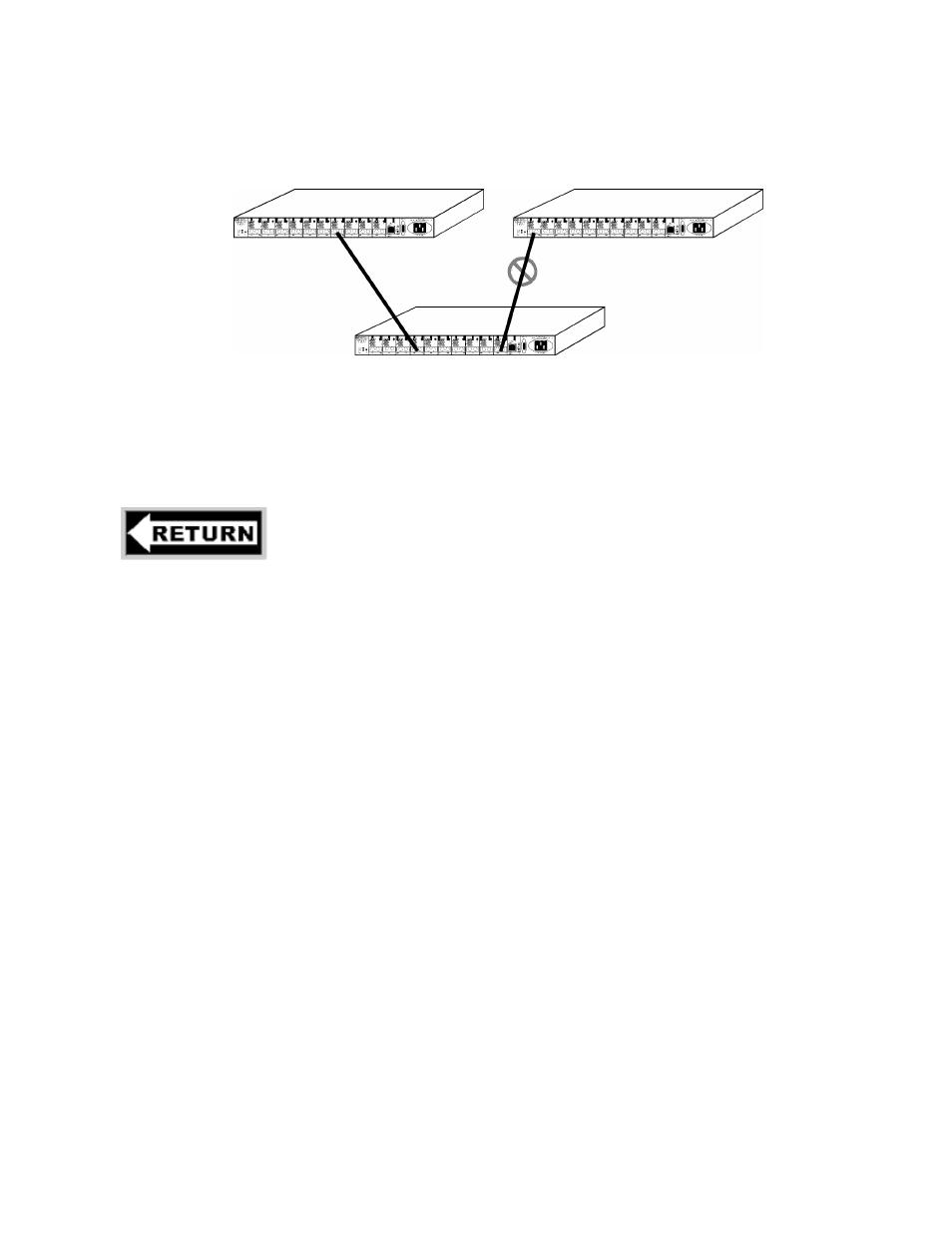

Figure 34. Non-supported cabling example: more than two HP FC-AL hubs connected
Do not attach power cords or power up the disk array or the cabinet at this time.
To part 4 of the HP NetServer Installation Guide.
