6
2 – HP NetServer Hardware Setup
Install the FC I/O Adapter
1. Install the FC I/O Adapter in the PCI Slot
Install the FC I/O adapter in an appropriate PCI slot as specified in the Configuration Guide for the HP NetServer.
Installation steps are shown for both vertical and horizontal installations. Install a FC I/O adapter in each HP NetServer
in the cluster.
a. Make sure the HP NetServer is powered down.
b. Remove the chassis cover.
c. Locate the correct PCI expansion slot in the system.
d. Remove the expansion slot cover. Save the slot cover screw.
e. Insert the FC I/O adapter into the slot. Push the adapter into the slot until it clicks into place (see figure 1).

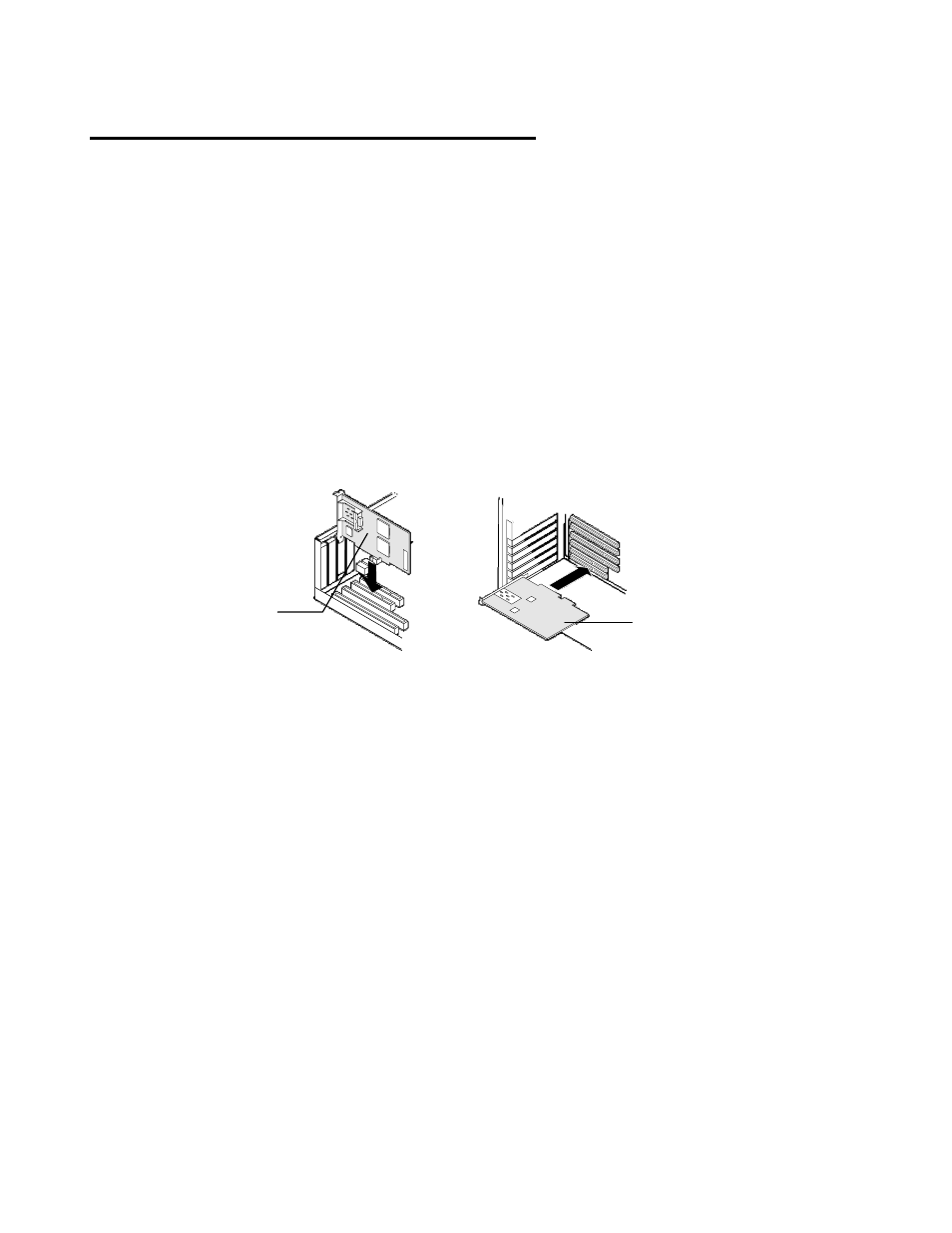

Figure 1. Installing the FC I/O adapter
f. Replace the slot cover screw.
Vertical
Installation
Horizontal
Installation
