8
3 – Shared Storage Hardware Setup
Install the HP FC-AL Hub
1. Unpack the HP FC-AL Hub
a. Unpack and inspect the HP FC-AL hub for any damage that may have occurred during shipment.
b. Save the boxes and packing materials in case there is damage or anything needs to be reshipped at a future date.
c. Make sure all items shown in figure 3 are present. Contact your sales representative if items are missing.

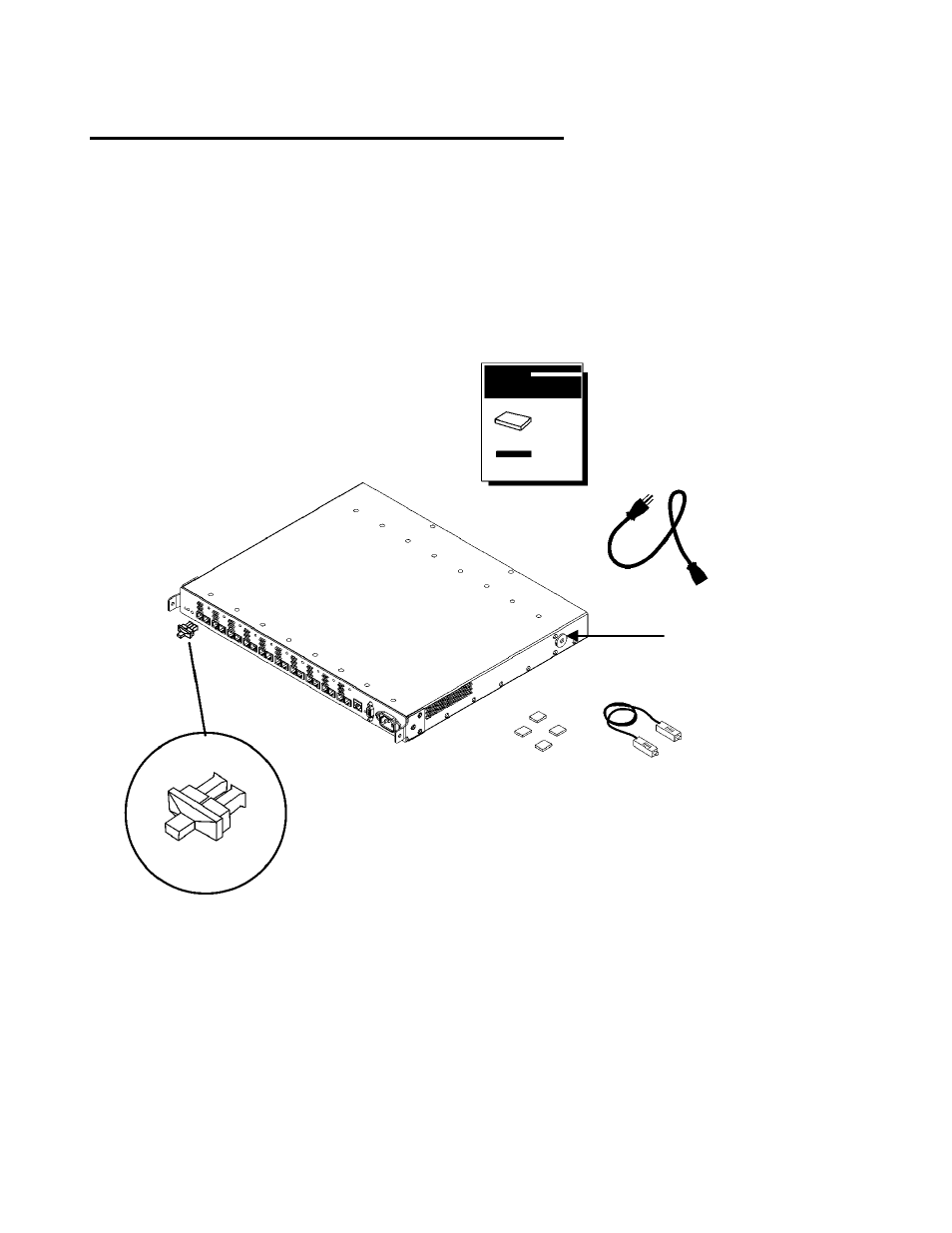

Figure 3. HP FC-AL hub product contents
Power cord
FC-AL hub
FC port covers
in each port
Mounting ear
bracket
Rubber feet
Nylon retainer
FC-AL short-wave loopback
cable
NOTE: The long-wave hub
includes an additional loopback
cable for the long-wave port
FC-AL Hub Service
and User Manual
