4. Install the HP Model 30/FC High Availability Disk Array in the Cabinet
a. Remove the fan pack from the back of the disk array.
– Grasp the fan pack handle.
– Press the lock/unlock button and hold it down.
– Carefully swing the fan pack down.
– Press the release latches in the direction shown.
– Pull the fan pack away from the chassis.
CAUTION Do not lift a fan pack by its handle as doing so can damage the fan pack.

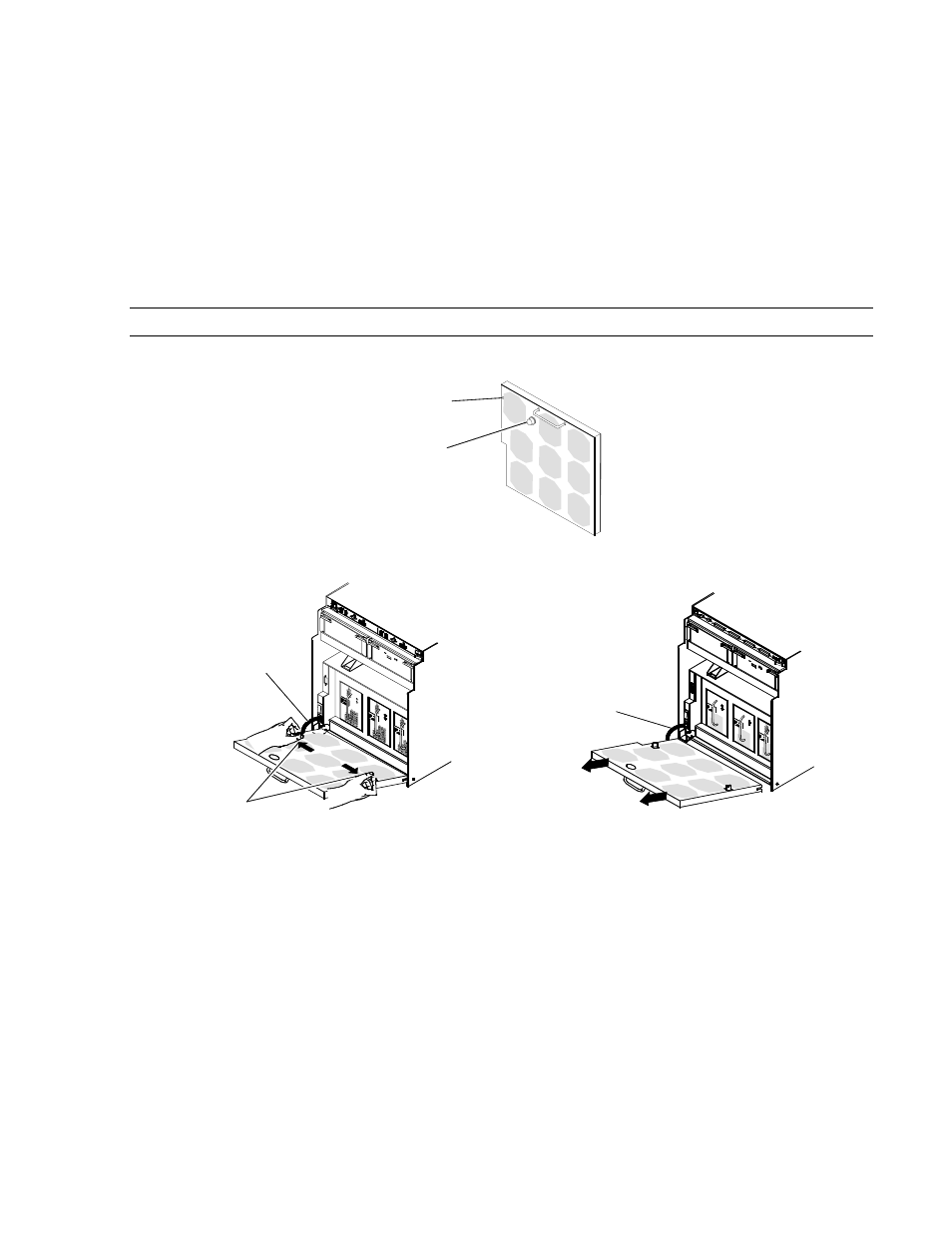

Figure 12. Removing the fan pack
Replace light
Lock/unlock button
(amber)
Back of
release
latches
storage system
ac power
cord
ac power
cord
Holding module at
slight angle, slide it
away from chassis.
Be careful not to pull
power cord out of
socket.
