HP NetServer Installation Guide 39
•
Use only for internal cluster communications
Choose this option if you are configuring an intra-cluster LAN adapter.
•
Use only for client access
Choose this option if you are configuring a client LAN adapter and System A and B reside on
different IP subnets.
NOTE In this example, the intra-cluster LAN is shown first with the Adapter Name and IP
Address already filled in. However, your configuration may display the Client LAN
first.

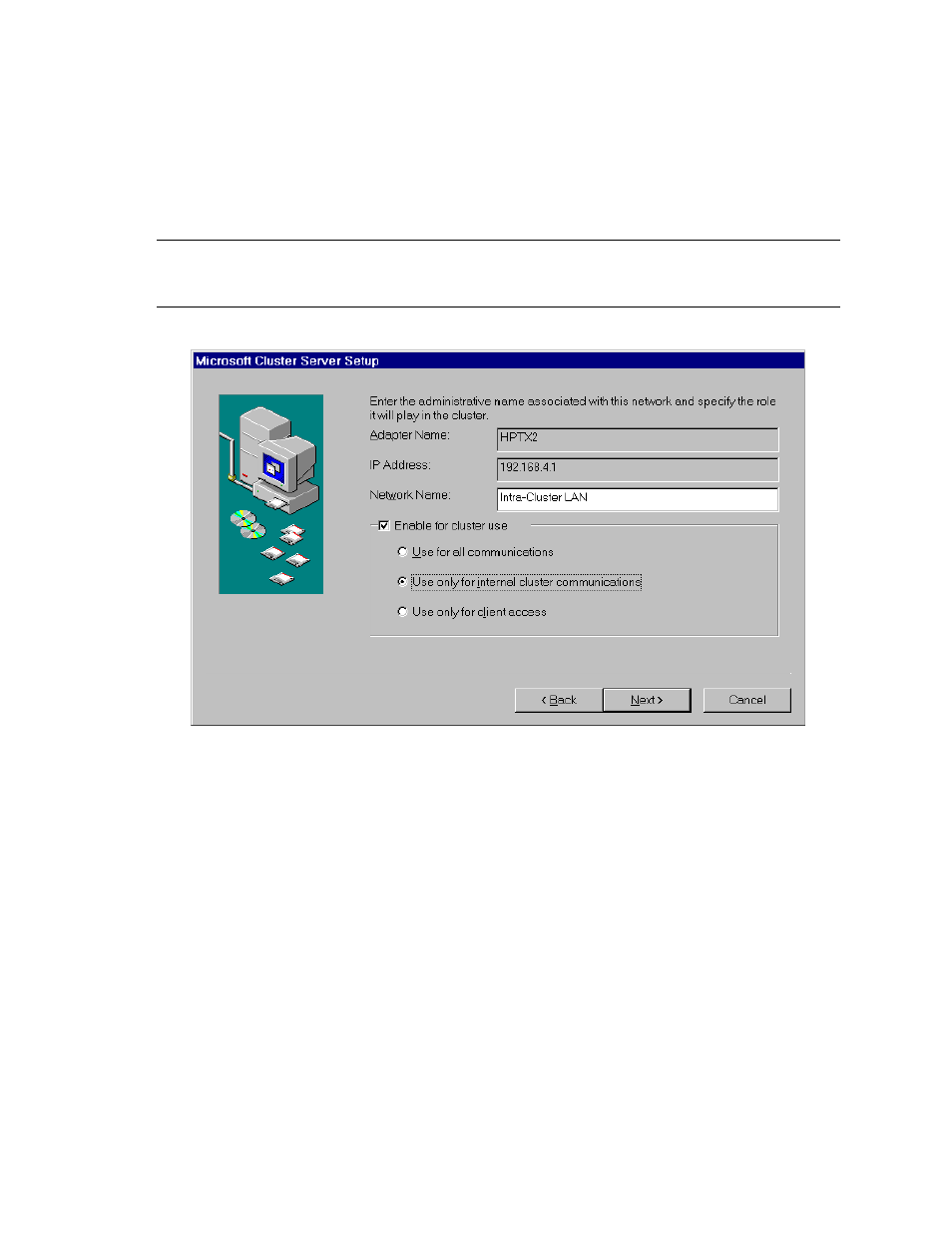

Microsoft Cluster Server Setup, Assigning a Network Name to the intra-cluster LAN
10. Repeat the previous step for each LAN adapter. After you have configured all LAN adapters, click
Next .
11. Setup lists your LAN adapters and asks you to prioritize them for internal communications between
nodes. Move the Intra-cluster LAN to the top of the list so it has the highest priority. See the example
dialog below.
