27
NOTE To protect hub ports, port covers should remain installed in all unused ports.
3. Connect Cascading HP FC-AL Hubs
If using cascading hubs, connect the two HP FC-AL hubs to each other.
• If connecting short-wave hubs, refer to figure 28.
• If connecting long-wave hubs, refer to figure 29.
– When installing long-wave cascading hubs (HP A4839A), make sure the long-wave port (Port 10) is connected only
to the long-wave port (Port 10) on the other long-wave hub.
4. Connect the FC I/O Adapter to the HP FC-AL Hub
a. Connect the HP FC-AL hub to the FC I/O adapter on each HP NetServer.

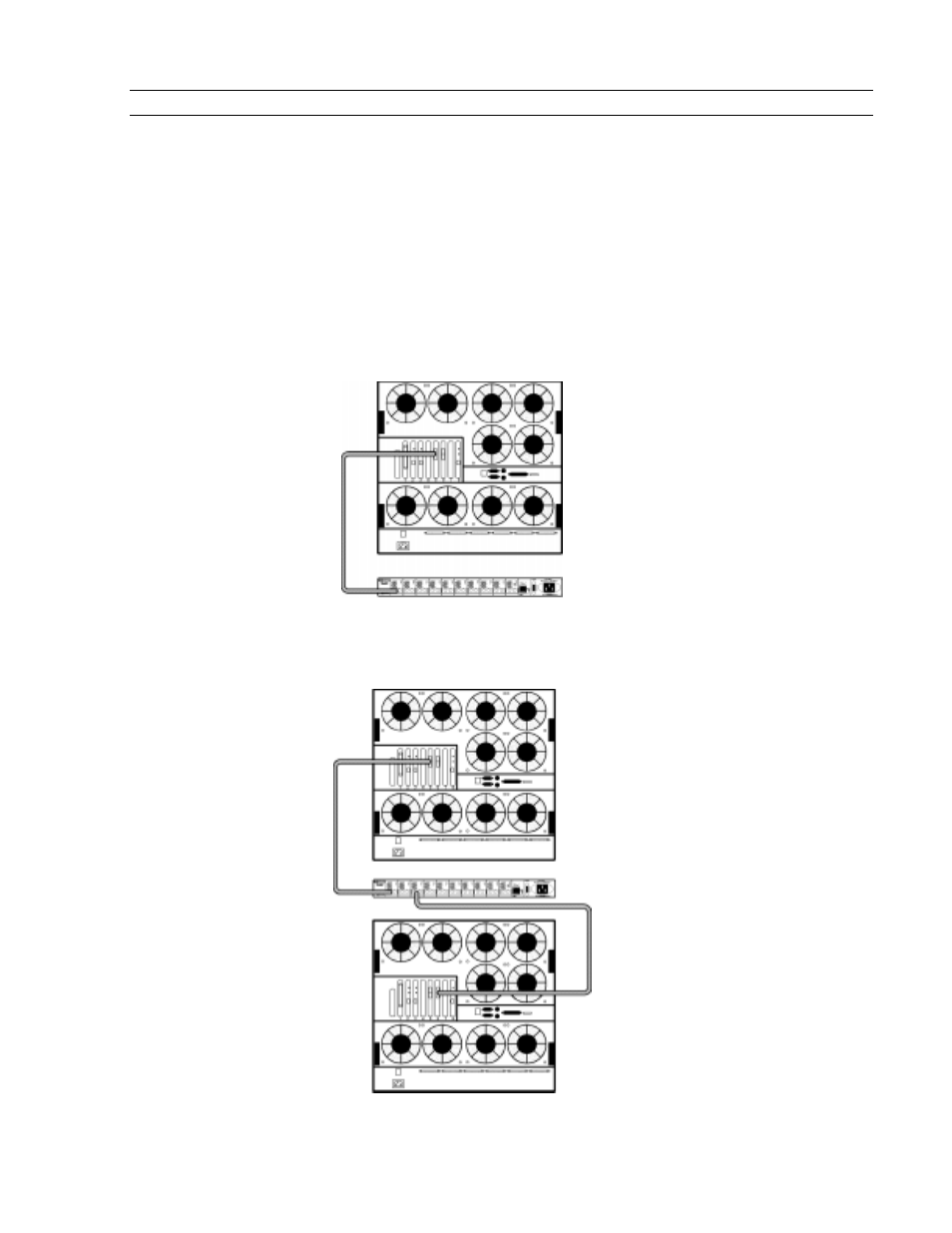

Figure 22. An example of an HP FC-AL hub connected to an HP NetServer LXr Pro8
Figure 23. An example of an HP FC-AL hub connected to two HP NetServer LXr Pro8s
