2 Installing and Replacing Hardware Parts in Your PC Workstation
Installing a Device in a Front Access Bay
40

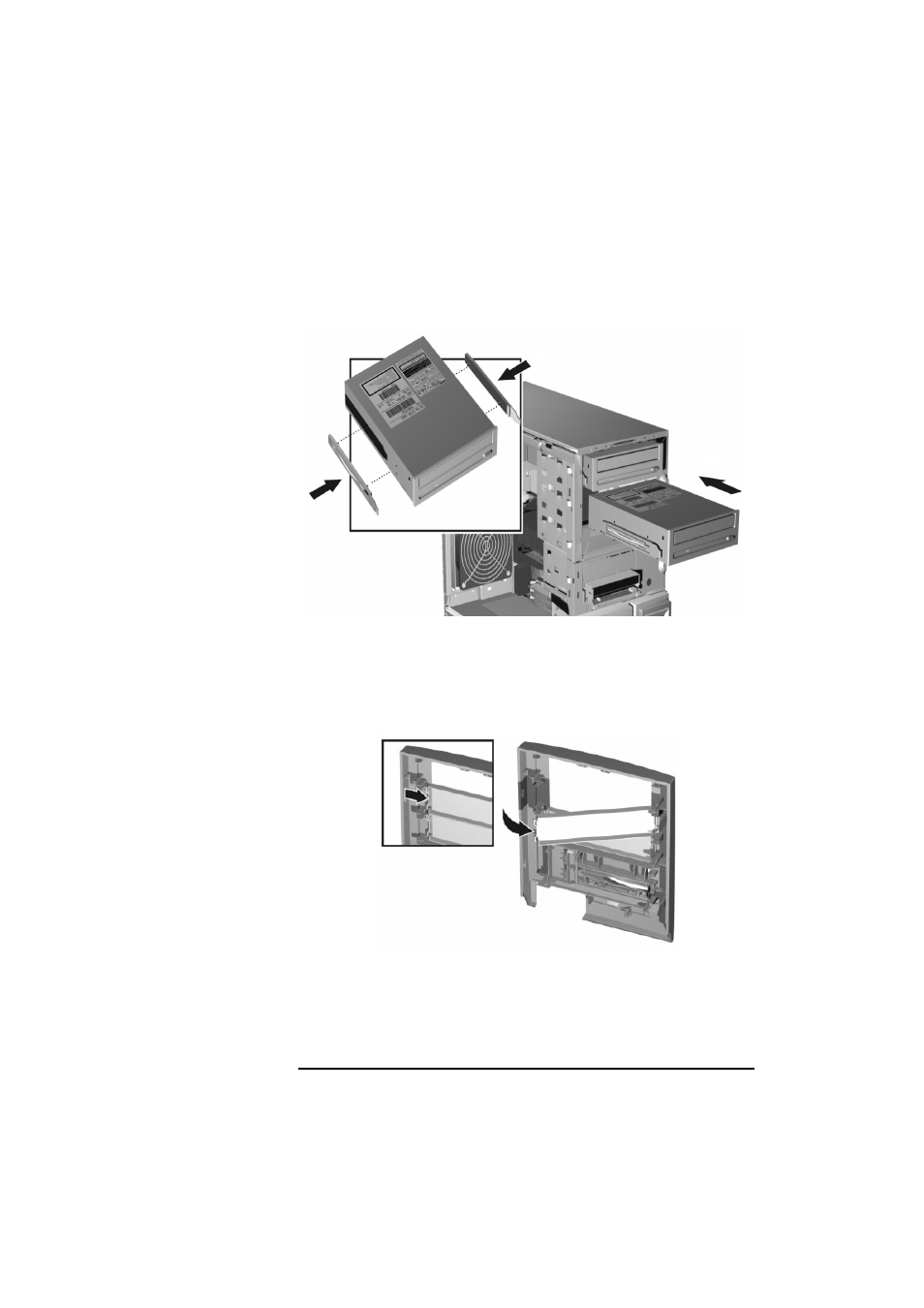

5 Align the guide rails on both sides of the drive with the internal shelf
guides and then slide the drive until it clicks into position.
6 Connect the power and data cables to the installed device. The
connectors are shaped to go in one way only. If you are not sure which
connector to use, refer to "Installing Mass Storage Devices", on page 32.
7 To allow access to the device, remove the plastic filler from the cover by
unclipping it on one side and pivoting it out. Store the plate in a safe
place.
8 Replace the front upper bezel and PC Workstation’s cover (refer to page
25). Reconnect all the power and telecommunications cables.
9 Turn to page 43 to complete the installation.
➍
➎
