Cables and Connectors (SCSI Models)
Which SCSI
Connectors to Use Models with a SCSI card can be connected to up to five internal SCSI
devices.
If all the internal SCSI connectors are used, additional devices can be added
outside the PC by connecting directly to the rear panel SCSI connector. The
external connector allows up to ten external devices to be connected. This
gives a maximum of 15 (internal + external) devices that can be connected.
NOTE The total length of the external SCSI cables should not exceed 3 meters
(approximately 10 feet).
Before Installing a
SCSI Hard Disk If you are installing an additional SCSI drive, you should assign an
unused SCSI ID to this accessory. SCSI IDs range from 0 to 15 for wide
16-bit SCSI.
SCSI ID 0 is used by the first SCSI hard disk drive and SCSI ID 7 is reserved
for the integrated SCSI controller (the default for narrow and wide SCSI
devices).

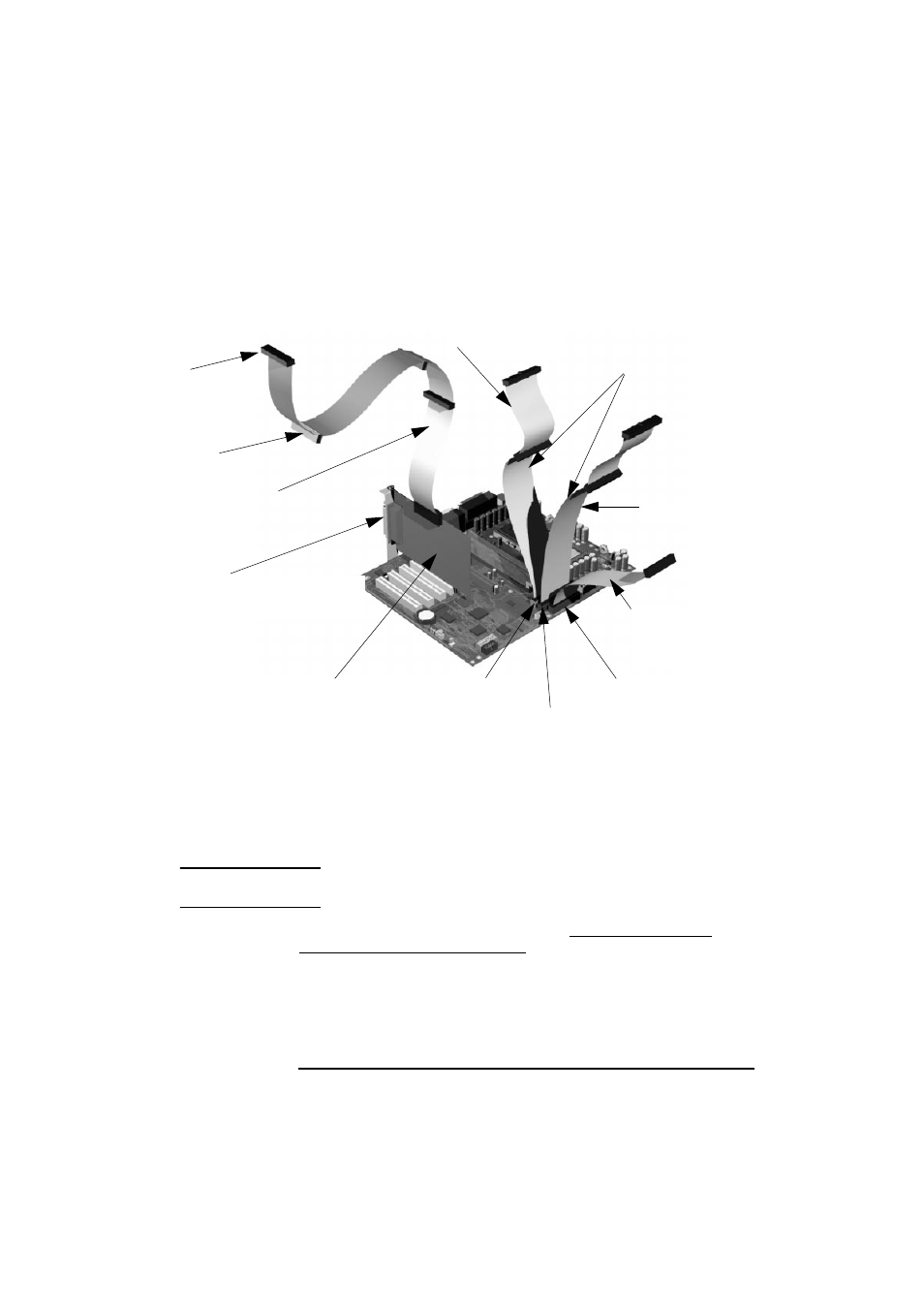

Primary IDE cable
Secondary IDE cable
16-bit Internal U160
68-pin SCSI connector
16-bit SCSI Terminator
fitted on cable
SCSI Card in PCI Slot
16-bit SCSI cable with
five 68-pin connectors
Two IDE data cables each
with two 40-pin connectors
for IDE Drives
Cable with one 34-pin
connector for
3.5-inch Floppy Disk Drive
Floppy Disk Drive Connector Primary IDE Connector
Secondary IDE Connector
External 68-pin SCSI connector (two screws)
accessible from the rear of the PC.
