Hardware options installation 70
o Extend the server from the rack (on page 21 ).
3. Remove the access panel (on page 21 ).
4. Remove the expansion slot cover (" Removing the expansion slot cover " on page 62 ).
5. Install the SAS controller (" Installing expansion boards " on page 63 ).
6. Disconnect the SATA cable from the hard drive backplane and from the system board.
7. Connect the SAS cable to the hard drive backplane and to the SAS controller.
8. Install the access panel (on page 22 ).
9. Do one of the following:
o Close or install the tower bezel, as needed.
o Slide the server back into the rack.
10. Power up the server (on page 20 ).
Dedicated iLO 2 port module option
To install the component:
1. Power down the server (on page 20 ).
2. Do one of the following:
o Open or remove the tower bezel, as needed (" Open or remove the tower bezel " on page 20 ).
o Extend the server from the rack (on page 21 ).
3. Remove the access panel (on page 21 ).

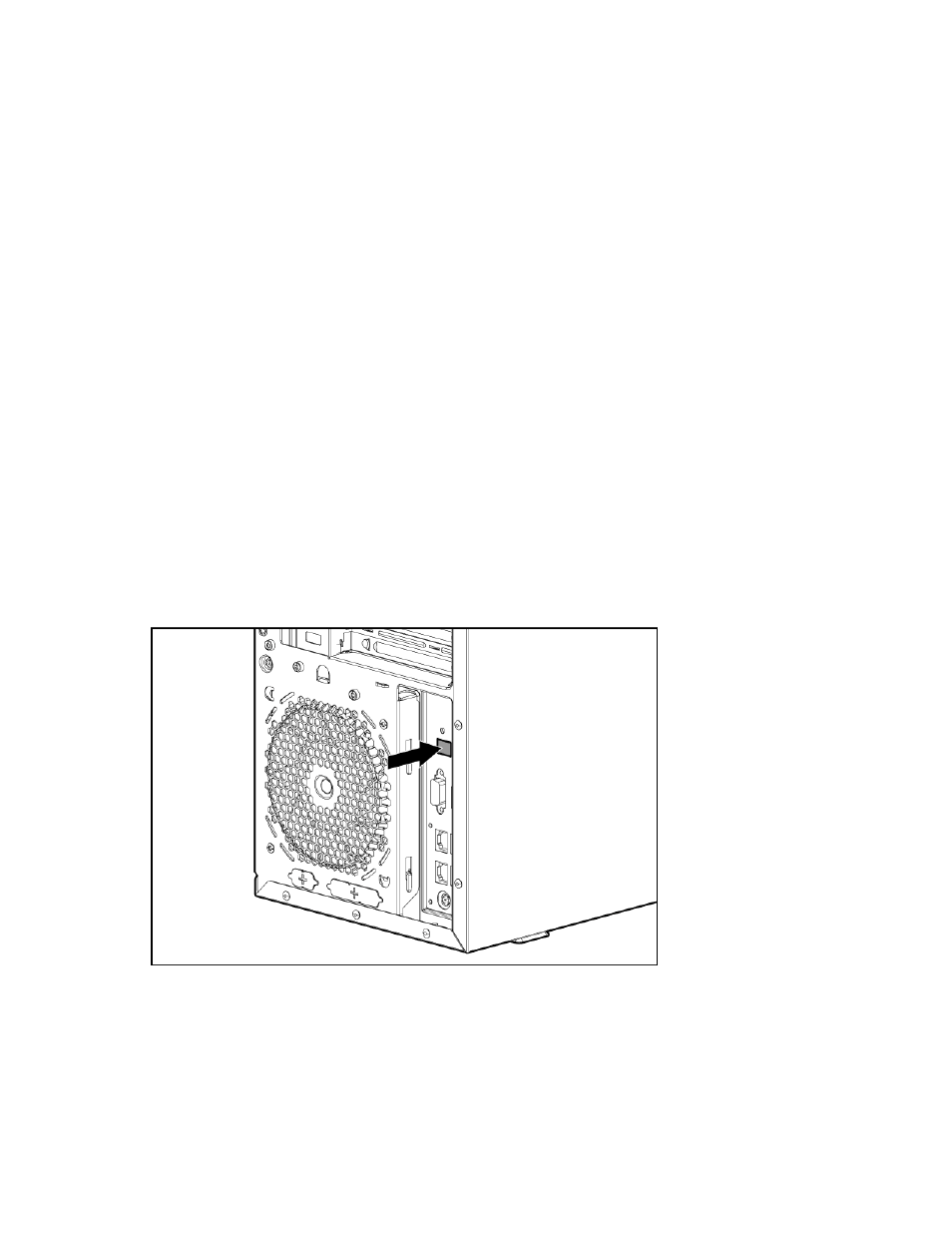

4. Using a Phillips screwdriver, remove the dedicated iLO 2 connector module blank.
