Sas or sata hard drive option – HP PROLIANT ML330 G6 User Manual
Page 50

Hardware options installation 50
7.

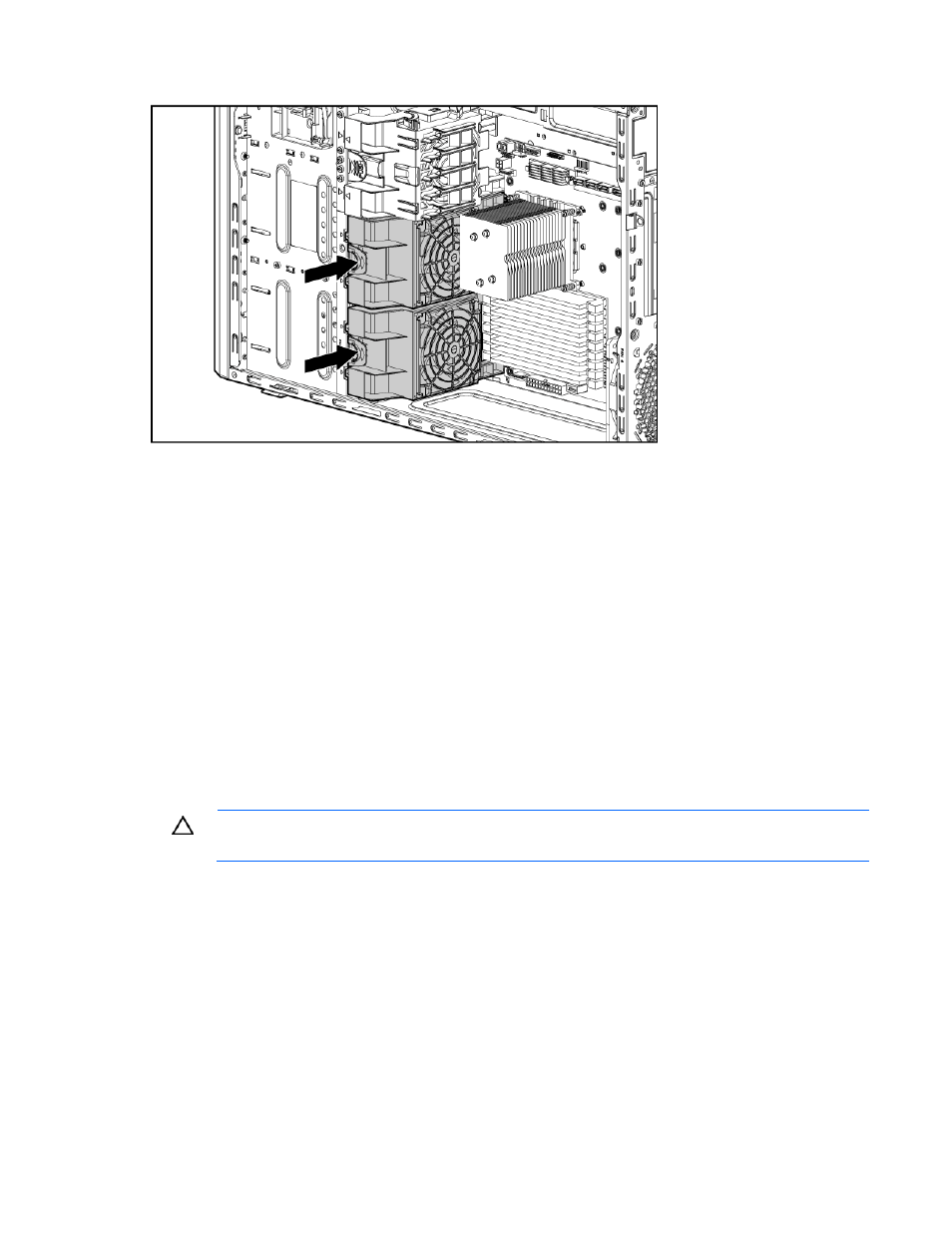

Install a fan from the option kit in fan bay 1.
8.
Locate the fan 1 connector ("
).
9.
Remove the jumper from the fan 1 connector.
10.
Connect the fan cables to the system board ("
a.
Fan 1 cable to fan 1 connector
b.
Fan 2 cable to fan 2 connector
11.
Install the air baffle.
12.
Install the access panel (on page
).
13.
Do one of the following:
o
Close or install the tower bezel, as needed.
o
Slide the server back into the rack.
14.
Power up the server (on page
SAS or SATA hard drive option
CAUTION:
For proper cooling, do not operate the server without the access panel, baffles,
expansion slot covers, hard drives, or blanks installed.
